DRAKO 250T
Product information
- 8-strand steel wire rope with steel core
- very low D/d ratio of up to 8 mm in diameter
- required drive torque is greatly reduced
- cost saving drives possible
- space saving in indirect hydraulic elevators thanks to very small pulley
- Features: This rope is successfully used in diameters up to 13mm as a governor rope.

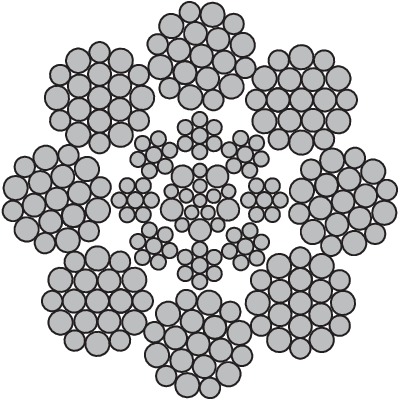

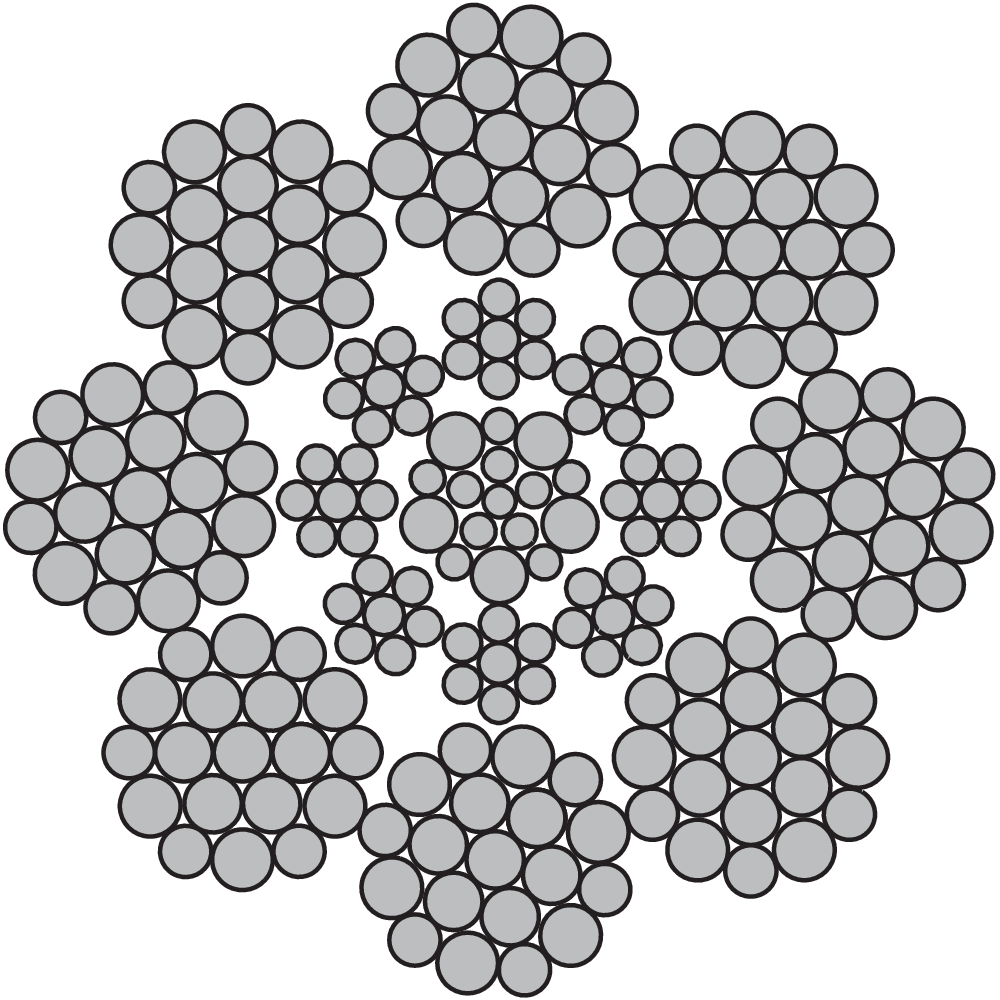

- Rope construction: 8x19W-IWRC
- Marking: According to standard
- Standard: EN 12385-5
-
Elevator
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Bright, Galvanized and is manufactured with a tensile strength of 1570, 1770 N/mm².A bright (uncoated) finish has no corrosion protection and is therefore primarily used in dry, indoor, or controlled environments. Bright wire ropes are generally selected for cost reasons. The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 8 strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
