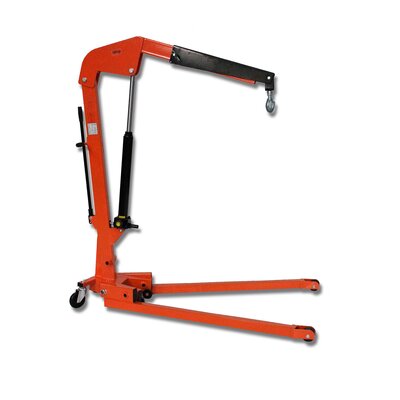

Hydraulic lifting, capacity from 500 kg to 2 tons.

3 positions telescopic arm, fast-lifting pump, double action

Dead man safety system, safety valve against overload

Great maneuverability thanks to 6 rotating wheels, and 360° rotating hook

Foldable, easily stored after use, practical, compact and robust, with hard chromium plating for jack and pump.

Complies with Directive 2006/42 / EC

Select a row from the table below, then click the add to quote button

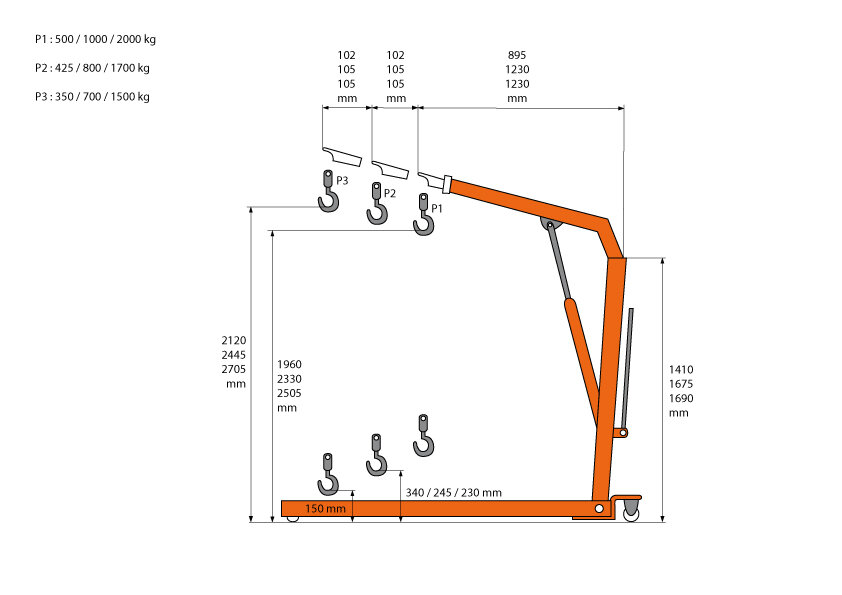

Part Code Capacity
kg
A
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
Weight
kg
CAD
13.29SC500 500-425-350 1,410 895 102 2,120 1,960 150 340 75
13.29SC1000 1000-800-700 1,675 1,230 150 2,445 2,330 - 245 115
13.29SC2000 2000-1700-1500 1,690 1,290 150 2,705 2,505 - 230 165

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
