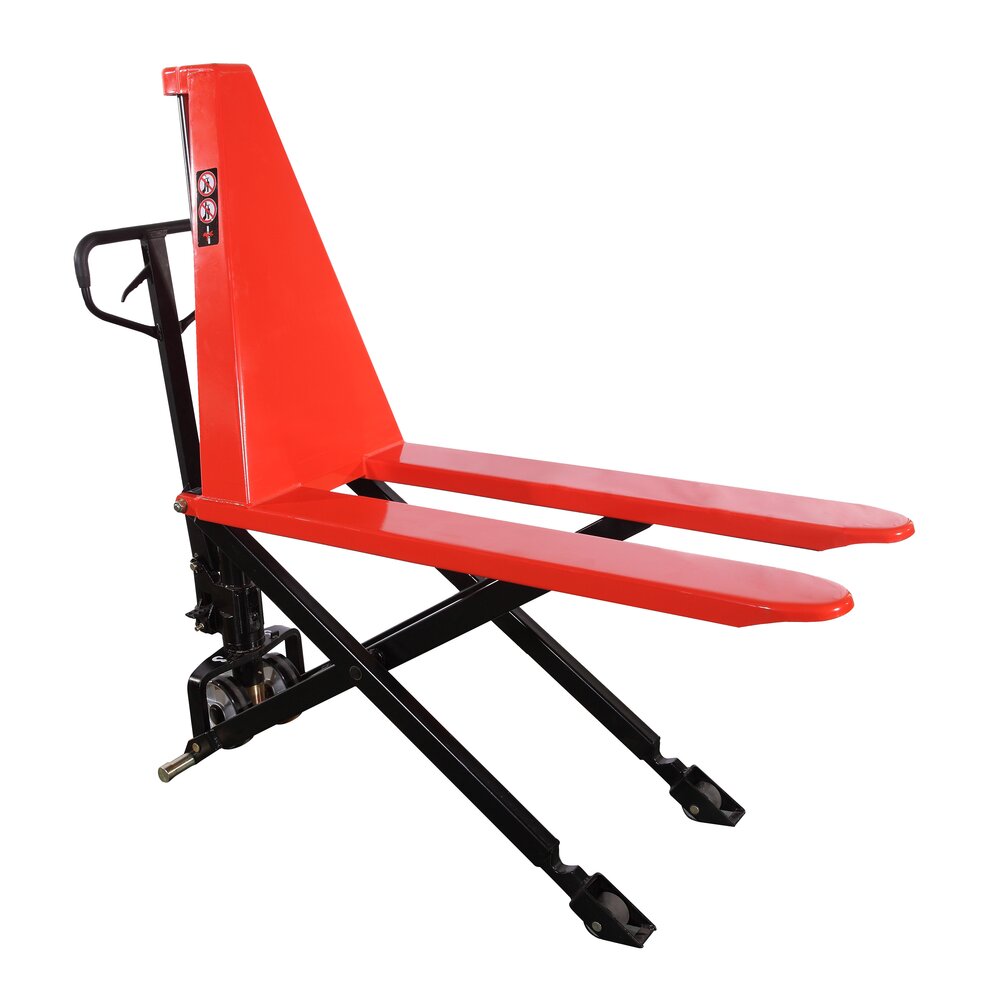

- Practical, robust and effective
- Ergonomic drawbar, low chassis, double jack, high visibility
Manual model:
- 2 lifting speeds
- Equipped with 2 lateral stabilizers blocking the pallet truck over 400 mm elevation allowing excellent stability
- Equipped with stabilizing scissor head
- Practical, robust and effective
- Ergonomic drawbar, low chassis, double jack, high visibility
Manual model:
- 2 lifting speeds
- Equipped with 2 lateral stabilizers blocking the pallet truck over 400 mm elevation allowing excellent stability
- Equipped with stabilizing scissor heads
Electric model:
- Maintenance free battery for a better ease of use
- Separated charger
in accordance with Directive 2006/42 / EC
Please fill in the following fields so that we can contact you as soon as possible.
Specify in the “Message” field the product or service you are looking for, and any other information that may help us find the best solution for you.
| Model | Manual | Electric | ||
| Reference | TCM10 | TCM15 | TCE10 | TCE15 |
| Capacity (Kg) | 1000 | 1500 | 1000 | 1500 |
| Centre of gravity (mm) | 600 | 600 | 600 | 600 |
| Height (mm) | 85 | 85 | 85 | 85 |
| Lifting Height (mm) | 800 | 800 | 800 | 800 |
| Fork length (mm) | 1140 | 1100 | 1140 | 1100 |
| External fork widt (mm)h | 520 / 680 | 520 / 380 | 520 / 680 | 520 / 380 |
| Wheels diameter (mm) | ø150 x 40 | ø150 x 40 | ø150 x 40 | ø150 x 40 |
| Roller dimension (mm) | ø75 x 50 | ø75 x 50 | ø75 x 50 | ø75 x 50 |
| Weight (kg) | 105 / 112 | 118 / 125 | 105 / 112 | 118 / 125 |
| Battery | - | - | 70Ah/12V | 70Ah/12V |
| Battery charger | - | - | 10Ah/12V | 10Ah/12V |
