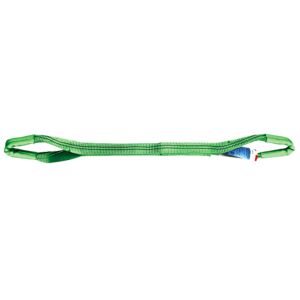

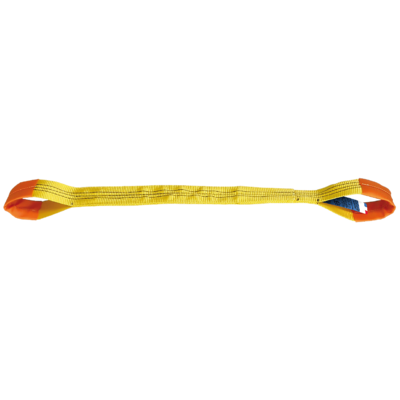

General: Flat webbing sling with simple eye – B type – Category 1
Identification : flat webbing sling in woven webbing
Type : Double ply (B type)
Configuration : Flexible sling consisting of a single element in sewn webbing
Endings : Simple eyes, category 1.
Traceability : High resisting blue pvc label sewn on the sling.
Instructions of use : Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings. DO NOT USE DAMAGED SLINGS.
Storage : Store in a cool, dry and protected from sunlight area.
Maintenance : Never dry sling near a fire or any source of heat.



Design: Textile sleeve, 100% polyester, sewn around each eye to reinforce and protect its inner surface
Stretch with working Load: for textile slings

Length Tolerance: A





  • Material: 100% polyester multifilament fibres of high tenacity
  • Marking: According to standard, Manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions.
  • Temperature range: From -40°C to +100°C.
  • Standard: EN 1492-1
Product Image 1

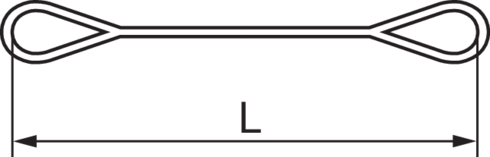

length_90_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL CAD
12.30B251 0.5
12.30B301 1
12.30B501 1.5
12.30B601 2
12.30B751 2.5
12.30B901 3
12.30B1201 4
12.30B1501 5
12.30B1801 6
12.30B2401 8
12.30B3001 10
M = form factor for symmetric loading. Handling tolerance for slings or parts of slings indicated as vertical = 6º.
*No standardized values
