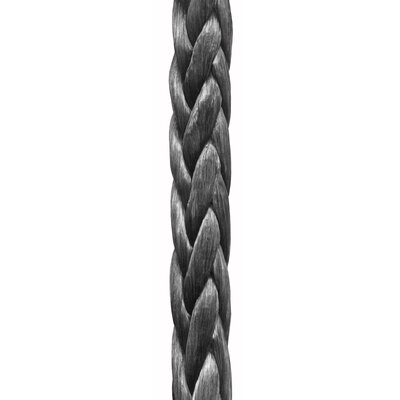

Composed of HMWPE fibres (High Molecular Weight Polyethylene) and protected by a unique self-impregnation that increases abrasion resistance, D-Tech synthetic rope has a very high breaking load resistance.

The 12 strands construction prevents kinking, it is stronger than a steel wire rope of the same weight, which gives it significant advantages in many applications (see main uses below).

Features:

  • Low elongation
  • Low operating cost
  • Flexible : do not make knots
  • Safe and easy to handle
  • Easy to splice
  • Rotation resistant

Specific gravity : 0,98

Melting point : 150° C

Elongation in % of the breaking load :

  • 25 % … 0,9 %
  • 50 % … 1,6 %

Main uses:

  • Mooring lines
  • Anchor lines
  • Winch
  • Towing and hauling lines
  • Material: HMWPE fibres
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Breaking load
kN
Weight
kg
12.12DTH060BKSPLP 6 36,7 2,3
12.12DTH080BKSPLP 8 65,3 4
12.12DTH100BKSPLP 10 102 6,1
12.12DTH120BKSPLP 12 147 8,7
12.12DTH140BKSPLP 14 200 11,7
12.12DTH160BKSPLP 16 260 15,1
12.12DTH180BKSPLP 18 310 19
12.12DTH200BKSPLP 20 380 23,2
12.12DTH220BKSPLP 22 450 28,1
12.12DTH240BKSPLP 24 520 33,1
12.12DTH260BKSPLP 26 600 38,4
12.12DTH280BKSPLP 28 680 44,5
12.12DTH300BKSPLP 30 770 50,6
12.12DTH320BKSPLP 32 870 57,5
12.12DTH340BKSPLP 34 960 64,8
12.12DTH360BKSPLP 36 1 040 72
12.12DTH380BKSPLP 38 1 160 79,8
12.12DTH400BKSPLP 40 1 260 88,1
12.12DTH440BKSPLP 44 1 460 106
12.12DTH480BKSPLP 48 1 700 125
12.12DTH520BKSPLP 52 1 970 146
12.12DTH560BKSPLP 56 2 260 169
12.12DTH600BKSPLP 60 2 530 193
12.12DTH640BKSPLP 64 2 840 220
12.12DTH680BKSPLP 68 3 170 248
12.12DTH720BKSPLP 72 3 520 278
12.12DTH760BKSPLP 76 3 890 309
12.12DTH800BKSPLP 80 4 300 343
12.12DTH880BKSPLP 88 5 200 417
12.12DTH960BKSPLP 96 6 180 497
