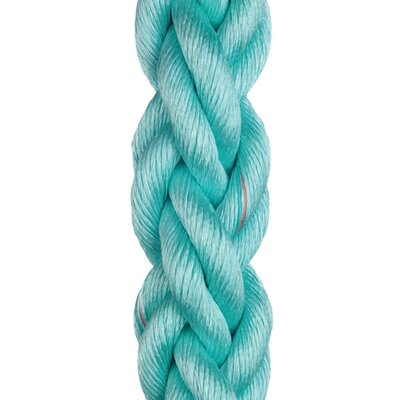

MOVLINE PLUS ropes are made of composite fiber extruded on a custom-built extrusion process. This extremely strong and high tenacity bi-polymer fibers, combined with a round plait construction, give this rope a good resistance to intensive use.

Its gripping capability is enhanced by the outer fuzzy surface developed in use, also protecting the inner fibers against abrasion

Available in 8 and 12 strands.

Main characteristics :

  • High resistance to abrasion and intensive use
  • High strength floating line
  • No water absorption
  • Good UV resistance
  • Flexible, non-kinking and non-rotating construction



Specific gravity : 0,94

Fusion point: 165° C

Elongation in % of the breaking load :

  • 25 % … 2,8 % (6,0 for 3-4 strands)
  • 50 % … 5,5 % (11,5 for 3-4 strands)

Main uses:

  • Anchoring and mooring lines
  • Tug and Towing lines
  • Material: Mixed Polyolefin
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Breaking load
kN
Weight
kg/100m
12.08PET240IBSPLP 24 104 26,1
12.08PET260IBSPLP 26 121 30,6
12.08PET280IBSPLP 28 139 35,5
12.08PET300IBSPLP 30 158 40,8
12.08PET320IBSPLP 32 179 46,4
12.08PET360IBSPLP 36 224 58,7
12.08PET400IBSPLP 40 274 72,5
12.08PET440IBSPLP 44 327 87,7
12.08PET480IBSPLP 48 385 104
12.08PET520IBSPLP 52 448 122
12.08PET560IBSPLP 56 514 142
12.08PET600IBSPLP 60 583 163
12.08PET640IBSPLP 64 657 186
12.08PET680IBSPLP 68 737 210
12.08PET720IBSPLP 72 820 235
12.08PET800IBSPLP 80 995 290
12.08PET880IBSPLP 88 1 190 351
12.08PET960IBSPLP 96 1 400 417
12.08PETC04IBSPLP 104 1 620 490
12.08PETC12IBSPLP 112 1 880 568
12.08PETC20IBSPLP 120 2 130 652
12.08PETC28IBSPLP 128 2 420 742
12.08PETC36IBSPLP 136 2 720 838

Breaking load values stated shall be reduced by 10% in the case of a rope with eye-spliced terminations.
