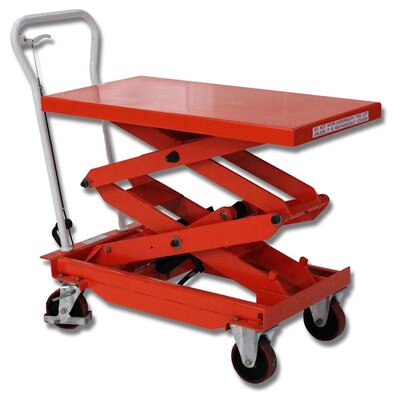

- High quality industrial equipment, steel table, epoxy paint

- 2 fixed wheels, 2 rotating wheels with brake, lifting height up to 1618mm

Manual table: Pedal controlled lifting table, proportional lowering by joystick located at the top of the push bar.

Semi-electric table: 700W engine, lifting by 12V / 75Ah electric battery

In accordance with Directive 2006/42 / EC

Select a row from the table below, then click the add to quote button
Part Code Design Capacity
kg
CAD
158755 Manual 1,000
167329 Manual 1,000
161174 Manual 150
151644 Manual 250
16.75BS30D Manual 300
169468 Manual 500
150400 Manual 500
162765 Manual 500
16.75BS50LA Manual 500
158055 Manual 750
150895 Manual 800
16.75ES100 Partially-electric 1,000
16.75ES100L Partially-electric 1,000
16.75ES30 Partially-electric 300
148903 Partially-electric 300
166515 Partially-electric 500
16.75ES50D Partially-electric 500
16.75ES50LA Partially-electric 500
16.75ES50LB Partially-electric 500
166517 Partially-electric 750
16.75ES80D Partially-electric 800

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Model Capacity (Kg) Table dimension  L x l
(mm)
Lifting height min/max
(mm)

Drawbar height              (mm)

Wheels diameter
(mm)

External dimensions             L x l (mm)

Lifting/lowering time          (s) Weight (Kg)
Manual BS15 150 700x450 265/755 1000 100 450x950   41
BS25 250 830x500 330/910 1100 125 500x1010   78
BS50 500 1010x520 435/1000 1130 150 520x1185   118
BS75 750 1010x520 442/1000 1130 150 520x1260   120
BS100 1000 1010x520 445/950 1130 150 520x1260   137
BS30D 300 1010x520 435/1585 1130 150 520x1260   150
BS50D 500 1010x520 440/1575 1130 150 520x1260   168
BS80D 800 1010x520 470/1410 1130 150 520x1275   165
BS50LA 500 1525x620 400/1100 1130 150 620x1780   175
BS50LB 500 1200x800 370/1190 1030 160 800x1390   160
BS100L 1000 1200x800 425/1225 1080 200 800x1390   163
Partially-electric ES30 300 1010x520 450/950 1185   520x1185 15/06 140
ES50 500 1010x520 450/950 1185   520x1185 15/06 148
ES75 750 1010x520 480/950 1185   520x1260 15/06 154
ES100 1000 1010x520 495/1600 1185   520x1260 15/06 169
ES30D 300 1010x520 495/1618 1185   520x1260 15/06 183
ES50D 500 1010x520 510/1460 1185   520x1260 15/06 198
ES80D 800 1010x520 440/1150 1185   520x1260 15/06 176
ES50LA 500 1525x620 430/1220 1185   620x1780 15/06 215
ES50LB 500 1200x800 430/1220 1185   1200x800 15/06 220
ES100L 1000 1200x800 130/1220 1185   1200x800 15/06 225
