Wireless loadshackle with low headroom and a load-centering bobbin.
Battery type/life: Loadcell 4 x AA Alkaline/Load cell 1200 hours continuous.
Accuracy: ±1% of applied load.
Frequency: 2.4 GHz.
System range: 700 m.
Data rate: 3 updates per second.
Protection: IP67.

  • Temperature range: -10°C up to +50°C.
  • Note: Safety factor when used with a load bobbin.
  • Safety factor: 5:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

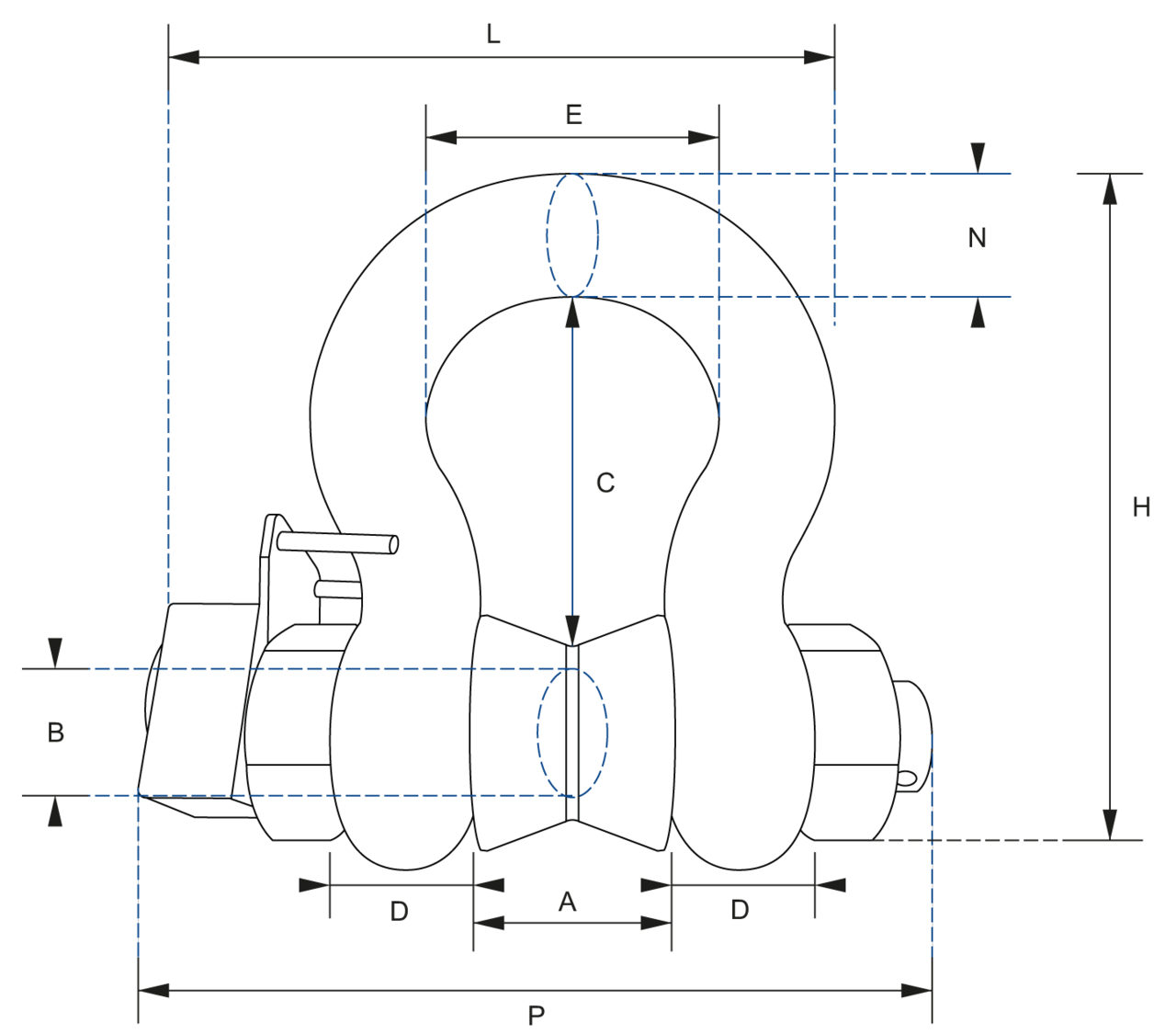

Part Code Code WLL
ton
Resolution
T
A
mm
ØB C
mm
D
mm
E
mm
H
mm
L
mm
N
mm
P
mm
Weight
kg
CAD
159450 WLS3,25T 3.25 5 26.9 19.1 56.9 16 42.9 106 127.1 17.5 143 2.8
159449 WLS6,5T 6.5 5 36.6 25.4 79.7 22.4 58 148 156.5 24.6 173 3.2
162667 WLS12T 12 10 51.5 35.1 113 31.8 82.5 210 196 35.1 218 8
162667 WLS25T 25 20 73 51 170 44.5 127 313 281 57 293 18
165688 WLS55T 55 50 82.5 57 189.5 51 164 348 306 61 317 25

Accuracy: +/- 1% full scale.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
