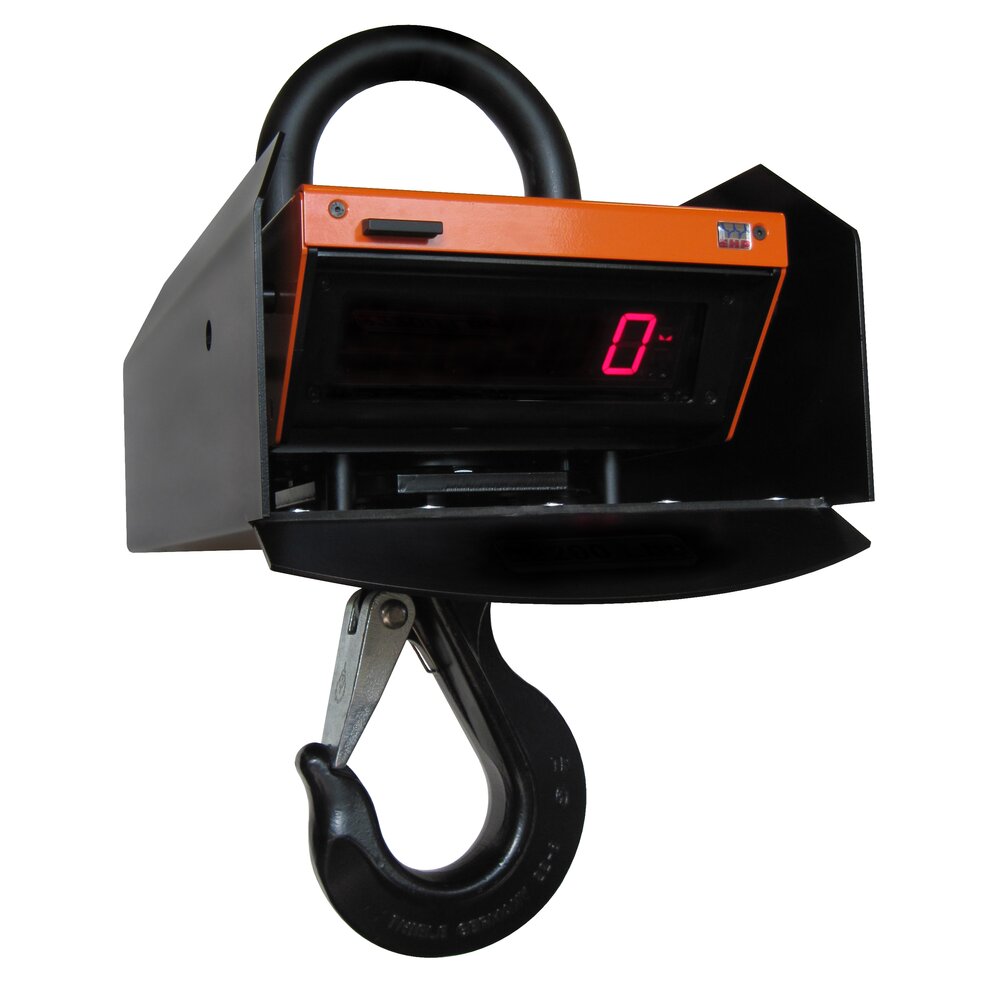

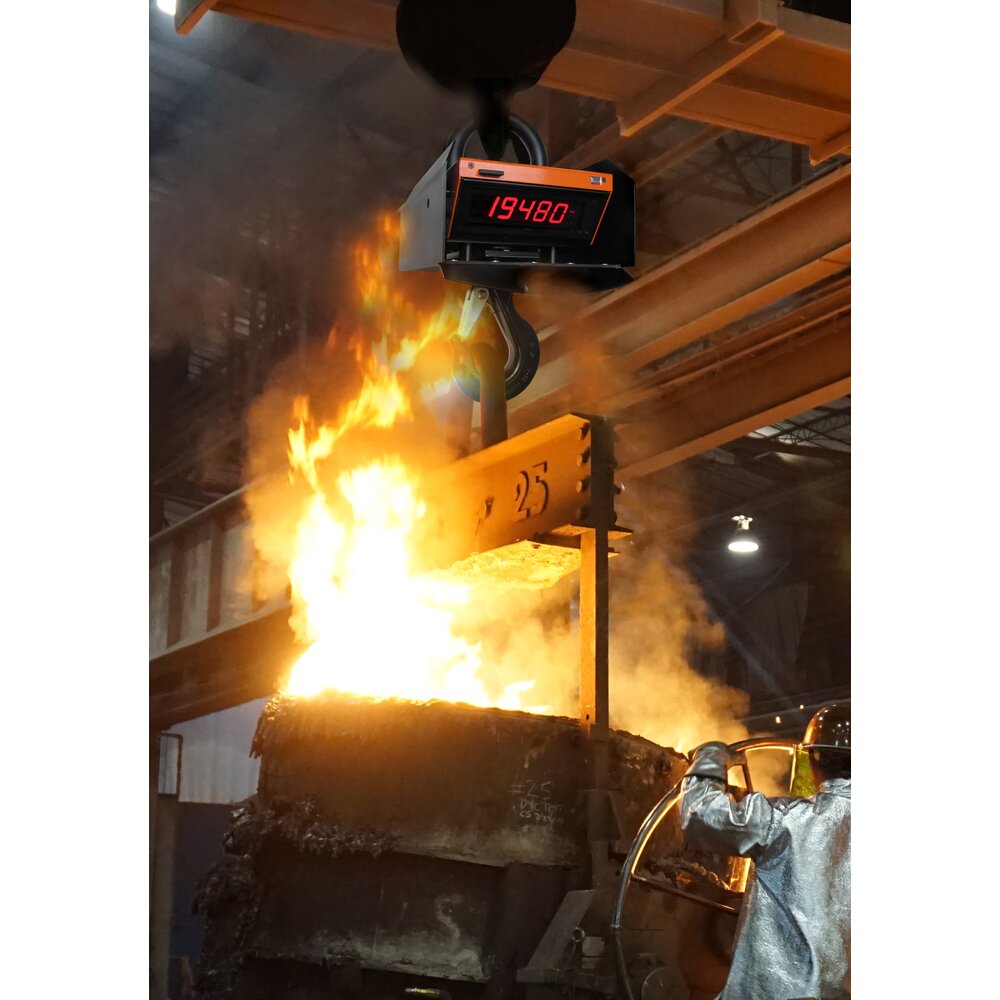

This crane scale is developed for extreme foundry applications - weighing up to 1,600°C hot material possible, shock-resistant design. It is flexible in use and extendable at any time with accessories.
Features:
- Casting speed function (kg/sec) - simplifies work processes
- High-quality and approved hooks and shackles
- Automatic switch-off
- High-quality, long-term stable strain gauge load cell as load sensor
- Special designs possible (e.g. headroom reduction, special hooks, crane-specific adaptations)
- Protection class IP 54
Equipped with:
- Heat protection
- Integrated overload protection
- Infrared remote control
- Quick charge battery and charger - battery life up to 120h
Options :
- Teledata
- USB Box
- Scale control
- DRC 433
- Telebox PLC
- Large display
Machinery Directive 2006/42/EC
- Marking: According to standard, CE-marked
- Temperature range: from -20°C to +50°C
- Standard: EN 13155
- Safety factor: 5:1
