Crosby

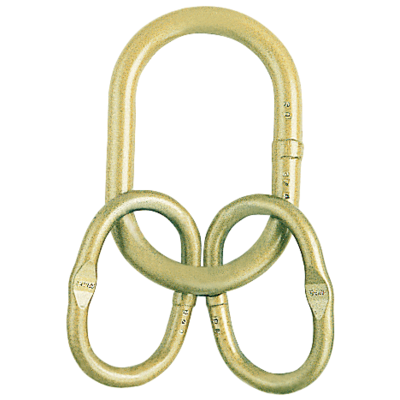

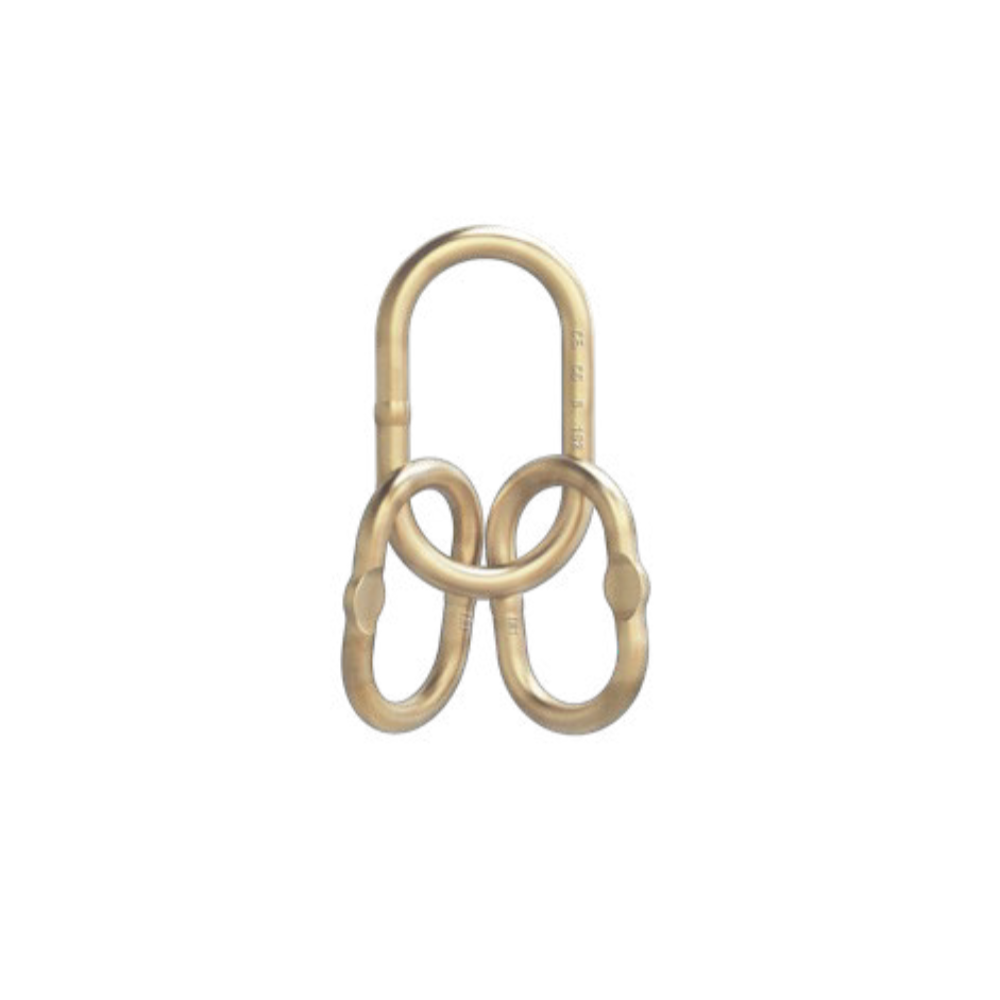

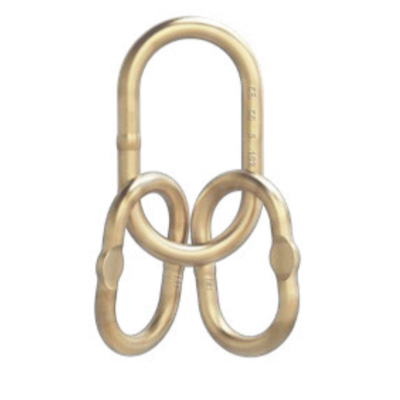

General: Master link with large inner diameter and length.
These rings with auxiliaries have the dimensions that allow the manufacture of steel wire ropes slings with 3 or 4 legs.

  • Material: Alloy steel, quenched and tempered.
  • Marking: According to standard, Manufacturers name, traceability code.
  • Standard: EN 1677-4
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
chain Ø
mm
Chain Ø

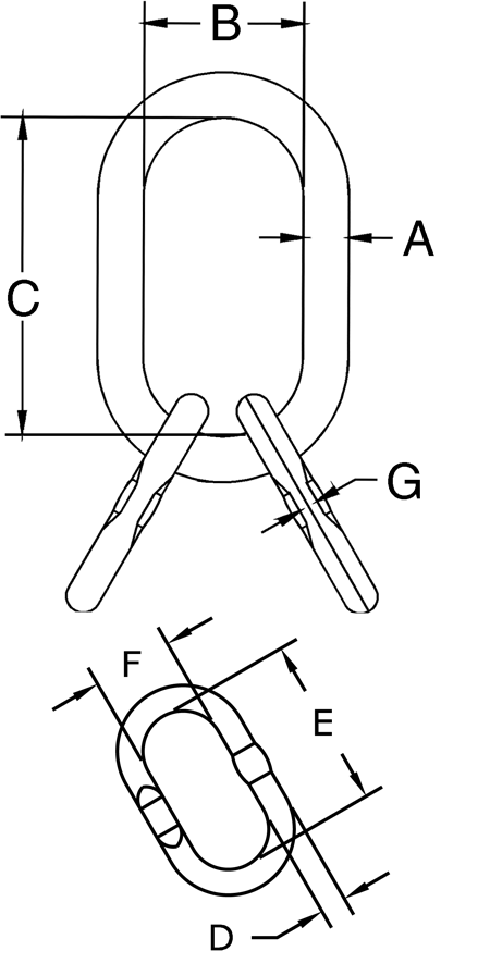

inch
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
CAD
44089 2,4 13/12 1/2 13 60 120 12 85 45 6,5 0,81 -
107950 4,1 17/13 11/16 17 90 160 13 120 60 6,5 1,56 -
11.011257832 4,25 19/13 3/4 19 90 160 13 120 60 6,5 1,8 -
11.011257979 5,8 22/16 7/8 22 145 275 16 120 60 8,5 3,53 -
144546 6,7 22/17 7/8 22 100 180 17 160 90 8,5 3,35 -
153964 8,5 22/20 7/8 22 90 170 20 150 80 8,5 3,93 -
11.011258102 8,9 25/19 1 25 145 275 19 160 90 8,5 5,51 -
150311 10,7 25/20 1 25 100 190 20 150 80 8,5 4,65 -
149366 12,9 28/22 1-1/8 28 110 210 22 170 90 10,5 6,4 -
108018 14,5 28/22 1-1/8 28 145 275 22 180 100 10,5 7,17 -
107939 17 31/25 1-7/32 31 145 275 25 205 115 13,5 9,72 -
11.011258202 17 32/25 1-1/4 32 140 270 25 190 100 13,5 9,92 -
149364 23,6 36/28 1-3/8 36 145 275 28 190 100 13,5 12,2 -
152350 28,1 38/32 1-1/2 38 140 270 32 270 140 16,7 18,23 -
108019 28,1 40/31 1-9/16 40 160 300 31 275 145 16,7 18,68 -
11.011258402 38,3 45/36 1-3/4 45 180 340 36 285 155 - 26,56 -
162044 38,3 45/38 1-3/4 45 170 320 38 270 140 - 27,96 -
11.011258442 45 50/38 2 50 200 380 38 270 140 - 32,86 -
153985 45 51/45 2 51 190 350 45 340 180 - 42,92 -
108012 67 57/50 2-1/4 57 203 406 50 380 200 - 59,7 -

*Ultimate Load is 5 times the Working Load Limit. Applications with wire rope and synthetic sling generally require a design factor of 5. **Proof Test Load equals or exceeds the requirement of ASTM A952(8.1) and ASME B30.9.
