Tractel

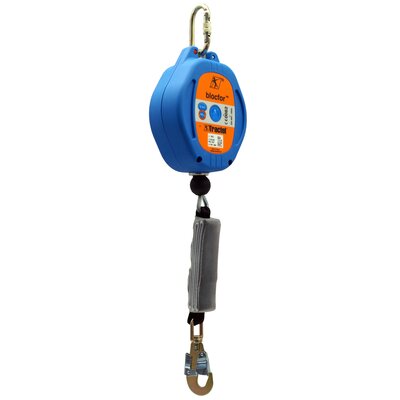

The blocforTM 10 ESD self-retracting lifeline is particularly well suited for all types of vertical and horizontal movement.
It makes it easy to move horizontally on congested surfaces such as flat roofs or industrial sites.

Features:
• M10 connector to attach the fall arrest system to the anchor point.
• 25mm anchor: allows you to attach to other connectors of larger diameters
• M47 chest connector to attach the fall arrest system to the harness: avoids an unsafe positioning on the point of attachment of the harness.
• Galvanized cable: Length 10 meters, Ø 4,75mm
• ESD absorption system: provides the user with an impact of less than 600daN even if the fall occurs when the cable is fully unwound.
• Fiberglass filled casing for added durability : UV, shock and aging resistant
• Lightweight: less than 5 kg
• Complies with CNB / P / 11.062 for use above 100 kg.
• Complies with CNB / P / 11.060 for horizontal use.

  • Marking: According to standard
  • Standard: EN 360
Select a row from the table below, then click the add to quote button
Part Code Length Weight
kg
CAD
19.0710ESD70572 10 5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
