Electric winch for lifting and pulling of loads from 300 up to 2000 kg. A economical range of electric winches designed for simple lifting and pulling operations.

Applications:

  • Leisure boat hauling
  • Lifting goods
  • Handling scenery
  • Pulling concrete formwork on a construction site
  • Lifting hatches
  • Maintenance

Technical properties:

  • FEM 1Cm / 1Bm – Occasional or moderate use, depending on the model.
  • Drum and frame in mechanically welded, shot-blasted and painted steel.
  • Greased reducer with helical gears.
  • Asynchronous motor. Class F. IP 54 protection.
  • Automatic lack of current brake.
  • Single phase power 230V-50Hz or three phase 230/400V-50Hz depending on model.
  • Electronic load limiter (from 1000 kg) and limit switch included.
  • Low voltage control (BT) ensuring user protection against electrical risks.
  • 3 buttons pendant control (Up - Down- Emergency Stop), not removable (3 m long control cable).

Options:

  • Wire rope and hook.
  • Grooved drum.
  • Rope press roller.
  • Tarpaulin cover.
  • Marking: According to standard, CE-marked
  • Temperature range: -10°C to +50°C
  • Standard: EN 13157

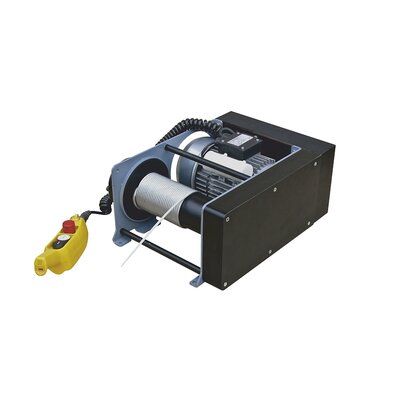

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Power Motor
kW
Weight without wire rope
kg
FEM Capacity 1st layer
kg
Number of layers Speed
m/min
Rope diameter
mm
Max. drum capacity
m

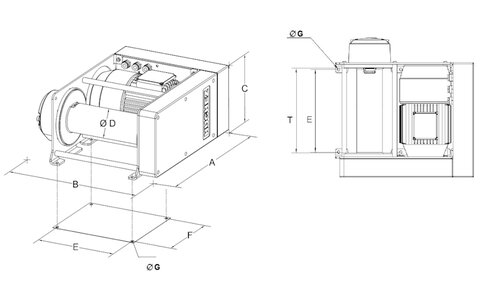

A
mm
B
mm
C
mm
Ø D
mm
E
mm
F
mm
Ø G
mm
T
mm
PRIMO 301 BT 0,3 1 Ph-230V 0,75 35 1Bm 360 3 9,1 5 48 476 422 231 89 250 214 9 257
PRIMO 303 BT 0,3 3 Ph-230/400V 0,75 35 1Bm 360 3 9,1 5 48 476 422 231 89 250 214 9 257
PRIMO 501 BT 0,5 1 Ph-230V 1,1 40 1Cm 630 3 11 7 38 476 430 241 95 250 214 9 257
PRIMO 503 BT 0,5 3 Ph-230/400V 1,1 40 1Cm 630 3 11 7 38 476 430 241 95 250 214 9 257
PRIMO 991 BT 0,99 1 Ph-230V 1,1 88 1Bm 1 300 4 5,2 8 68 565 500 326 133 260 280 17 280
PRIMO 993 BT 0,99 3 Ph-230/400V 1,1 90 1Bm 1 300 4 5,2 8 68 565 500 326 133 260 280 17 280
The wire rope diameter corresponds to the capacity on the top layer with a safety coefficient of (about) 5 when lifting with non-rotation wire rope.
* 2 fixation holes are available at half the dimensions, i.e. 107 mm. Height C can vary from one model to the other depending of the type of motor terminal available: the indicated height is the maximum height.
