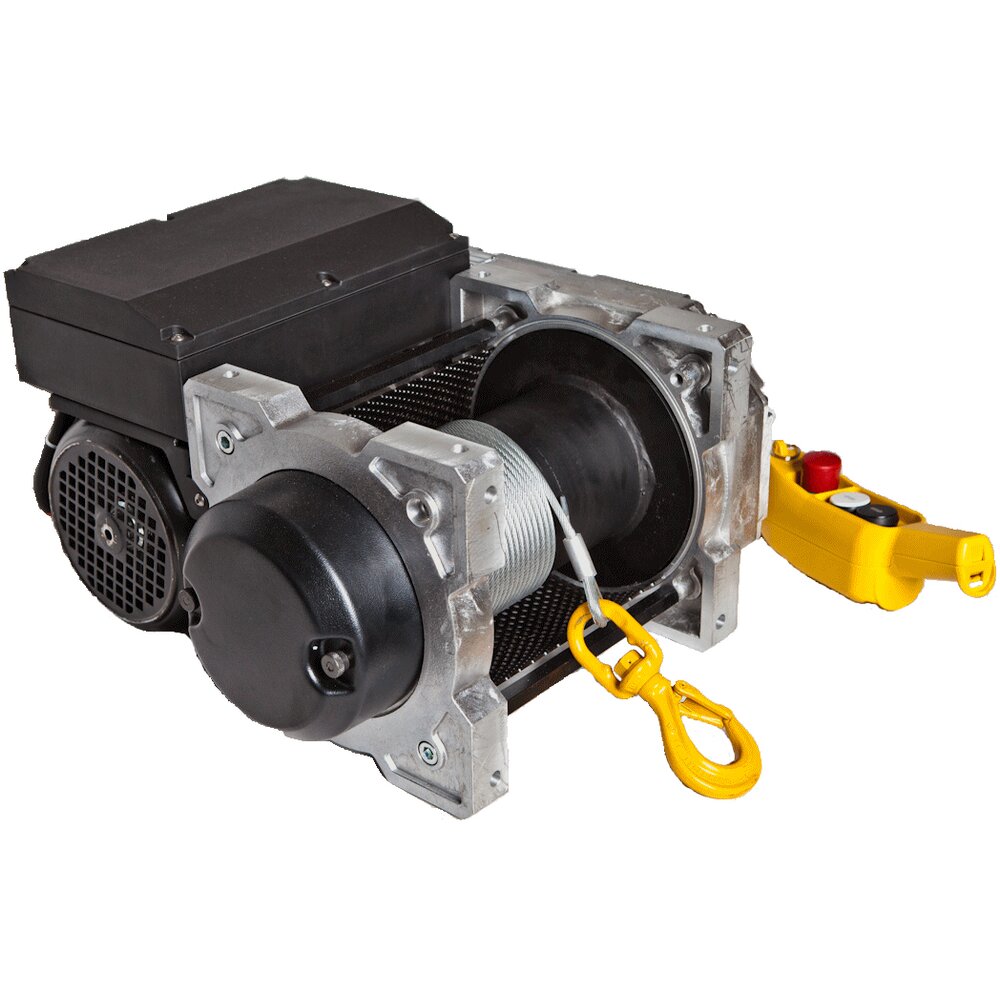

Electric winch TRBoxter BT 1-speed

General:
Electric winch for loads from 250 up to 1500 kg with low voltage control and 1 speed.
Multifunctional electric winch offering many rope attachments, rope outlets and options. Robust and compact, it benefits of a high operating factor for all kind of applications such as for example: Indus

Show more

Product number:

General:
Electric winch for loads from 250 up to 1500 kg with low voltage control and 1 speed.

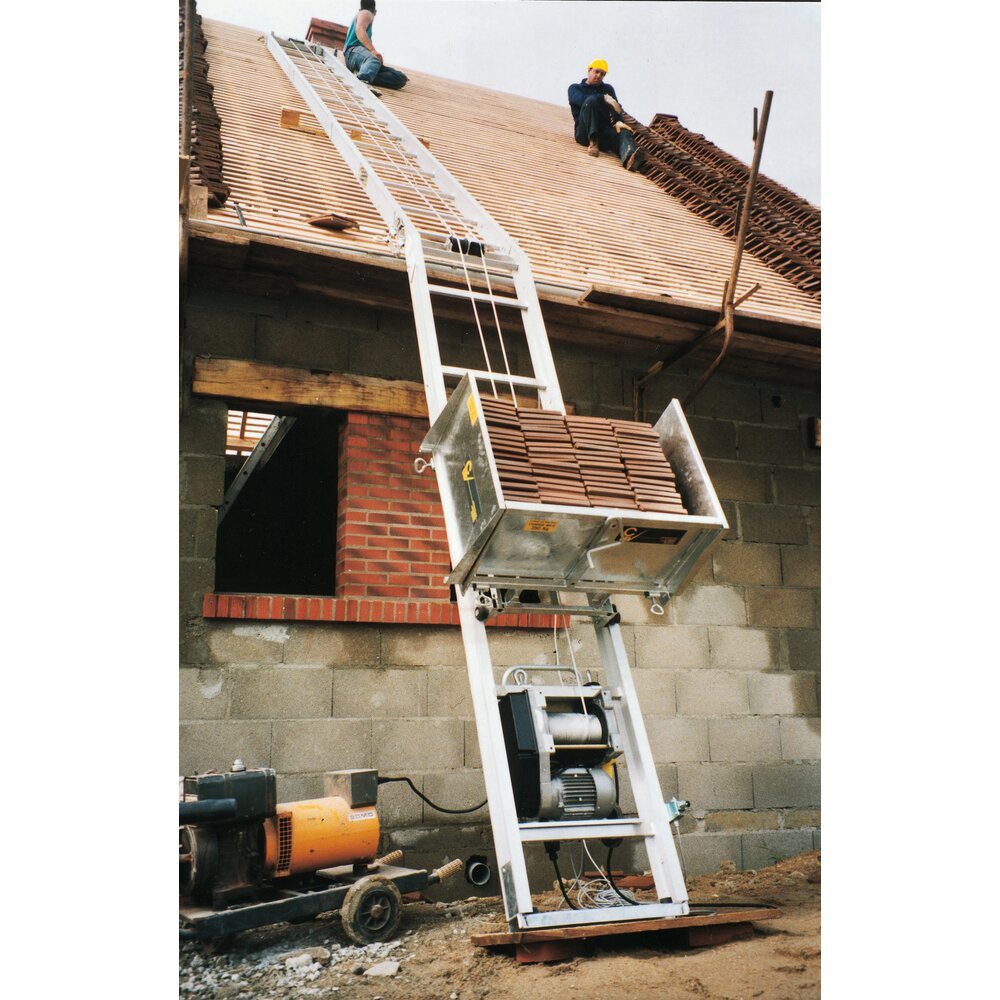

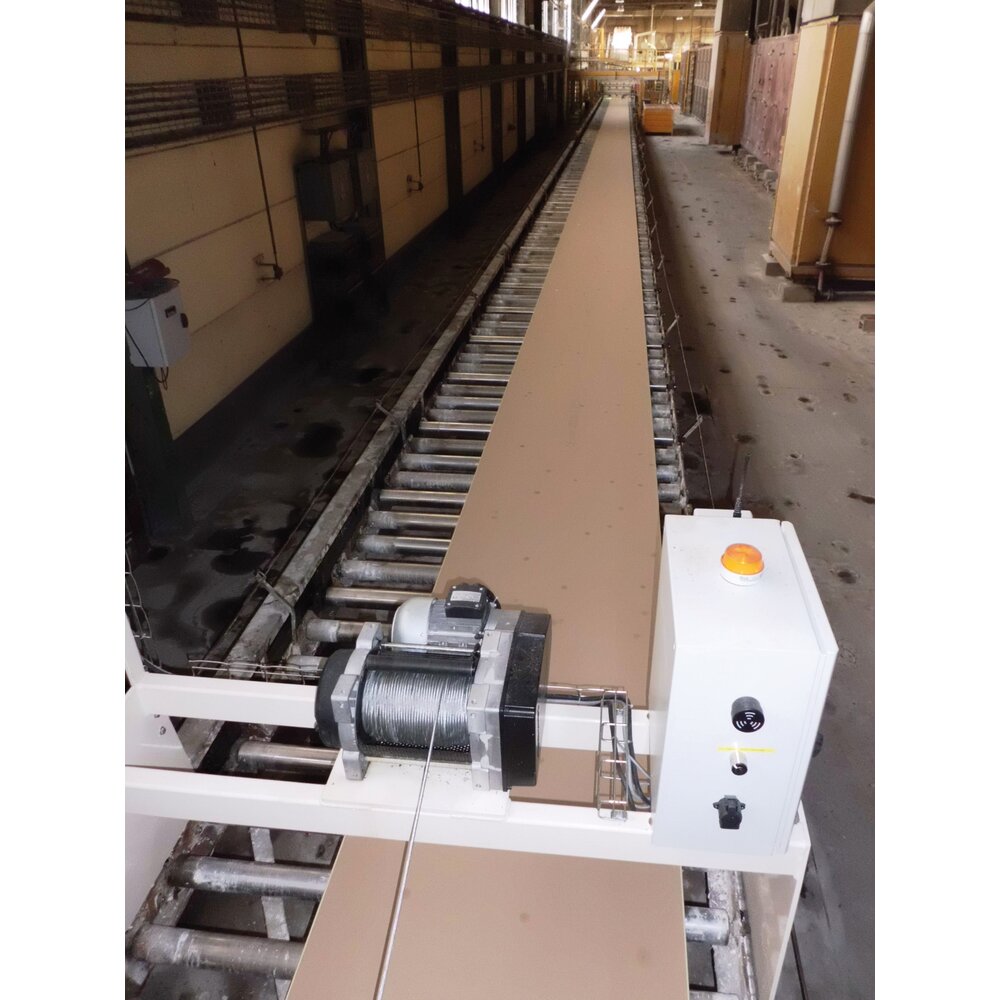

Multifunctional electric winch offering many rope attachments, rope outlets and options. Robust and compact, it benefits of a high operating factor for all kind of applications such as for example: Industrial applications, Building and public works, Theatre applications, Integration into many types of devices, cranes, material lifts etc.

Technical properties:

  • Welded steel drum.
  • Aluminium casing.
  • The low voltage control protects the user from electrical risks.
  • Asynchronous, single phase motors (230 V – 50 Hz P=0.75 or 1.1 kW depending on the models)
  • Threephase motors (230/400 V – 50 Hz P= 0.75 or 1.1 kW depending on the models).
  • Reducer sealed in oil bath with helical gears.
  • 24 V or 190 V direct current electromagnetic brake (depending on the models).
  • Electrical equipment under sealed cover.
  • Very low voltage, 24 V remote control with socket – IP 65 protection.

Optional:

  • Limit switch
  • Radio control
  • Load limiter
  • Lengthened drum models. Wirerope capacity will increase by 1.5 x standard capacity.
  • Material: Aluminum casing / Steel drum
  • Marking: CE-marked
  • Temperature range: -10°C to +50°C.
  • Warning: If the winch is used for lifting of a load, a limit switch is mandatory!

After click on the “Show table” button, you will see the table with all technical details about the product.

Type
Drum
Measurements (mm)













Model
type
A
B
C
Ø D
E
Ø F
G
H
J
K
L
M
N
T
TRBOXTER 250 to 500 kg
standard
462
243
79
121
255
10.5
197
284.5
23
356
419.5
121.5
121.5
230

long
462
243
79
121
370
10.5
197
284.5
23
471
534.5
121.5
121.5
345
TRBOXTER 600 to 1500 kg
standard
554
304
105.5
159
318
12.5
246
332.5
29
493.5
515.5
152
152
290

long
554
304
105.5
159
461
12.5
246
332.5
29
493.5
656
152
152
435
