• Not for lifting

General: For safe and careful installation, tensioning or pulling of ropes. The tension spring construction allows to position the clip on the rope without any additional fixing and maintains the grip on the rope even if the rope is unloaded.
Nominal size: 4-10 with round hole
Nominal size: 16-38 with oval hole

Features:

  • Hardened clamping shoes.
  • Clamping shoes with deep and sharp teeth.
  • Tension sping for easy positioning.
  • Finish: Electro galvanized. Shoes browned.
  • Note: Before every use the clamping shoes and rope should be cleaned. Please take care that no grease or oil is on the connection.
  • Warning: Not to be used for lifting.
Product Image 1

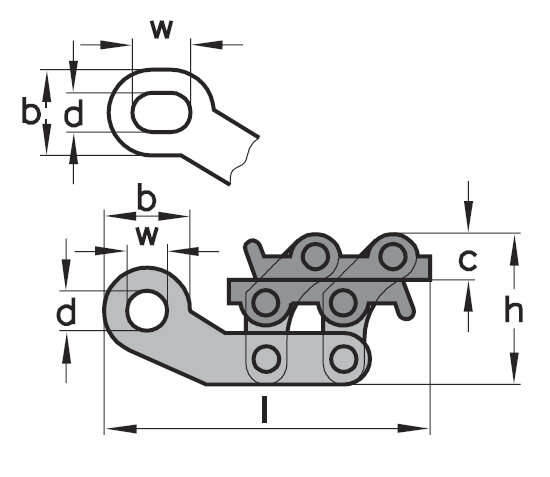

Drawing
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Type W
mm
rope cross section mm² B
mm
C
mm
D
mm
h closed h open h opening l
mm
Weight
kg
161688 1-4 RTC4 19 1 - 16 36 15 19 47 51 6,5 124 0,25
142845 3-8 RTC8 20 6 - 35 47 21 20 76 82 10,0 169 0,85
161799 5-10 RTC10 18 16 - 70 44 24 18 80 88 12,0 195 1,1
158252 8-16 RTC16 39 50 - 150 54 25 30 83 97 19,0 245 1,8
107583 12-26 RTC26 38 95 - 400 62 31 29 107 130 26,0 265 3,5
161258 20-38 RTC38 38 240 - 800 62 36 29 126 153 40,0 286 6,5
