Air chain hoist for material handling 140 and 250 kg.
These types RED ROOSTER Compact Hoist are very suitable for "Material-Handling". The pendant control is direct on the lower hook so the operator can control and position the load easy and direct. The perfect solution for horizontal movements is the combination with a push trolley.

Standard features:

  • Pendant control direct on the lower hook.
  • Optimum load control, very precise positioning.
  • One-hand control.
  • Variable speed control.
  • Soft start and stop, no shock movements.
  • Handle can be positioned for left-hand or righthand operation.
  • Endstop system.
  • 2 meter of lift. (Only for TMM-140AE)

We highly recommend the use of an SMC air treatment unit.
(Sold separately.)

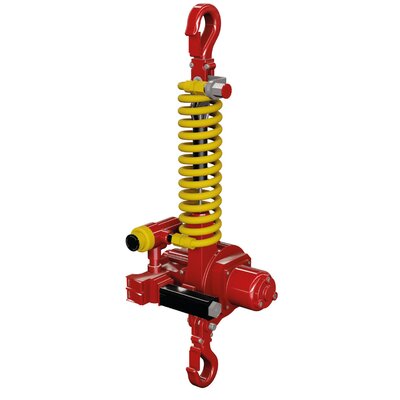

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
Lifting height
Type Lowering speed with load
Air consumption lowering (I/sec) Lifting speed with max.load
Weight at 3m HOL
Lifting speed without load
Air consumption (l/sec) Number of falls CAD
16.30TMM-140AE 0.14 2 TMM-140AE 15 11 11 9 15 8 1
166128 0.25 3 TCR-250ME 16 13 8 11 19 11.7 1

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
