Lever Hoist KITO LX Series

Kito

The KITO LX Series is a range of small lever hoists that is suitable for operations in limited space. The lever hoist has a freewheel safeguard and the bottom hook is riveted in four places. Its solid aluminium housing enables a low weight of the hoist. The load can be lifted or lowered in 2 mm steps due to its smooth gear mechanism.

  • Material: High impact aluminium housing, nickel-plated load chain in grade 10.
  • Marking: Type plate with WLL, CE-marking and serial number.
  • Finish: Surface treated aluminium.
  • Safety factor: 4:1.

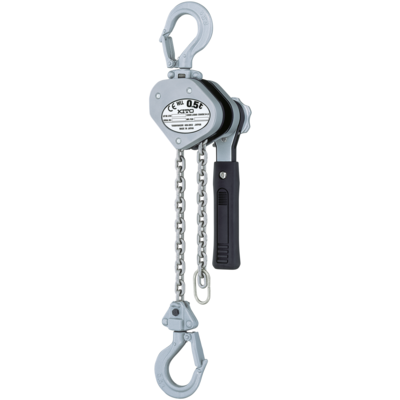

LX005 Lever Hoist KITO LX Series
Belt bag LX003
LX005
Belt bag LX003
Kito LX drawing
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 Lifting height
m		 Hand pull to lift full load
daN		 Load chain Ø
mm		 Chain falls A
mm		 B
mm		 C
mm		 D
mm		 e
mm		 g
mm		 t
mm		 s
mm		 Weight
kg
16.20LX003S015 LX003 0,25 1,5 20 3,2 x 9,0 1 90,5 73,5 205 150 62 21,0 11 32 1,7
162729 LX005 0,5 1,5 31 4,3 x 12,0 1 102,0 93,0 246 180 68 24,5 12 35,5 2,7
* Weight with standard lift (1,5 m)
The last 2 digits in the Art No indicates the lifting height.
