This accessory allows the handling of concrete elements with tapped inserts.

In the case of handling with several loops, the use of a spreader is mandatory.

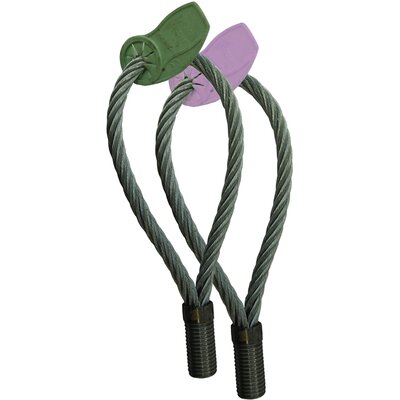

Wire rope lifting loop is made of a high resistance galvanized cable.
Before any use, it must be checked that :

• the lifting loop is fully screwed;

• the threads are clean;

• the lifting loop is not damaged.

Its use must be limited to oblique tensile forces whose angle is between 0 and 45 ° relative to the axis of the sleeve. The diameter of the hooks used must be greater than or equal to the cable in order to avoid premature wear.

If there is deformation or threading, the lifting loop cannot be repaired and must be replaced automatically. Each loop must be checked at least once a year.

  • Marking: CE-marked
  • Note: In the case of handling with several loops, the use of a spreader is mandatory.
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

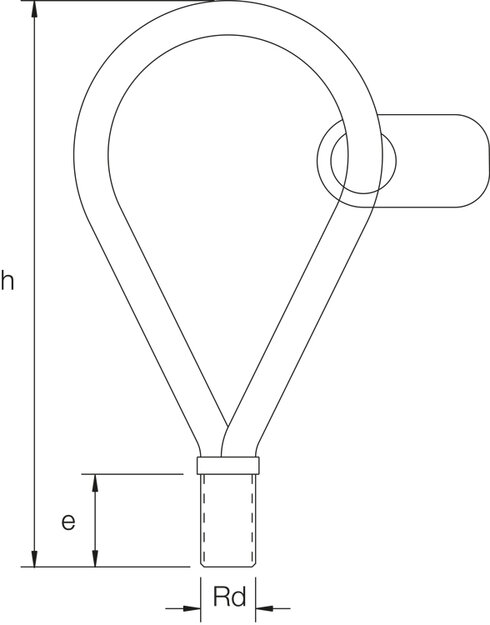

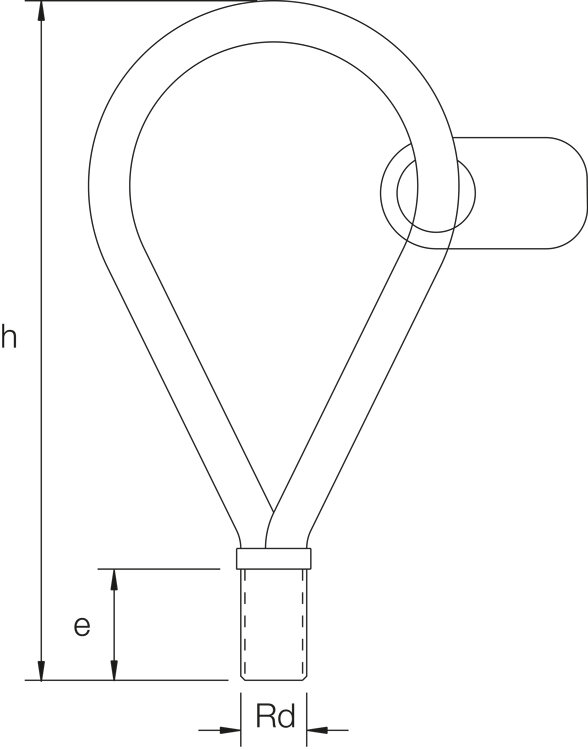

Part Code WLL
ton
e
mm
h
mm
Rd
mm
CAD
99.1164500500 0.5 22 155 12
99.1164701200 1.2 27 165 16
99.1164902000 2 35 215 20
99.1165002500 2.5 44 255 24
99.1165104000 4 55 300 30
99.1165206300 6.3 68 360 36
99.1165308000 8 75 425 42
99.1165412500 12.5 95 530 52
