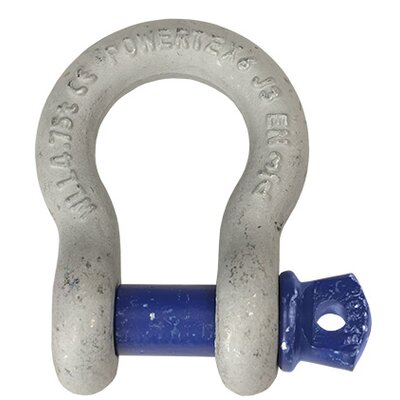

Bow type shackle PBSP is a high quality shackle intended for use in demanding environments.

It is supplied with a screw pin for quick and easy opening.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVA Class 2, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and screw pins marked with batch number for traceability
  • Larger sizes equipped with arrows to indicate 45 degrees to vertical
  • Raised pad for dedicated and easy individual ID (3,25 t and up)
  • The bow is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including screw pins and nuts are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Screw pins are additionally painted in blue and red for quick and easy detection as  original POWERTEX parts
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with alloy screw pin.
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized. Bolt additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6

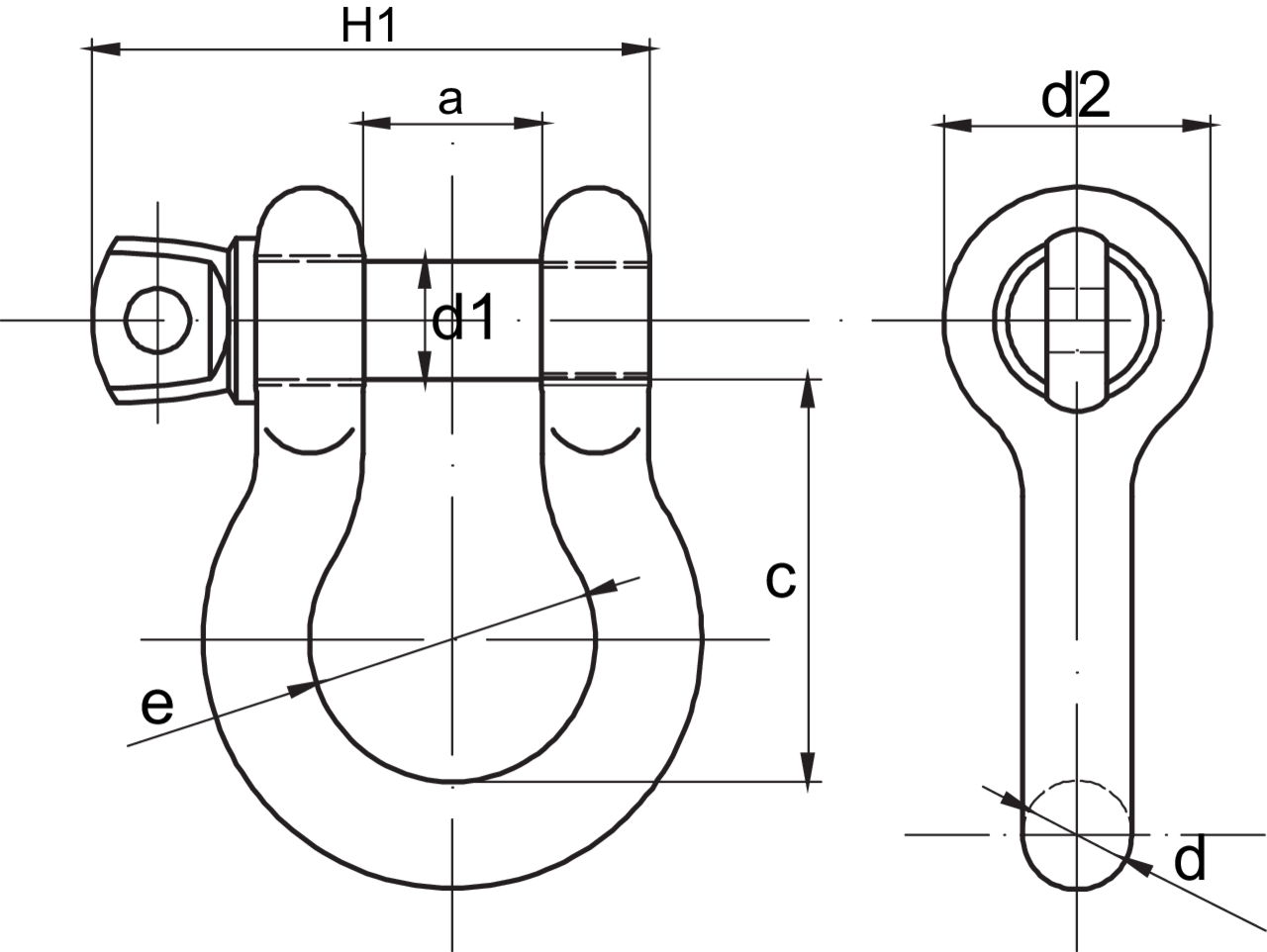

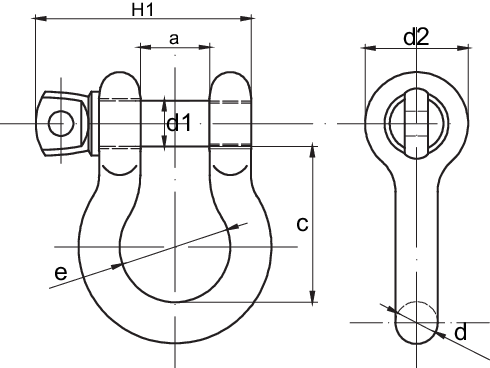

201_e_225mm
128715
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Nominal size
In.
Pin Ø d1 a*
mm
c*
mm
d
mm
d2
mm
e
mm
H1
mm
Weight
kg
CAD
163850 1331 0.33 3/16 6,3 10 22,6 5 14,5 15,5 29 0.026
163852 1332 0.5 1/4 8 13 29 6,5 17,5 20 38 0.048
163853 1333 0.75 5/16 9,5 13,5 31 8 21 21,5 42.5 0.082
163854 1334 1 3/8 11,2 17 36,5 10 25 26,2 51.5 0.15
163855 1335 1.5 7/16 12,7 18,5 42,9 11,3 27 29,5 58 0.2
163856 1336 2 1/2 15,8 20,6 47,75 12,7 30,5 33,3 67 0.3
163857 1337 3.25 5/8 18,6 27 60 16 40 43 85 0.65
163858 1338 4.75 3/4 22 32 71,5 19 48 51 98.5 1.01
163859 1339 6.5 7/8 25 37 84,5 22 54 58 114 1.5
163860 1340 8.5 1 28 43,5 96,25 26,5 60 68,5 129.5 2.25
163861 1341 9.5 1-1/8 32 48 109 29 68 75 144 3.25
163862 1342 12 1-1/4 35 53 120,5 32 76 84 157 4.45
163863 1343 13.5 1-3/8 38 59 134 35 84 94 171 5.95
163864 1344 17 1-1/2 42 62 148,5 38 92 99 186 7.72
163943 1345 25 1-3/4 50 75 178 45 106 128 227 12.64
164045 1346 35 2 55 84 197,5 52 122 148 253 18.72
165354 1347 55 2-1/2 70 107 269,5 66 145 186 318 37
11.31PBSP08500 85 3 80 130 325 76 165 205 382 58
*Tolerance: +/- 5%
