- QUIC-CHECK® angle indicators forged into the top eye; and deformation and angle indicators forged on the hook.
- Tip extension allows for easy handling.

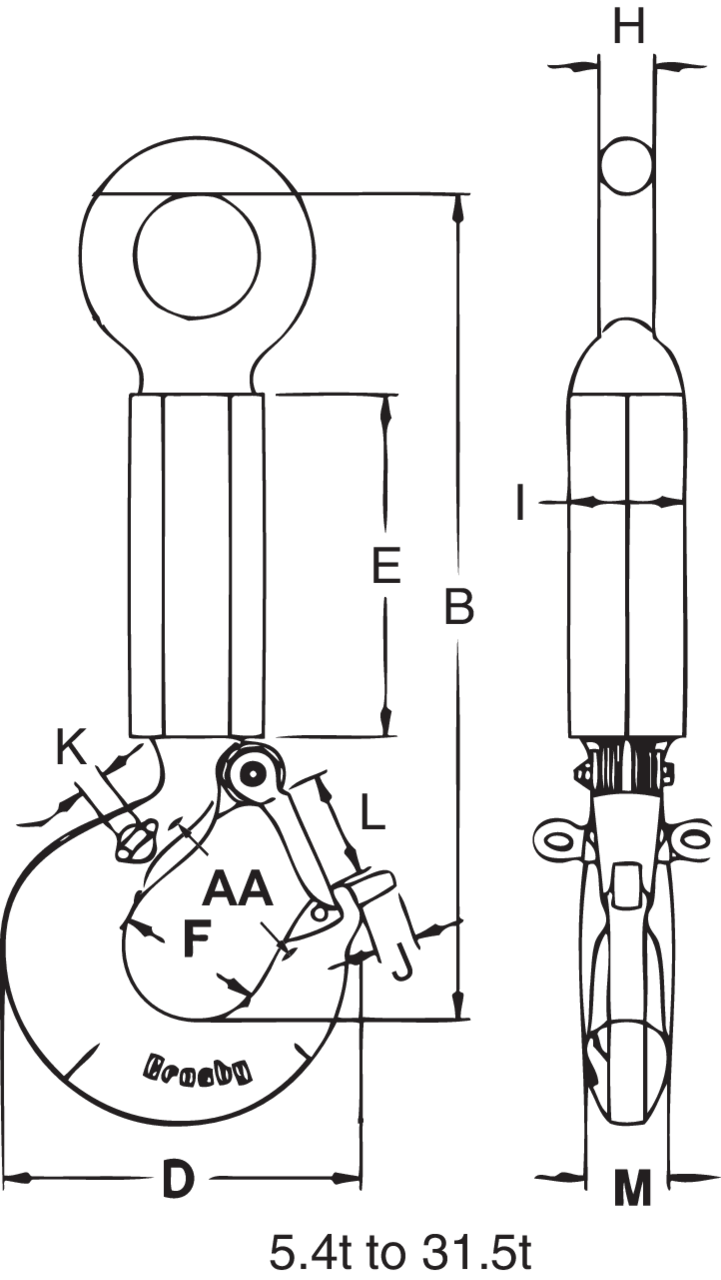

- Sizes 5.4t through 31.5t utilize new integrated latch (S-4320) that meets the worldclass standard for lifting.
- Heavy duty stamped latch interlocks with the hook tip.
- High cycle, long life spring.
- Pad eyes are provided on either side of hook as cable guides. The cable is passed through a hole drilled in the latch that assists in allowing the “remotely operated” cable to open latch.
- Cables and drilled latches are not provided by Crosby. They can be fitted by your local Authorized Crosby Dealer.
- Material: Alloy steel - Quenched and Tempered.
- Marking: Code
- Finish: Painted with fluorescent yellow.
- Safety factor: 4:1
- Grade: 8
