Swivel Eye Bolt Codipro SEB UP

Codipro

The SEB lifting ring is a single swivel ring. Equipped with 2 pins that always guide it perfectly in the direction of the sling. It is specially designed for lifting, including rotating loads.

Features:

  • Gradup steel ring that has a rotating range of 360°.
  • Swivelling under load
  • Safe alternative to C15 DIN 580 eye bolts.
  • Torque key adaptor available on request.

Grade: GRADEUP (8+)

  • Material: High tensile steel
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
    except grade/WLL
  • Note: On request the product can be certified for lashing.
  • Safety factor: 5:1

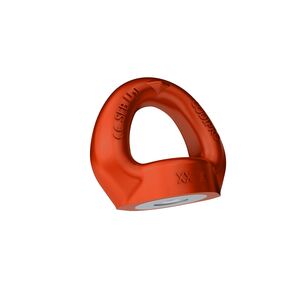

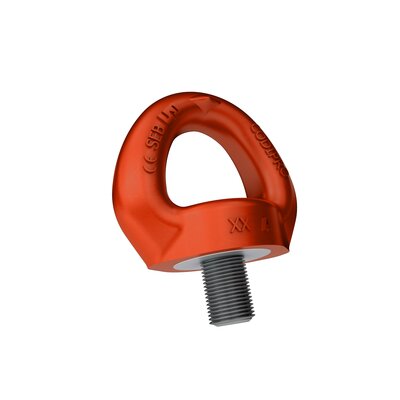

Product Picture 1
Product Picture 1
Select a row from the table below, then click the add to quote button

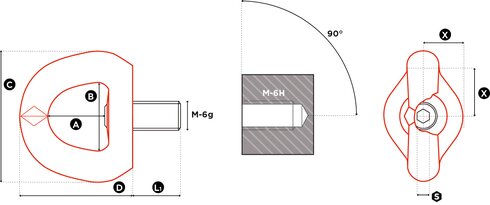

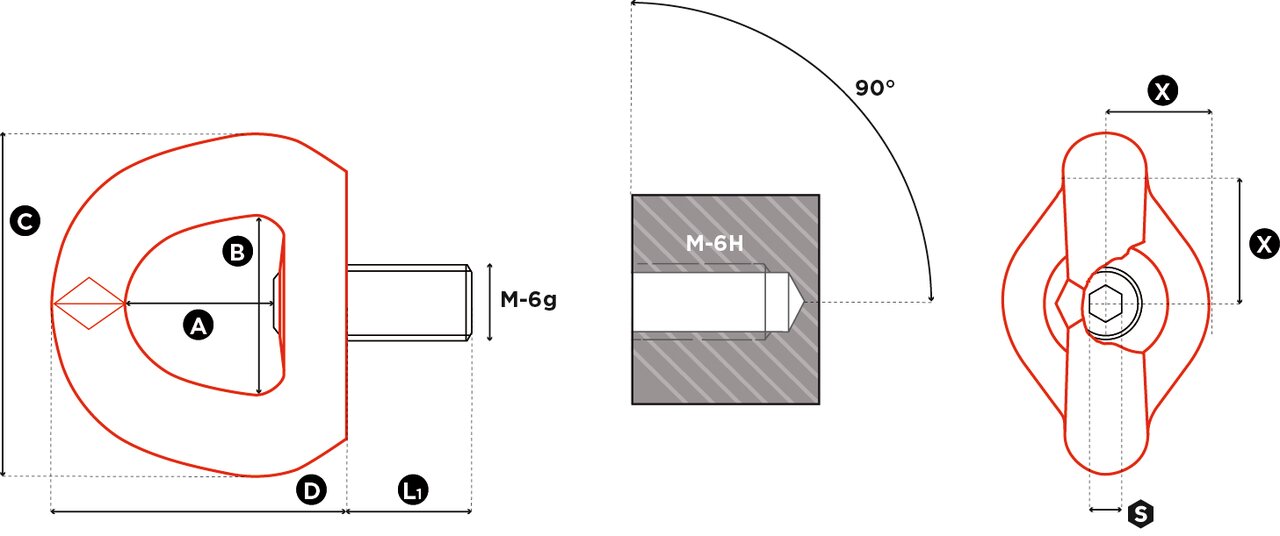

Part Code WLL
ton		 Thread Torque
Nm		 StandardL1
mm		 X/X
mm		 S
mm		 A
mm		 B
mm		 C
mm		 D
mm		 Weight
kg		 CAD
166656 0,4 M 8 (x1.25) 6 14 20 6 30 34 60 57 0,24 -
11.42SEB M 10 UP 0,5 M 10 (x1.50) 10 17 20 6 30 34 60 57 0,24
166655 0,8 M 12 (x1.75) 15 21 20 6 30 34 60 57 0,24
167501 1,4 M 16 (x2) 50 27 35 8 38 45 88 80 0,8
167720 2 M 20 (x2.5) 100 30 35 8 38 45 88 80 0,8
11.42SEB M 24 3T8 UP 3,2 M 24 (x3) 160 36 35 14 38 45 88 80 0,8
11.42SEB M 24 4T2 UP 3,4 M 24 (x3) 160 36 50 14 58 70 115 106 2,6
167819 5,5 M 30 (x3.5) 250 45 50 14 58 70 115 106 2,7
166485 9 M 36 (x4) 320 54 70 14 83 94 168 155 7 -
167949 12 M 42 (x4,5) 400 63 70 14 83 94 168 155 7 -
11.42SEB M 48 UP 15 M 48 (x5) 600 68 70 19 80 94 168 155 7
UNC thread also available: from UNC 3/8" to UNC 1"1/2

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
