Rud

VLBG load ring will turn 360°, adjustable in pull direction. Load ring foldable, full WLL in any load direction.

  • Material: Forged of high strength steel.
  • Marking: According to standard, CE-marked, WLL
  • Finish: Striking fluorescent pink powder coating.
  • Standard: EN 1677-1
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

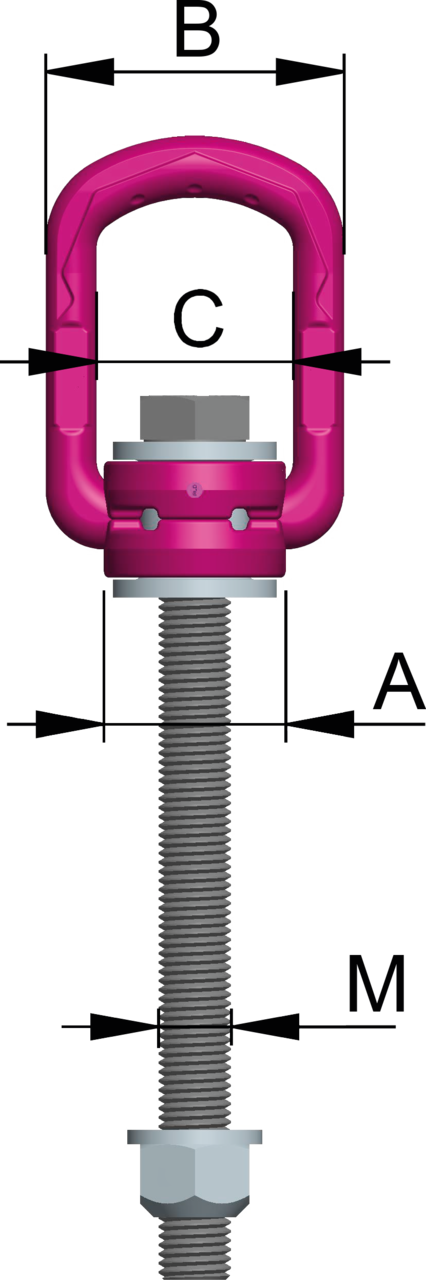

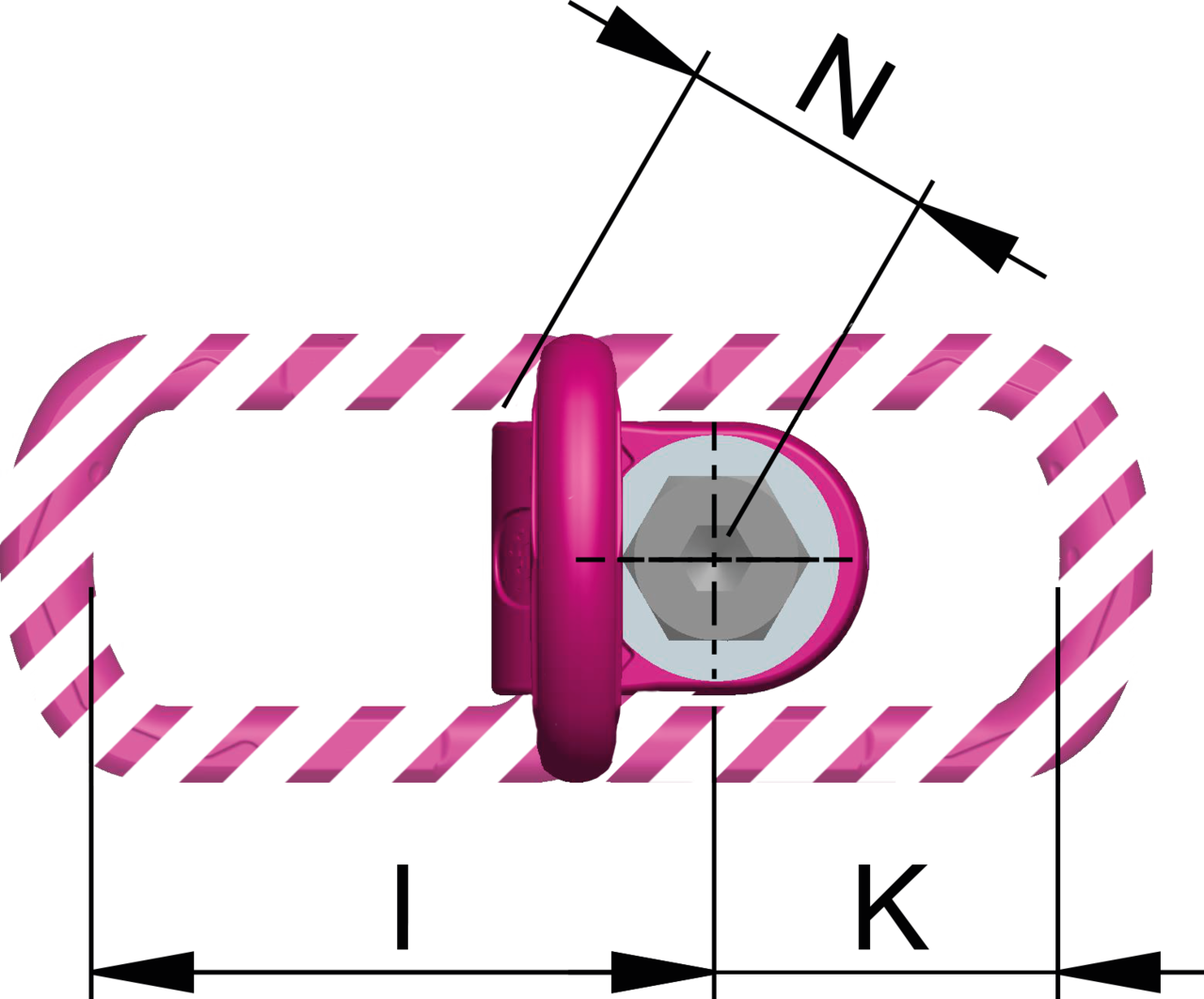

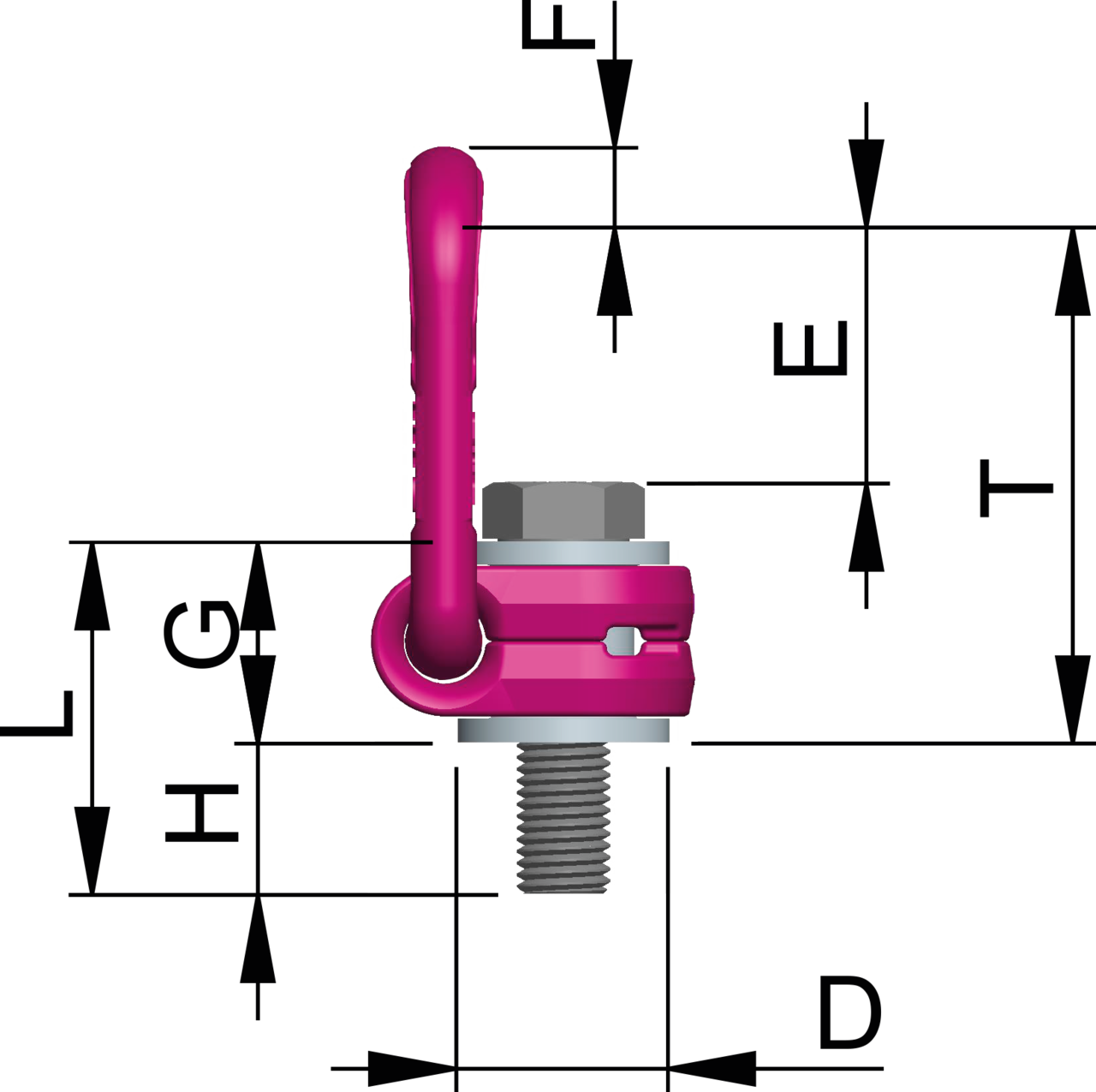

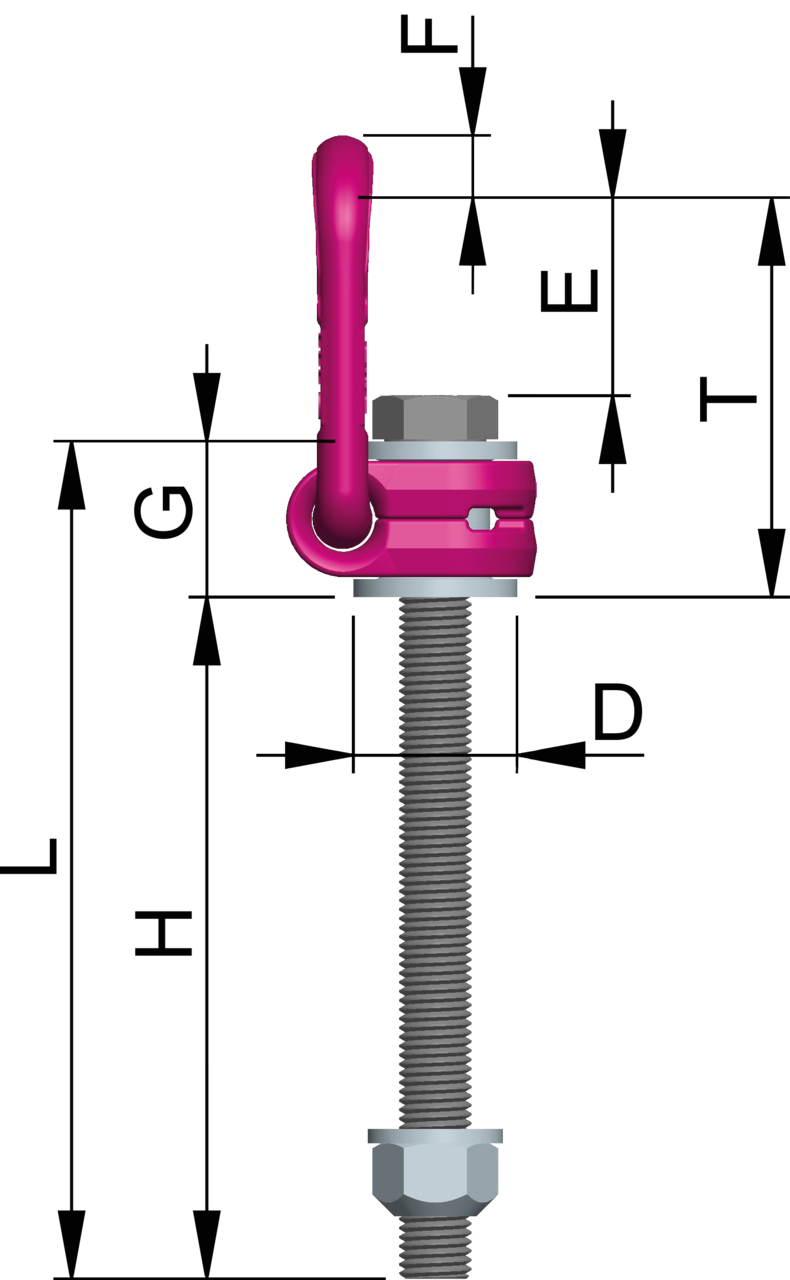

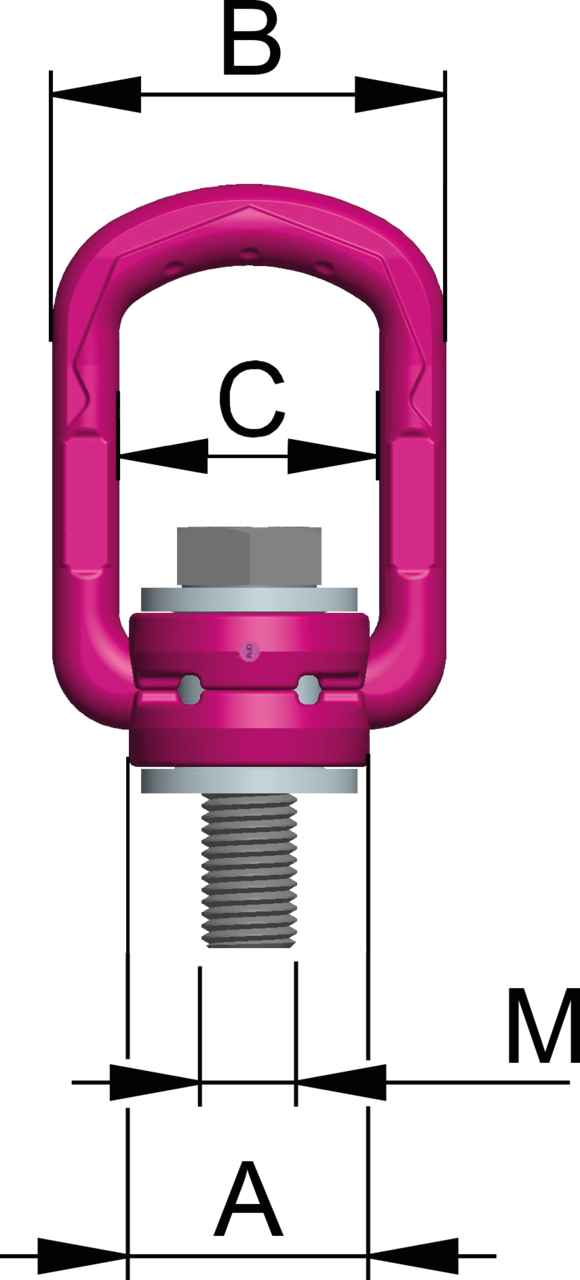

Part Code Code WLL
ton
Thread Torque
Nm
T
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
K
mm
L
mm
N
mm
Weight
kg
CAD
11.428504651 VLBG-PLUS 0.63 M8 30 75 30 54 34 24 40 10 29 11 75 45 40 32 0.3
11.428504652 VLBG-PLUS 0.9 M10 60 75 30 54 34 24 39 10 29 15 75 45 44 32 0.32
11.428504653 VLBG-PLUS 1.35 M12 150 75 32 54 34 26 38 10 29 18 75 45 47 32 0.33
11.428504655 VLBG-PLUS 2 M16 150 85 33 56 36 30 39 13.5 36 22 86 47 58 38 0.55
11.428504657 VLBG-PLUS 3.5 M20 400 110 50 82 54 45 55 16.5 43 32 113 64 75 48 1.3
11.428504659 VLBG-PLUS 4.5 M24 760 125 50 82 54 45 67 18 43 37 130 78 80 48 1.5
11.428504661 VLBG-PLUS 6.7 M30 1,000 147 60 103 65 60 67 22.5 61 49 151 80 110 67 3.3
11.427983553 VLBG-PLUS 8 M36 800 197 77 122 82 70 97 26.5 77 63 205 110 140 87 6.2
11.427983554 VLBG-PLUS 10 M42 1,000 197 77 122 82 70 94 26.5 77 73 205 110 150 70 6.7
11.427982966 VLBG-PLUS 15 M42 1,500 222 95 156 100 85 109 36 87 63 230 130 150 100 10.9
11.427982967 VLBG-PLUS 20 M48 2,000 222 95 156 100 95 105 36 87 73 230 130 160 100 11.6

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
