Column Mounted Jib Crane BOSS B

The column-mounted jib arm crane Boss B has been designed to perform extraordinary jobs.

You can use the crane with its infinite slewing range under the toughest and most difficult conditions where capacities of up to 32 t are required: In warehouses, power plants, steel works, foundries but also

Show more

Part code:

The column-mounted jib arm crane Boss B has been designed to perform extraordinary jobs.

You can use the crane with its infinite slewing range under the toughest and most difficult conditions where capacities of up to 32 t are required: In warehouses, power plants, steel works, foundries but also on large-volume excavators and dredgers.

With its standard electrical slewing gear by ball bearing slewing ring it provides for comfortable and smooth slewing and enhanced ease of operation. The column-mounted crane B perfectly meets your requirements for indoor and outdoor use since column height and jib arm length can be adjusted individually.

Advantages:

  • Infinite slewing by 360°
  • Large capacity and outreach
  • Electrical slewing gear
  • Several fastening option available

Options:

  • For Outdoor use on request.
  • Suitable for explosion protection according to ATEX on request

Contact our crane department for more information.

  • Marking: According to standard, CE-marked
  • Standard: EN 13001

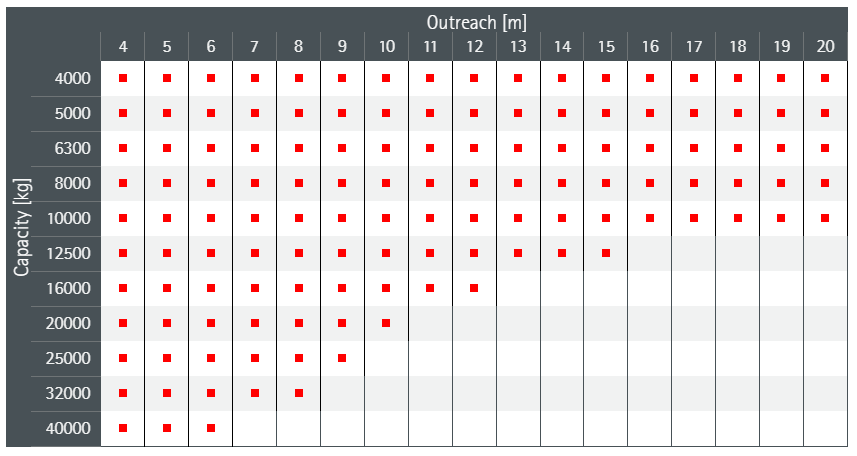

Outreach (m) 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Capacity (kg)
5000 x x x x x x x x x x x x x x x x x
6300 x x x x
