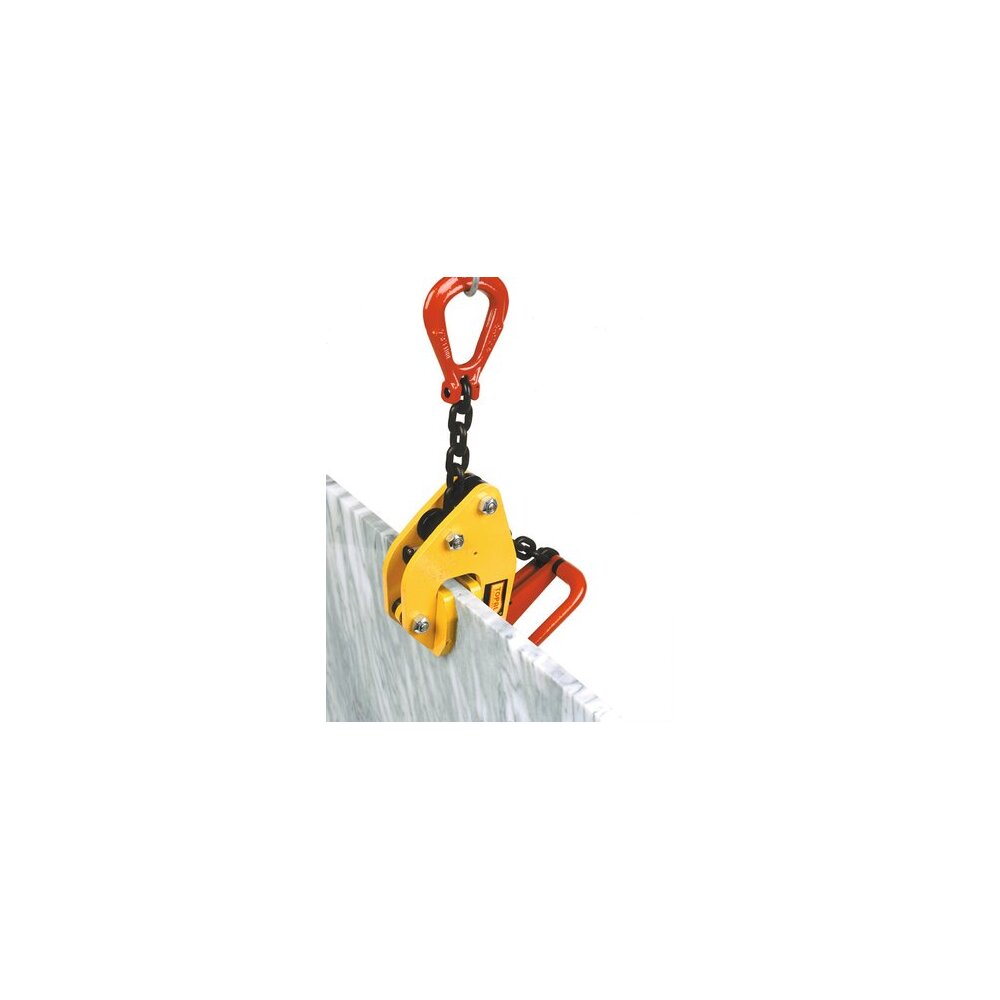

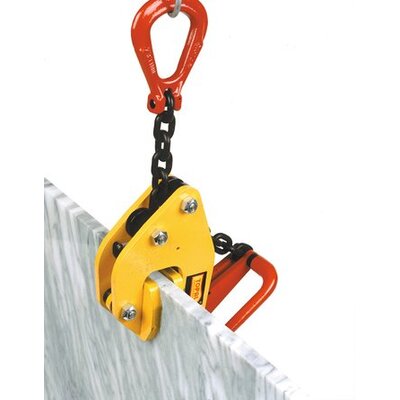

Lifting and tilting of smooth or polished pieces such as stainless steel plates, aluminum, pre-coated materials, wood, laminated materials, marble, concrete, glass, plastic. Clamps equipped with polyurethane-covered jaws allow lifting and tilting loads without marking their surface. These products feature a spring safety system and an automatic gripping mechanism, ensuring constant contact of the cam on the piece to be lifted, even when it is being set down, and ensuring the clamp closes when the sheet is positioned at the bottom of the throat. A handle facilitates gripping. The chain enables tilting and facilitates the placement of the clamp.
Automatic Lifting Clamp NX-NXR fulfill the Machinery Directive 2006/42/EC.
- Material: Manufactured without load bearing welds
- Marking: CE-marked
- Temperature range: -20° up to +80°C
- Finish: Hot epoxy coating
- Warning: Never lift peole with this equipment !
