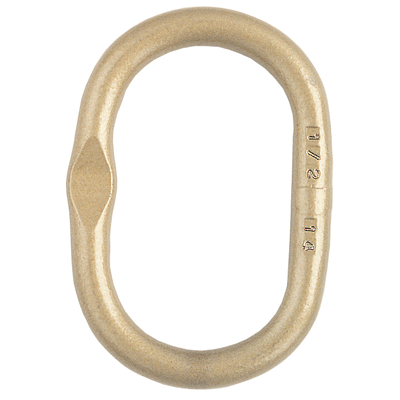

Features:

  • Individually Proof Tested to values shown, with certification.
  • Proof Tested with 70% inside width special fixtures sized to prevent localized point loading per EN 1677-4
  • Large inside width and length to allow additional room for sling hardware and crane hook.
  • Engineered Flat for use with S-1325A coupler link.
  • 12mm through 32mm have Engineered Flat.
  • Material: Alloy steel, quenched and tempered.
  • Marking: According to standard, Manufacturers name, traceability code.
  • Standard: EN 1677-4
  • Safety factor: 5:1
  • Grade: 8
Crosby
A344_dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
For chain Ø 1-leg
mm
For chain Ø 2-leg
mm
B
mm
C
mm
A
mm
Weight
kg
CAD
130433 1.6 7 6 60 120 12 0.3
150493 2.5 8 7 60 120 13 0.36
103447 4.1 10 8 90 160 17 0.86
155553 6.3 13 10 145 275 22 2.39
150272 6.7 13 10 90 160 19 1.08
11.011257214 6.7 13 10 80 150 20 1.17
158400 8.5 16 13 90 170 22 1.59
16905 8.5 16 13 100 180 22 1.63
150550 8.9 16 13 145 275 25 3.35
168394 11.5 18-19 16 100 190 25 2.31
100839 11.5 18-19 16 115 210 25 2.43
154208 12.9 18-19-20 16 110 210 28 3.22
107938 13 18-19-20 16 145 275 28 3.91
108171 17 22 18-19 145 275 31 4.86
11.011257442 17 22 18-19 140 270 32 5.3
107937 24 26 20-22 155 285 36 6.87
108172 28.1 26 20-22 160 300 40 8.96
153925 31.5 32 26 140 270 38 7.63
11.011257569 32 32 26 140 250 45 10.31
11.011257564 38.3 32 26 170 320 45 12.7
108173 38.3 32 26 180 340 45 12.82
11.011257582 45 32 200 380 50 17.6
142134 45 32 215 390 51 18.72
11.011257652 65.3 203 406 57 24.5

*Ultimate Load is 5 times the Working Load Limit. Applications with wire rope and synthetic sling generally require a design factor of 5. **Proof Test Load equals or exceeds the requirement of ASTM A952(8.1) and ASME B30.9.
