• Ordinary right hand lay
  • Bright
  • Not to be used with swivel

Special full steel rope with IWRC

In PAWO F7S the fiber component of the F7 steel core was replaced by a steel strand, thus achieving an even higher metallic cross-section plus an even higher breaking strength.

This full steel rope is primarily used in installations where the rope service life is more affected by the impact of permanent bends than by wear from the traction sheave. The steel wire rope core minimizes rope elongation in comparison to the types F3 and F7. As a consequence, the rope is particularly suitable for high-rise applications with many bending cycles.

Properties

  • medium and high-rise
  • intermediate to high number of bending cycles
  • normal to heavy usage levels
  • low stretch
  • long service life

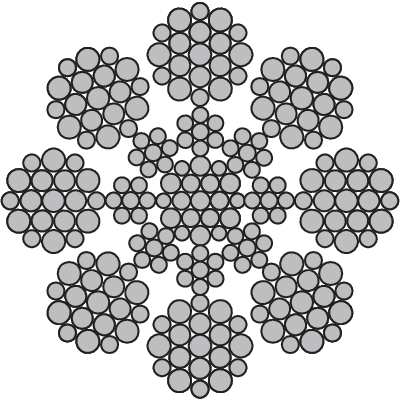

  • Rope construction: 8x19 Warrington with steel core.
  • Marking: According to standard
  • Standard: EN 12385-5
  • Elevator Steel wire rope for use in elevators
Gustaf_Wolf_PAWO_F7S
Select a row from the table below, then click the add to quote button
Part Code Rope diameter Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
01.B10F7S080D 8 44,6 28
01.B10F7S090D 9 56 35,6
01.B10F7S100D 10 69,5 43,6
01.B10F7S110D 11 83,1 52,3
01.B10F7S120D 12 98,9 61,9
01.B10F7S130D 13 116 72,7
01.B10F7S140D 14 134,8 85,7
01.B10F7S150D 15 152,8 95,9
01.B10F7S160D 16 176,1 110
01.B10F7S180D 18 218,6 138
01.B10F7S190D 19 245,2 154
01.B10F7S200D 20 270,8 170
