DRAKO 250T

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Bright
  • Galvanized
  • Not to be used with swivel
  • 8-strand steel wire rope with steel core
  • very low D/d ratio of up to 8 mm in diameter
  • required drive torque is greatly reduced
  • cost saving drives possible
  • space saving in indirect hydraulic elevators thanks to very small pulley
  • Features: This rope is successfully used in diameters up to 13mm as a governor rope.
  • Rope construction: 8x19W-IWRC
  • Marking: According to standard
  • Standard: EN 12385-5
  • Elevator Steel wire rope for use in elevators

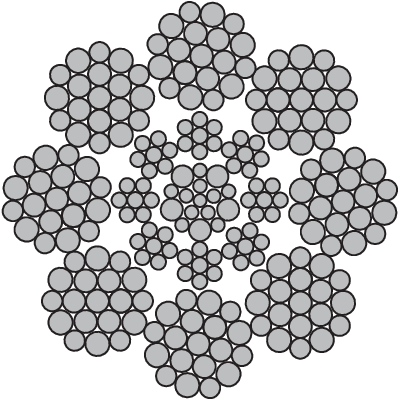

Drako 250T elevator wire rope core structure
Drako 250T elevator wire rope core structure
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm		 Steel Area
mm²		 Min. breaking force
kN
1770 N/mm²		 Min. breaking force
kN
1570 N/mm²		 Weight
kg/100m
01.B10O25060E 6 17,1 26,8 16,4
01.B10O25065E 6,5 20,7 31,5 17,9
01.B10O25080D 8 30,9 46,6 43,3 27,3
01.B10O25090D 9 38,6 54,8 34,3
01.B10O25100D 10 49,2 72,7 67,7 42,3
01.B10O25110D 11 60,1 81,9 51,2
01.B10O25120D 12 69,6 97,4 61
01.B10O25130D 13 83,9 114 71,5
01.B10O25140D 14 96 133 82,9
01.B10O25160E 16 124 173 108
