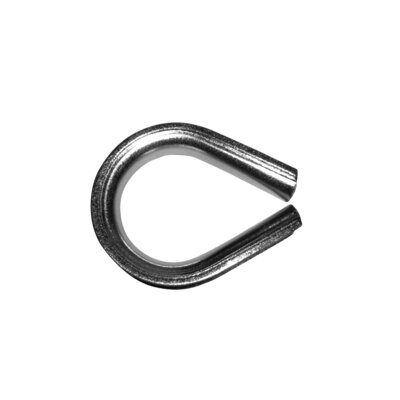

General: Large opening thimble





  • Material: Steel
  • Finish: Zinc plated up to diameter 22 (included), galvanized from diameter 24 mm. Cut up to diameter 6 mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm

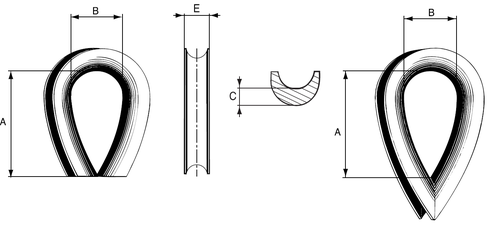

Dimensions AxB
mm
Thickness c
mm
width e
mm
Weight
gr
CAD
327 6 40 x 25 2 10 25
328 8 49 x 31 2.5 12 40
329 10 60 x 37 4 15 75
330 12 68 x 43 4 17 125
331 14 78 x 49 5 20 185
332 16 87 x 55 5 22 240
333 18 92 x 58 5 25 325
334 20 98 x 62 5 27 460
335 22 105 x 66 6 29 540
336 24 110 x 70 6.5 31 575
337 26 115 x 73 6.5 35 890
338 28 120 x 77 6.5 38 1,085
339 30 127 x 81 7 40 1,200
340 32 134 x 85 7 42 1,250
341 35 150 x 98 7 43 1,300

Download CAD
