Open Wedge Socket Tailgrip OWS-TG with Pin

The tailgrip open wedge socket with pin is a fast detachable socket. It is suitable for usage in a sub-zero temperature environment

Basket and wedge in quenched and tempered cast steel. Wedge and basket are designed for easy installation and optimal wire rope efficiency and with the added benefit to terminate the tail to the wedge itself.

  • Material: Quenched and tempered cast steel
  • Marking: According to standard, CE-marked, All parts are fully traceable to their certificate by batch or serial number marked on each component.
  • Temperature range: - 40°C to + 110°C - Use at higher temperatures possible with reduction of WLL.
  • Finish: Blue painting or hot dipped galvanized
  • Standard: EN 10204
  • Warning: The efficiency of a 6 and 8 strand wire rope/wedge socket connection is 80% of the minimum breaking load of the wire but limited to the minimum breaking load of the socket (MBL).

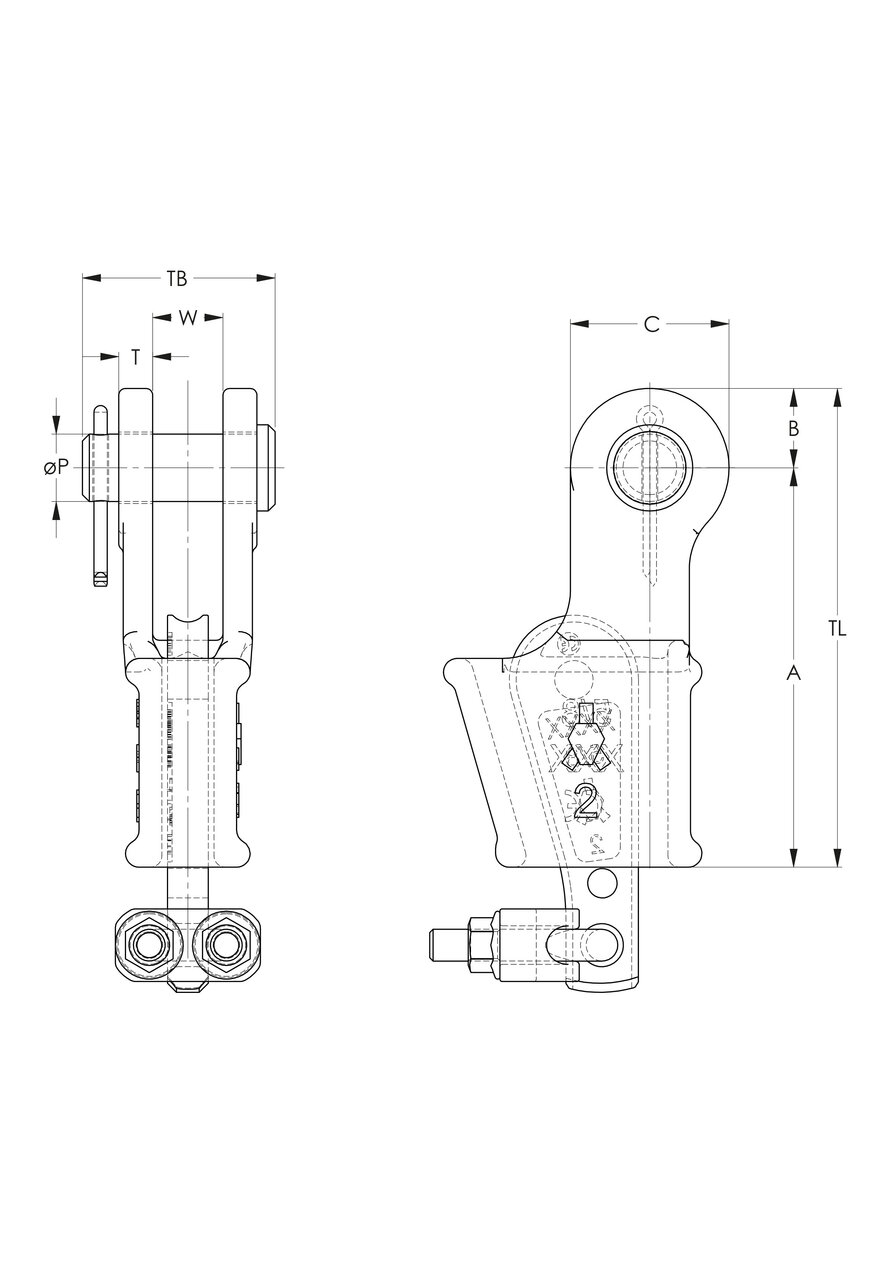

Open Wedge Socket Tailgrip OWS-TG with Pin Tailgrip open wedge socket OWS-TG
Select a row from the table below, then click the add to quote button
Part Code MBL
ton		 Finish For wire Ø
mm		 A
mm		 B
mm		 C
mm		 øP
mm		 T
mm		 TL
mm		 TB
mm		 W
mm		 Weight
kg		 CAD
10.20OWSTG05G 12 Galvanized 9-10 145 23 46 21 11 168 63 21 1.9
10.20OWSTG05P 12 Painted 9-10 145 23 46 21 11 168 63 21 1.9
10.20OWSTG1G 20 Galvanized 11-13 157 29 57 25 12 185 67 25 2.4
10.20OWSTG1P 20 Painted 11-13 157 29 57 25 12 185 67 25 2.4
10.20OWSTG2G 25 Galvanized 14-16 190 35 70 30 15 225 85 31 5
10.20OWSTG2P 25 Painted 14-16 190 35 70 30 15 225 85 31 5
10.20OWSTG3G 40 Galvanized 18-19 210 40 80 35 16 250 95 38 8
10.20OWSTG3P 40 Painted 18-19 210 40 80 35 16 250 95 38 8
10.20OWSTG4G 55 Galvanized 20-22 252 48 95 41 18 300 110 44 11
10.20OWSTG4P 55 Painted 20-22 252 48 95 41 18 300 110 44 11
10.20OWSTG5G 75 Galvanized 23-26 298 55 110 51 22 353 128 51 16
10.20OWSTG5P 75 Painted 23-26 298 55 110 51 22 353 128 51 16
10.20OWSTG6G 90 Galvanized 27-29 322 65 130 57 25 387 142 57 23
10.20OWSTG6P 90 Painted 27-29 322 65 130 57 25 387 142 57 23
10.20OWSTG7G 100 Galvanized 30-32 350 73 146 63 28 423 155 63 34
10.20OWSTG7P 100 Painted 30-32 350 73 146 63 28 423 155 63 34

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
