Fast Connector Socket FCS

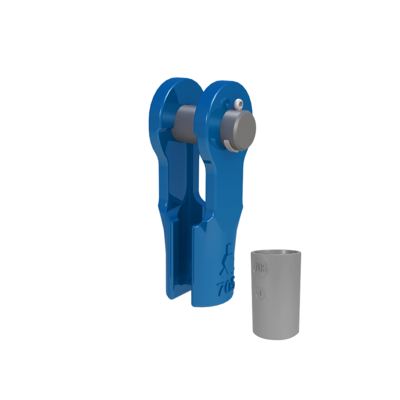

Forged clevis fittings with Pin and cutterpin for fast connection of steel wire rope. Can be used to terminate all constructions of wire rope including high performance ropes, anti-rotation ropes and standard 6 strand ropes.
The connector has to be moulded / casted on the steel wire rope with wirelock resin.


  • Features: Designed for use with mobile cranes.
  • Material: Quenched and tempered cast steel.
  • Finish: Blue painted (P) or hot dip galvanized (G).
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Fast Connector Socket FCS
Select a row from the table below, then click the add to quote button
Part Code Code MBL
ton		 Finish TB
mm		 TL
mm		 For wire Ø
mm		 A
mm		 B
mm		 C
mm		 Ø H
mm		 Ø P
mm		 T
mm		 W
mm		 D
mm		 Ø D
mm		 Ø J
mm		 K
mm		 Weight CAD
01-7015013P FCS 701 P 20 P 67 150 11-13 62 61 27 15 25 12 25 50 33 49 46 1.6
01-7015016P FCS 702 P 25 P 85 182 13-16 72 78 32 18 30 14 32 58 38 60 59 2.6
01-7015019P FCS 703 P 40 P 95 218 16-19 85 93 40 21 35 16 38 70 45 70 69 4.5
01-7015023P FCS 704 P 55 P 110 253 20-22 102 106 45 24 41 19 44 80 50 82 81 6.5
01-7015026P FCS 705 P 75 P 128 298 23-26 115 123 60 28 51 22 51 104 60 95 90 11
01-7015026PSR FCS 705 P.SR 75 P 128 298 23-26 115 123 60 28 51 22 51 104 60 95 90 11
01-7015029P FCS 706 P 90 P 142 357 27-29 140 152 65 32 57 25 57 114 70 107 116 16
01-7015029PSR FCS 706 P.SR 90 P 142 357 27-29 140 152 65 32 71 25 57 114 70 107 116 16
01-7015032P FCS 707 P.SR 125 P 155 382 30-32 150 159 73 36 63 28 63 126 80 119 120 18
01-7015036P FCS 708 P.SR 125 P 160 404 33-36 160 171 73 39 64 28 69 126 85 125 130 23
01-7015032PSR FCS 709 P.SR 150 P 177 443 37-39 176 187 80 42 70 30 76 142 90 136 142 29
01-7015036PSR FCS 710 P.SR 170 P 187 474 40-42 188 198 88 45 76 33 76 156 95 142 150 36
01-7015058PSR FCS 711 P.SR 225 P 215 542 43-48 210 232 100 52 89 39 89 176 110 167 175 58
All codes with SR are suitable for Spin Resistant  Steel Wire Ropes


















Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
