Stainless steel rotating eyebolt does not swivel under load.
A hexagon head screw can be used as a clamping device.

  • Material: Duplex steel
  • Marking: CE-marked, WLL, Supplier, Origin, Code article, Traceability number.
  • Finish: Pickled
  • Safety factor: 4:1
  • Grade: 6
Select a row from the table below, then click the add to quote button

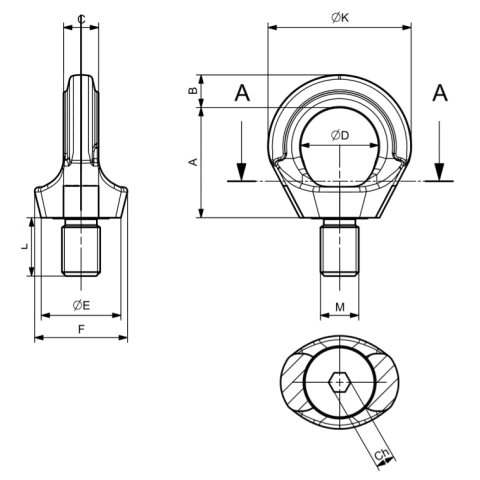

Part Code WLL
ton
Thread
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
K
mm
L
mm
CH
mm
Weight
kg
CAD
11.44C6X807HT12 0.5 M12 43 12.5 11.5 30 30 36.5 55.5 18 8 0.2
11.44C6X807HT16 1 M16 49.5 14.5 15.7 35 35 41.8 64.5 24 10 0.35
11.44C6X807HT20 2 M20 58 16 18 40 42 51.5 74.5 30 12 0.6
11.44C6X807HT24 2.5 M24 69 20.5 22 49 50 58 90 36 12 1
