General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- Short design for increased lifting height.
- Safety latch with locking pin.
- C3M finish in signal yellow.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

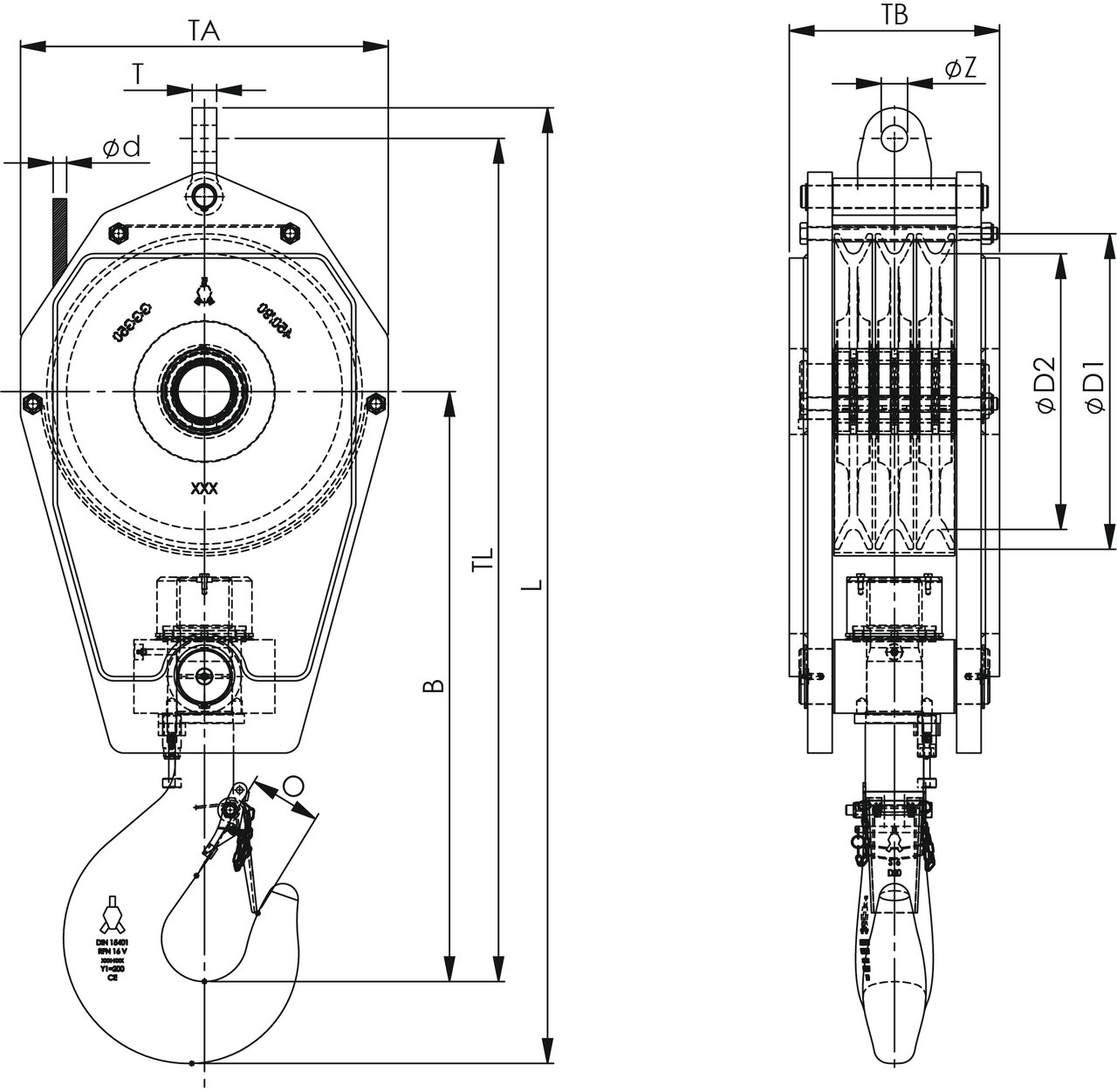

WLL
ton
Model no. For wire Ø
mm
Hooksize Ø D1
mm
Ø D2
mm
B
mm
O
mm
TA
mm
TB
mm
TL
mm
L
mm
T
mm
Ø Z
mm
Weight
kg
25 SRB 260 .14 .3 .25 .E 14 8 300 260 658 69 400 260 953 1 088 28 32 210
25 SRB 260 .16 .3 .25 .E 16 8 300 260 658 69 400 260 953 1 088 28 32 210
29 SRB 285 .16 .3 .29 .E 16 8 325 285 668 69 400 270 978 1 113 28 32 210
29 SRB 320 .16 .3 .29 .E 16 8 365 320 713 69 450 240 1 048 1 183 28 32 225
32 SRB 355 .19 .3 .32 .E 19 10 410 355 753 76 500 262 1 093 1 244 35 37 325
40 SRB 360 .19 .3 .40 .E 19 12 410 360 839 84 500 362 1 179 1 342 35 37 455
40 SRB 400 .22 .3 .40 .E 22 12 460 400 864 84 570 353 1 244 1 412 40 43 500
50 SRB 400 .22 .3 .50 .E 22 16 460 400 864 97 570 353 1 244 1 426 40 43 500
50 SRB 400 .22 .3 .50 .E 22 16 460 400 864 97 570 373 1 244 1 426 40 43 540
63 SRB 450 .22 .3 .63 .E 22 16 515 450 963 97 600 343 1 376 1 558 40 43 680
63 SRB 450 .24 .3 .63 .E 24 16 515 450 963 97 600 383 1 376 1 568 45 52 770
63 SRB 450 .26 .3 .63 .E 26 16 515 450 963 97 600 383 1 376 1 568 45 52 770
80 SRB 528 .26 .3 .80 .E 24 20 595 528 1 132 110 710 462 1 612 1 822 45 52 1 270
80 SRB 528 .26 .3 .80 .E 26 20 595 528 1 132 110 710 462 1 612 1 822 45 52 1 270
100 SRB 528 .26 .3 .100 .E 26 25 595 528 1 223 132 710 462 1 683 1 913 45 52 1 270
100 SRB 528 .28 .3 .100 .E 28 25 595 528 1 223 132 710 462 1 683 1 923 50 59 1 270
125 SRB 670 .28 .3 .125 .E 28 25 760 670 1 353 132 870 642 1 918 2 158 50 59 2 900
125 SRB 670 .32 .3 .125 .E 32 25 760 670 1 353 132 870 642 1 918 2 163 60 66 2 900
