Range of diameter
|
Total numbers of wires
|
Outer strands number of wires
|
Number of wire break at discard
|
|
|
|
|
|||
|
|
|
|
Regular Lay
|
|
Lang`s Lay
|
|
|
|||
|
|
|
|
6 x d
|
30 x d
|
6 x d
|
30 x d
|
Fill factor
|
|||
|
10 - 17
|
196
|
112
|
5
|
10
|
2
|
5
|
0,7
|
|||
|
18 - 26
|
224
|
112
|
5
|
10
|
2
|
5
|
0,7
|
|||
|
28 - 48
|
245
|
112
|
5
|
10
|
2
|
5
|
0,7
|
|||
|
50 - 66
|
595
|
272
|
11
|
22
|
6
|
11
|
0,7
|
|||
|
68 and +
|
910
|
416
|
17
|
33
|
8
|
17
|
0,7
|
|||
NOTOR HP Wire Rope
Product information
General: Notor HP Regular or Lang lay. We recommend the Notor HP for high lifting applications: tower cranes, mobile cranes, crawler cranes, offshore operating cranes or any high lift hoisting device requiring high rotation resistance, MBL and lifespan performances.
• High rotation-resistance properties
• Very high breaking load resistance
• High service life performance
• High level performance on multiple layer coiling system thanks to strand compaction
• Excellent resistance to crushing

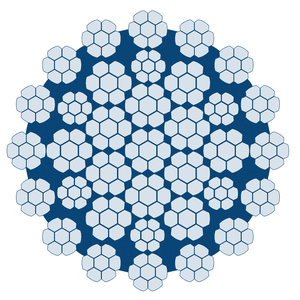

• 16 outer strands over a Warrington steel core
• Compacted inner and outer strands
• Lang lay on request
• Drawn galvanized wires 1960 or 2160 N/mm²
• Range of diameters from 10 to 125 mm
- Marking: According to standard
- Standard: EN 12385-4
-
Offshore crane
-
Tower crane
-
Winch rope
-
Offshore crane
-
Truck crane
-
Mobile port crane
-
Offshore crane
-
Offshore crane
-
Offshore crane
-
Offshore crane
-
Mobile crane
-
Crawler crane
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Galvanized and is manufactured with a tensile strength of 1960, 2160 N/mm².The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
Does this steel wire rope have any special design or performance features?
This steel wire rope is compacted, resulting in a smoother surface, higher breaking load, and improved wear resistance compared to standard wire rope constructions. This steel wire rope is designed to be rotation resistant, minimizing torque and rotation under load. It is particularly suitable for lifting applications involving single-line operation or long lifting heights.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with Multistrand strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general It is manufactured with an ordinary left-hand lay (zS), offering similar performance characteristics to right-hand ordinary lay but designed for specific directional or equipment requirement It is manufactured with a right-hand lang lay (zZ), offering increased abrasion resistance and extended service life in applications where surface wear is a critical factor. It is manufactured with a left-hand lang lay (sS), providing enhanced wear resistance and longer service life where high surface durability is required.
