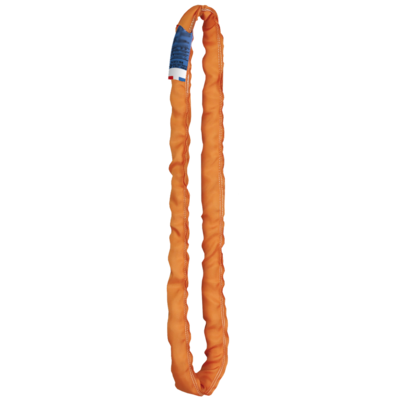

Round sling - Double sleeve side stitch

General: Round sling – Double sleeve side stitch
The side stitch allows a rounder and therefore more homogeneous sling, particularly adapted to lift heavy loads.



Design: High resisting blue pvc label sewn on the sling.
Stretch with working Load: for textile slings


Instructions of use : Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings. DO NOT USE DAMAGED SLINGS.
Storage : Store in a cool, dry and protected from sunlight area.
Maintenance : Never dry sling near a fire or any source of heat.




  • Material: Fibre core and sleeve : 100% polyester high tenacity multifilament fibres.
  • Marking: According to standard, Manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions.
  • Temperature range: For textile slings: From -40°C to +100°C.
  • Standard: EN 1492-2
Product Image 1
Product Image 2
Product Image 1
Product Image 2

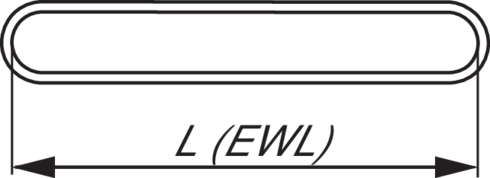

Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code Working load limit WLL (ton) Parallel M=2 Working load limit WLL (ton) β = 0 to 45º M=1,4 Working load limit WLL (ton) β = 45 to 60º M=1 Working load limit WLL (ton) Choker lifting M=0,8 Diameter1 leg
mm		 Working load limit WLL (tons) Vertical Lift M=1 Colour Weight
kg/m		 CAD
12.21ECC/8 16 11,2 8 6,4 45 8 Blue 1.7
12.21ECC/10 20 14 10 8 50 10 Orange 2.3
12.21ECC/15 30 21 15 12 60 15 Orange 3.4
12.21ECC/20 40 28 20 16 65 20 Orange 4.3
12.21ECC/25 50 35 25 20 70 25 Orange 5
12.21ECC/30 60 42 30 24 80 30 Orange 5.7
12.21ECC/40 80 56 40 32 95 40 Orange 7.2
12.21ECC/50 100 70 50 40 105 50 Orange 9
12.21ECC/60 120 84 60 48 115 60 Orange 10.5
12.21ECC/70 140 98 70 56 120 70 Orange 11.7
12.21ECC/80 160 112 80 64 130 80 Orange 14
12.21ECC/90 180 126 90 72 135 90 Orange 16
12.21ECC/100 200 140 100 80 140 100 Orange 18

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
