General: Round sling – Double sleeve, middle stitch
This round sling is particularly recommended for the metal frameworks lifting.
The middle stitch gives a better capacity to the fibres that are grouped together to support the effort uniformly.
Flexible endless sling with double sleeve, middle stitch.
Configuration: Endless sling including a bearing fibre core in textile wire totally protected in a double woven sleeve.


Label informations : manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions.

Stretch with working Load: for textile slings


Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings. DO NOT USE DAMAGED SLINGS.
Storage : Store in a cool, dry and protected from sunlight area.
Maintenance : Never dry sling near a fire or any source of heat
.




  • Material: Fibre core and sleeve : 100% polyester high tenacity multifilament fibres.
  • Marking: According to standard, High resisting blue pvc label sewn on the sling.
  • Temperature range: From -40°C to +100°C
  • Standard: EN 1492-2
  • Warning: :
  • Safety factor: 7:1

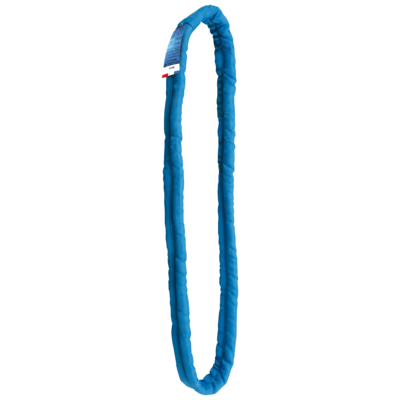

Product Image 1
Product Image 2
Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code Diameter(1leg)
mm
Working load limit WLL (ton) Vertial lift M=1 Working load limit WLL (ton) Parallel M=2 Working load limit WLL (ton) β = 0 to 45º M=1,4 Working load limit WLL (ton) β = 45 to 60º M=1 Working load limit WLL (ton) Choker lifting M=0,8 Weight for 1st meter
kg
Colour CAD
12.20ECM/1 20 1 2 1,4 1 0,8 0,37 violet
12.20ECM/2 25 2 4 2,8 2 1,6 0,5 Green
12.20ECM/3 30 3 6 4,2 3 2,4 0,7 yellow
12.20ECM/4 37 4 8 5,6 4 3,2 0,95 grey
12.20ECM/5 40 5 10 7 5 4 1,2 Red
12.20ECM/6 43 6 12 8,4 6 4,8 1,3 brown
12.20ECM/8 45 8 16 11,2 8 6,4 1,7 Blue
