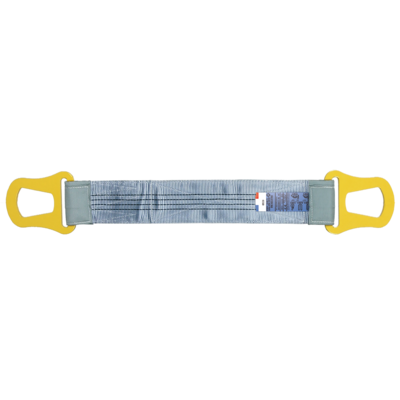

General: Identification : flat webbing sling in woven webbing
Type : Double ply (B type)

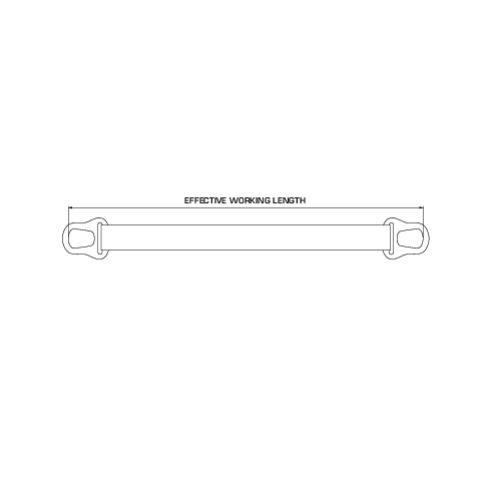

Configuration : Flexible sling consisting of a single element in sewn webbing
Endings : 2 torch cut male rings, category 6.
Traceability : High resisting blue pvc label sewn on the sling.
Instructions of use : Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings. DO NOT USE DAMAGED SLINGS.
Storage : Store in a cool, dry and protected from sunlight area.
Maintenance : Never dry sling near a fire or any source of heat.
Design: Textile sleeve, 100% polyester, sewn at the two endings to reinforce an protect the eyes
- Material: 100% polyester multifilament fibers of high tenacity
- Marking: According to standard, Manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions.
- Temperature range: From -40°C to +100°C.
- Standard: EN 1492-1
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
|

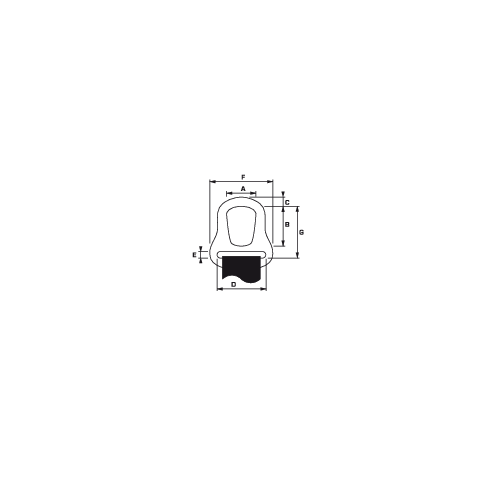

Male buckle for flat webbing sling Cat. 6
|
|
|
|
|
|
|||||
|
WLL (tons)
|
4
|
5
|
6
|
8
|
10
|
|||||
|
A (mm)
|
85
|
85
|
105
|
114
|
107
|
|||||
|
B (mm)
|
110
|
110
|
120
|
145
|
141
|
|||||
|
C (mm)
|
29
|
27
|
30
|
44
|
48
|
|||||
|
D (mm)
|
137
|
158
|
198
|
252
|
305
|
|||||
|
E (mm)
|
18
|
20
|
20
|
20
|
25
|
|||||
|
F (mm)
|
178
|
198
|
258
|
328
|
390
|
|||||
|
G (mm)
|
148
|
155
|
170
|
210
|
212
|
|||||
