General: Flat webbing sling in woven webbing
Type : Double ply (B type)
Configuration : Flexible sling consisting of a single element in sewn webbing
Endings : 1 triangular male ring made of steel, 1 female ring made of steel, category 5
Traceability : High resisting blue pvc label sewn on the sling.
Instructions of use : Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings. DO NOT USE DAMAGED SLINGS.
Storage : Store in a cool, dry and protected from sunlight area.
Maintenance : Never dry sling near a fire or any source of heat.

.

Design: Textile sleeve, 100% polyester, sewn at the two endings to reinforce an protect the eyes









  • Material: 100% polyester multifilament fibres of high tenacity
  • Marking: According to standard, Manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions
  • Temperature range: From -40°C to +100°C.
  • Standard: EN 1492-1

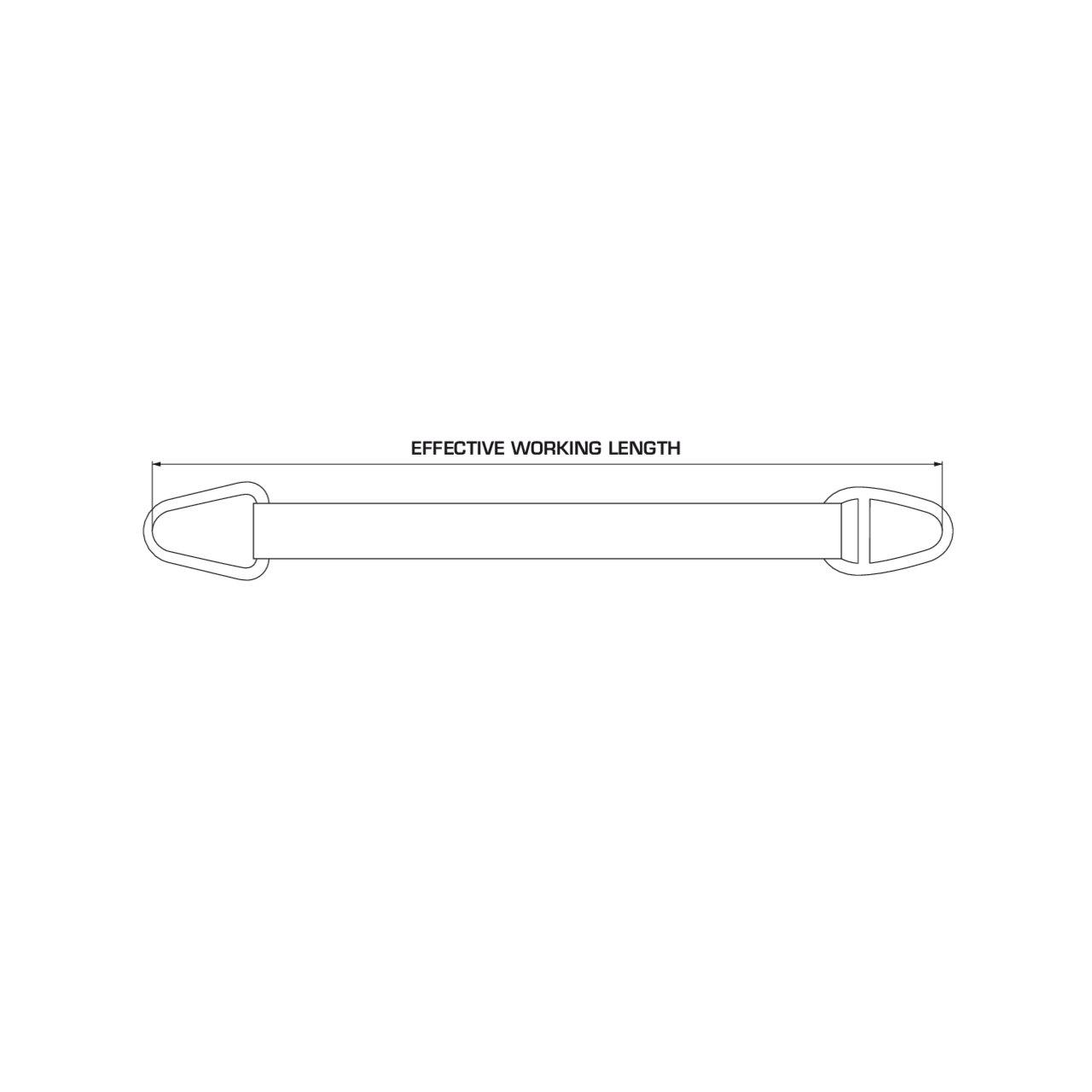

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL Thickness
mm
Width
mm
Working load limit WLL (ton) β = 0 to 45º M=1,4 Working load limit WLL (ton) β = 45 to 60º M=1 Working load limit « WLL » (ton) U Lift M=2 Working load limit (WLL) (tons) Choke hitch M=0,8 Weight for 1st meter (g) Weight for additional m (g) Colour CAD
12.35B30/5 1 6 30 1,4 1 2 0,8 850 200 violet
12.30B50/5 1.5 6,1 50 2,1 1,5 3 1,2 1,300 300 Khaki
12.30B60/5 2 6,5 60 2,8 2 4 1,6 1,900 400 Green
12.30B75/5 2.5 7 75 3,5 2,5 5 2 2,600 450 white
12.30B90/5 3 7 90 4,2 3 6 2,4 3,600 550 yellow
12.30B120/5 4 7 120 5,6 4 8 3,2 5,100 800 grey
12.30B150/5 5 7,5 150 7 5 10 4 8,750 1,000 Red
12.30B180/5 6 7,5 180 8,4 6 12 4,8 10,000 1,200 brown
12.30B240/5 8 8 240 11,2 8 16 6,4 17,000 1,700 Blue
12.30B300/5 10 8 300 14 10 20 8 23,500 2,250 Orange
M = form factor for symmetric loading. Handling tolerance for slings or parts of slings indicated as vertical = 6º.
*No standardized values

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

New Table

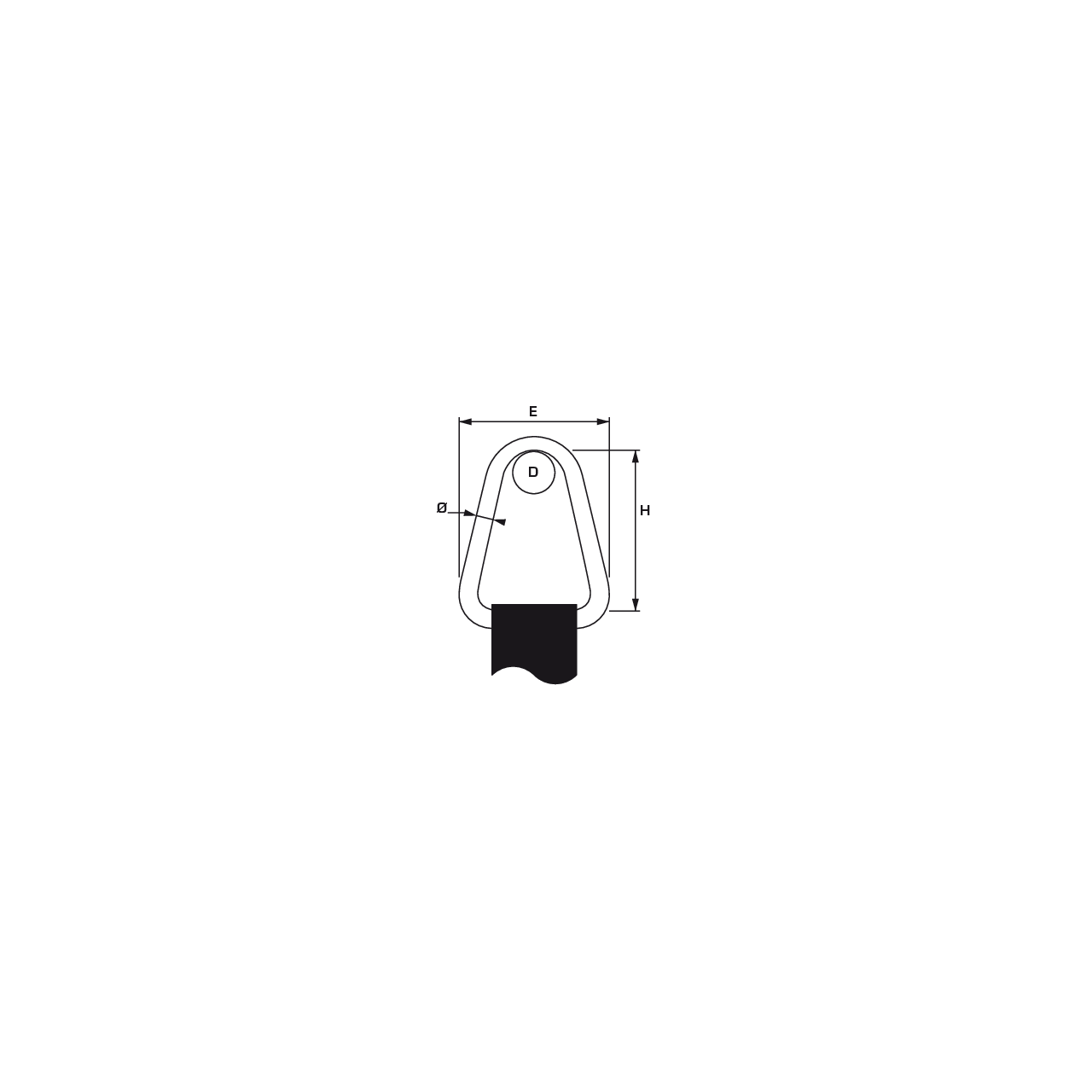

Male buckle for flat webbing sling Cat. 5










WLL (tons)
1
1,5
2
2,5
3
4
5
6
8
10
Ø (mm)
12
14
16
18
20
23
25
28
32
35
Webbing width (mm)
30
50
60
75
90
120
150
180
240
300
D (mm)
30
40
82
32
40
45
55
55
60
75
E (mm)
72
86
104
127
144
180
220
260
340
400
H (mm)
64
80
100
98
119
132
185
180
202
250



New Table

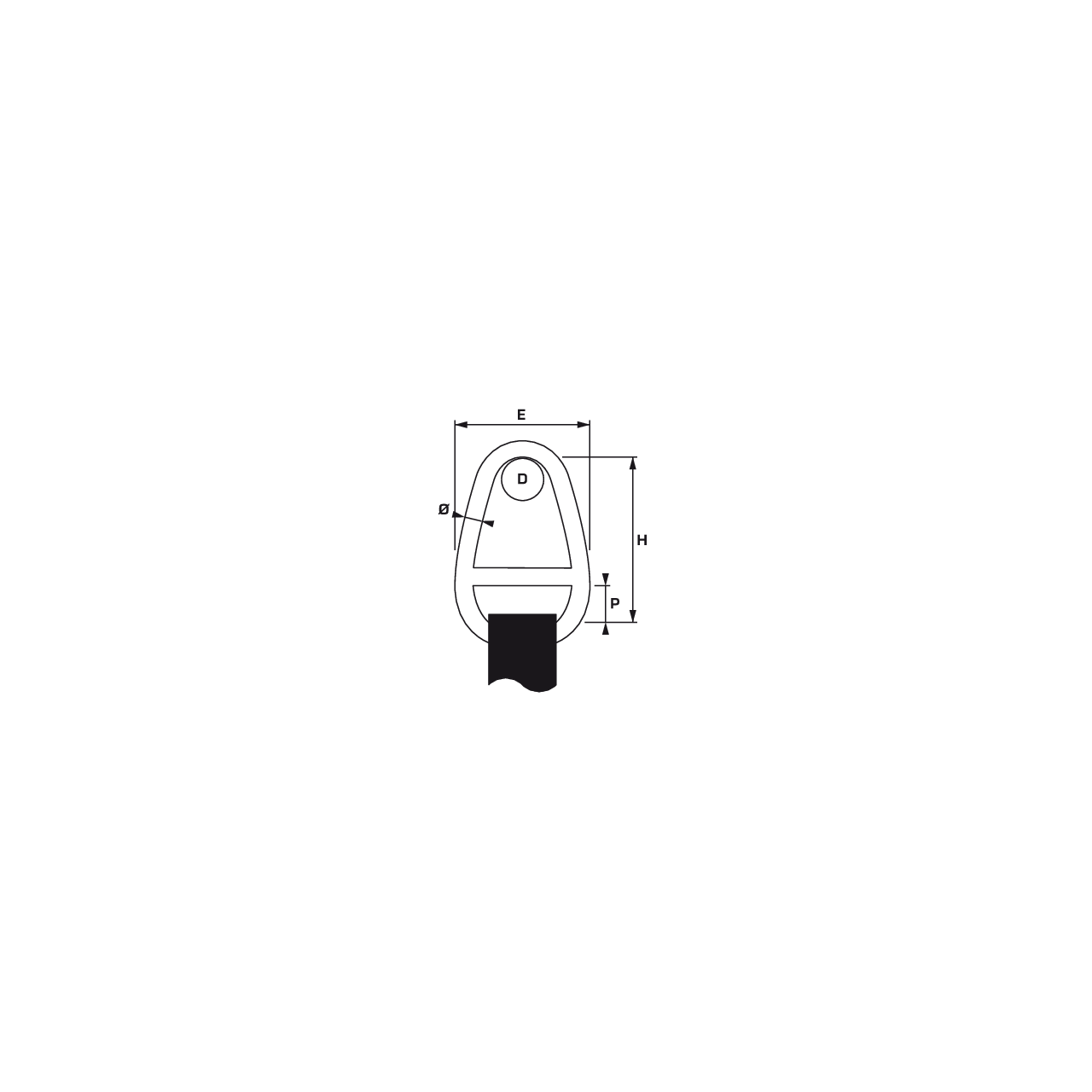

Female buckle for flat webbing sling Cat. 5










WLL (tons)
1
1,5
2
2,5
3
4
5
6
8
10
Ø (mm)
12
14
16
18
20
23
26
28
32
35
D hook passage (mm)
35
33
40
45
50
55
65
65
70
75
E (mm)
104
124
147
178
203
245
290
345
435
495
P (mm)
25
36
46
52
56
57
82
81
91
100
H (mm)
103
139
161
181
205
215
300
285
340
385
