POWERTEX Chain Sling G10 in Box PCSB-A-026

Our smart chain sling system in Grade 10 consists of 1-leg and 2-leg slings that can be used directly from the box.

The smart slings can instantly be combined on the crane hook to lift loads that require 3 or 4 legs to be used.

Features:

  • Multifunctional chain slings Grade 10 packed in bo

Show more

Show table
Product number:
Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

Our smart chain sling system in Grade 10 consists of 1-leg and 2-leg slings that can be used directly from the box.

The smart slings can instantly be combined on the crane hook to lift loads that require 3 or 4 legs to be used.

Features:

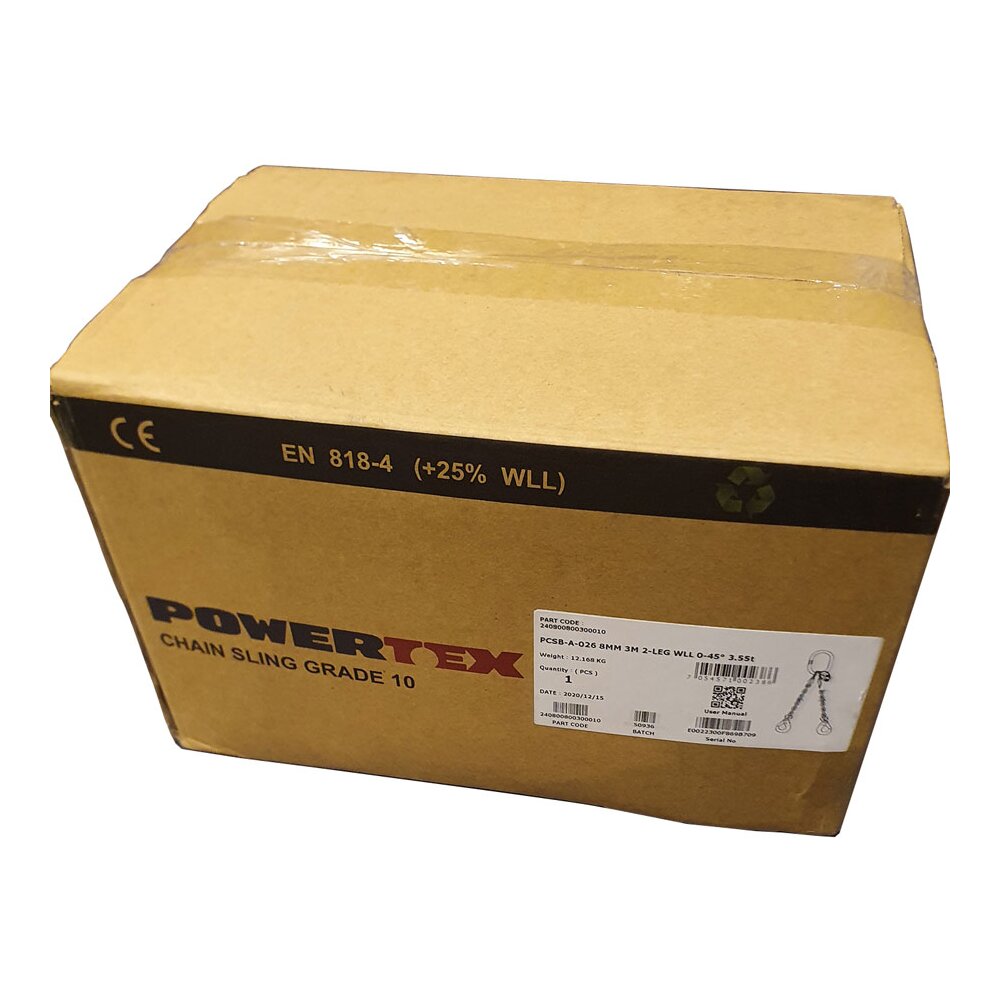

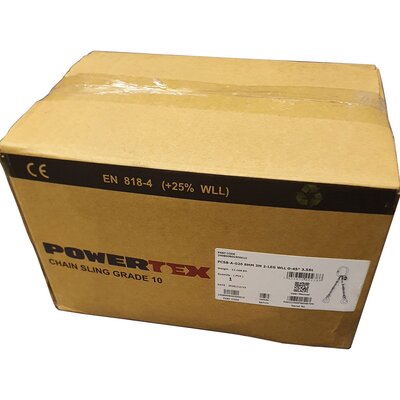

  • Multifunctional chain slings Grade 10 packed in box having all necessary markings and documents and ready for use

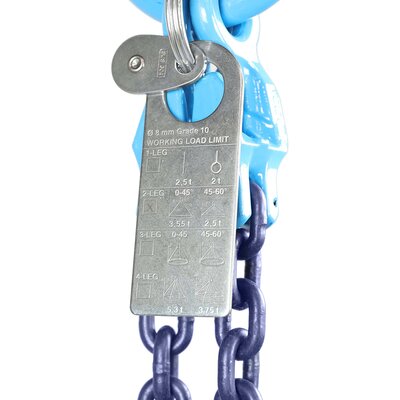

  • The smart stainless steel sling tag gives information of the WLL for the sling as configurated, but also when used in any 1-4 leg PCSB combination

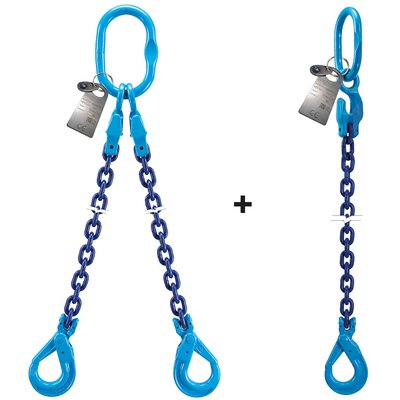

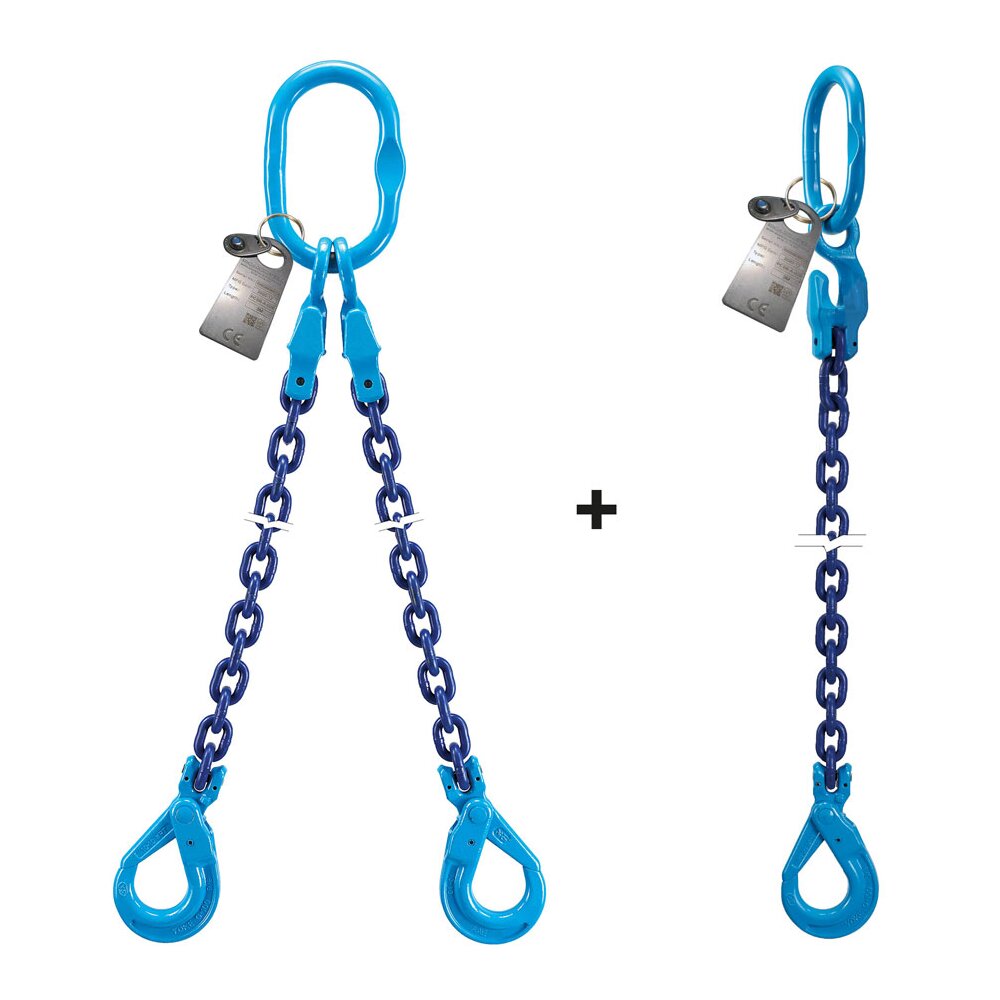

  • Two 1-leg or 2-leg PCSB slings can easy and safely be combined on the crane hook to perform 2-leg, 3-leg and 4-leg lifting operation thanks to the smart sling tag
  • 2-leg slings can also safely be used in a 1-leg lifting operation as adequate information is given on the smart sling tag (Non-used leg should be hooked to the master link to avoid snagging)
  • +25% higher lifting capacity (WLL) compared to standard Grade 8 slings
  • Light weight thanks to the smart, multifunctional top com­ponents
  • Cost effective compared to conventional slings thanks to use of multifunc­tional components
  • Shortening function is integrated in the master link connector allowing the chain legs to be adjusted instantly
  • Shortening can be made from either side of the shortener which is a safety advantage compared to shortening clutch.
  • No reduction of WLL when shortening the chains thanks to the well-designed shortening pockets
  • Robust self-locking safety hooks are standard
  • Safe - Each welded master link and chain link is proof load tested in the factory 2,5 x WLL prior delivery
  • Safe - Each hook and forged coupling component is crack detection tested and samples are proof load tested in factory prior delivery
  • Components are fatigue rated to +20,000 cycles at 1.5 times the WLL acc to EN-1677 standards
  • Each component is marked with traceability code that gives full traceability to the raw material
  • European made lifting chains
  • The chains are stamped with traceability code that gives full traceability to the raw material
  • The chain slings are chromium 6 free

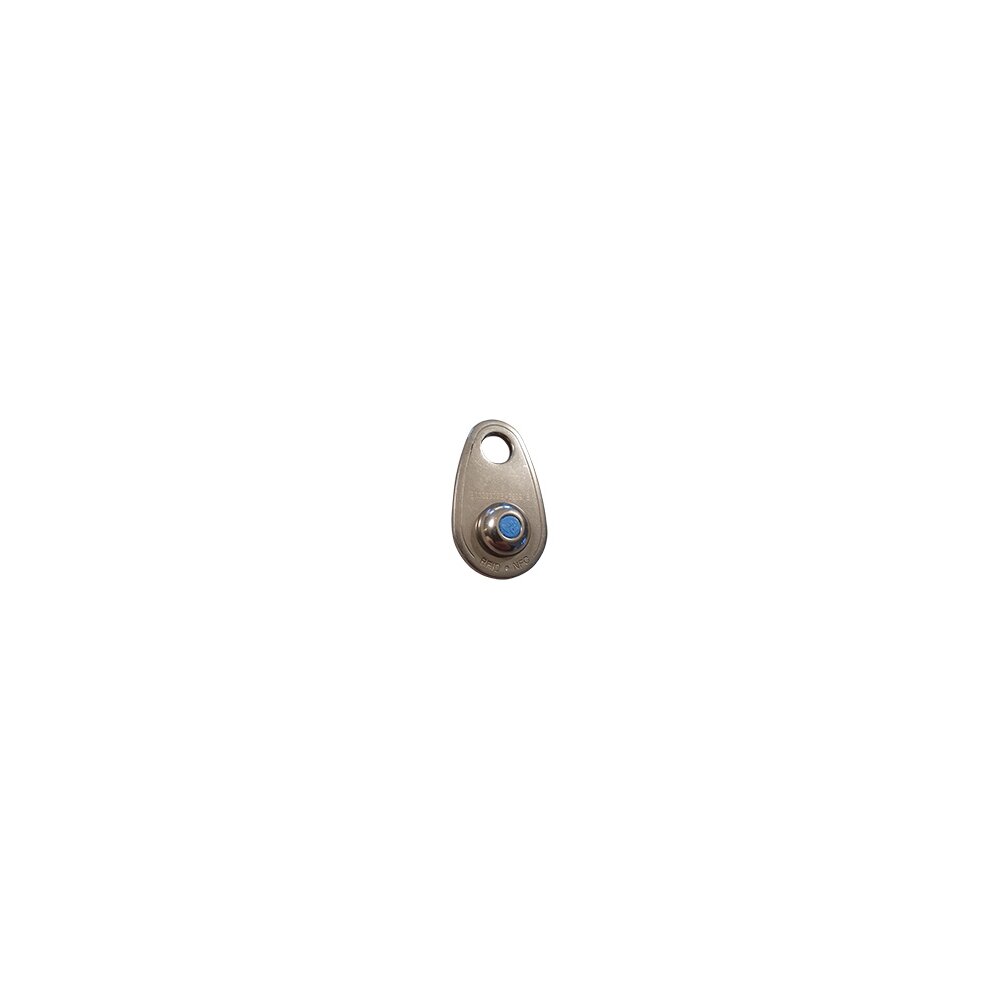

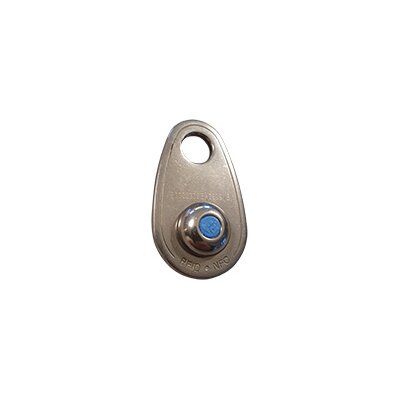

  • The slings are equipped with a drop shaped stainless RFID tag (HF 13,56 Mhz)
  • QR code for on-site access to Multilanguage user manuals
  • Fulfills EN 818-4 (+25 % WLL) and the Machinery Directive 2006/42/EC
  • POWERTEX 2.2 Certificate & EC Declaration of Conformity in 14 languages enclosed
  • POWERTEX User Manual in 14 languages enclosed
  • Material: Quenched and Tempered Alloy Steel of Grade 10 quality
  • Marking: According to standard, CE-marked, WLL, Chain size, Length, Grade 10, Serial number, MFG date, QR code leading to user manual
  • Temperature range: -40ºC up to +200°C without reduction of WLL
  • Finish: Painted blue
  • Standard: EN 818-4
    (+ 25% WLL) and ASTM A973
  • Safety factor: 4:1
  • Grade: 10

Chain Sling Grade 10

EN 818-4, but with higher WLL

Safety Factor 4:1

Chain Ø 1-part 2-part 3-4-part Endless
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60 andlos-rakt andlos-snarat andlos-uform
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Max last (WLL) i ton
6 1,40 1,12 2,80 2,00 1,40 3,00 2,12 2,80 2,24 5,60
7 1,90 1,50 3,80 2,65 1,90 4,00 2,80 3,80 3,00 7,60
8 2,50 2,00 5,00 3,55 2,50 5,30 3,75 5,00 4,00 10,00
10 4,00 3,15 8,00 5,60 4,00 8,40 6,00 8,00 6,30 16,00
13 6,70 5,30 13,40 9,50 6,70 14,00 10,00 13,40 10,60 26,80
16 10,00 8,00 20,00 14,00 10,00 21,20 15,00 20,00 16,00 40,00
19 14,00 11,20 28,00 20,00 14,00 30,00 21,20 28,00 22,40 56,00
20 16,00 12,80 32,00 22,40 16,00 33,60 24,00 32,00 25,60 64,00
22 19,00 15,00 38,00 26,50 19,00 40,00 28,00 38,00 30,00 76,00
26 26,50 21,20 53,00 37,50 26,50 56,00 40,00 53,00 42,50 106,00
32 40,00 31,50 80,00 56,00 40,00 85,00 60,00 80,00 64,00 160,00
Factor (KL) 1 0,8 2 1,4 1 2,1 1,5 2 1,6 4
