Tractel

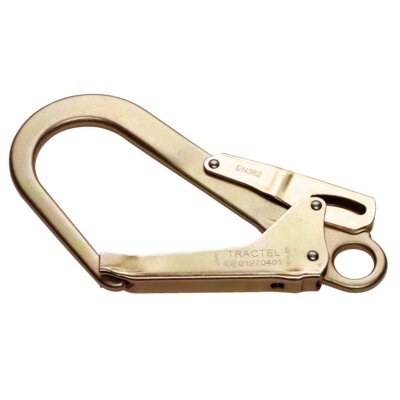

Frequent connection on structures

Double trigger automatic locking

Length 212 mm x Height 102 mm

Opening 53 mm

Breaking Strength 25 kN

Weight 490 g

Use above 100 kg (High Capacity Range 150kg)

  • Material: steel
  • Marking: According to standard
  • Finish: Zinc plated
  • Standard: EN 362
Select a row from the table below, then click the add to quote button
Part Code Min. breaking force
kN
Length
mm
Opening
mm
Height
mm
Weight
gr
CAD
145138 25 212 53 102 490
