General:
Electric winch for loads from 250 up to 1500 kg with low voltage control and 1 speed.
Multifunctional electric winch offering many rope attachments, rope outlets and options. Robust and compact, it benefits of a high operating factor for all kind of applications such as for example: Industrial applications, Building and public works, Theatre applications, Integration into many types of devices, cranes, material lifts etc.

Technical properties:
- Welded steel drum.
- Aluminium casing.
- The low voltage control protects the user from electrical risks.
- Asynchronous, single phase motors (230 V – 50 Hz P=0.75 or 1.1 kW depending on the models)
- Threephase motors (230/400 V – 50 Hz P= 0.75 or 1.1 kW depending on the models).
- Reducer sealed in oil bath with helical gears.
- 24 V or 190 V direct current electromagnetic brake (depending on the models).
- Electrical equipment under sealed cover.
- Very low voltage, 24 V remote control with socket – IP 65 protection.

Optional:
- limit switch.
- Radio control.
- load limiter.
- Lengthened drum models. Wirerope capacity will increase by 1.5 x standard capacity.

Product Image 1
Product Image 2
Currently this product cannot be added to an online quote. Please contact us directly for enquires.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Type
Drum

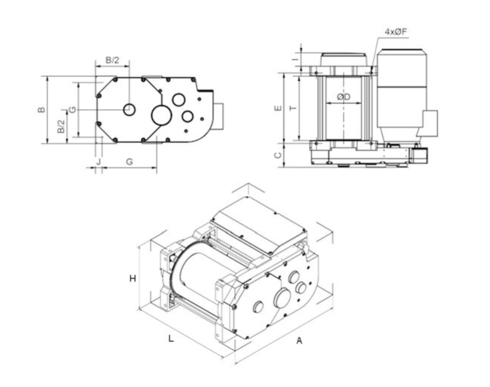

Measurements (mm)













Model
type
A
B
C
Ø D
E
Ø F
G
H
J
K
L
M
N
T
TRBOXTER 250 to 500 kg
standard
462
243
79
121
255
10.5
197
284.5
23
356
419.5
121.5
121.5
230

long
462
243
79
121
370
10.5
197
284.5
23
471
534.5
121.5
121.5
345
TRBOXTER 600 to 1500 kg
standard
554
304
105.5
159
318
12.5
246
332.5
29
493.5
515.5
152
152
290

long
554
304
105.5
159
461
12.5
246
332.5
29
493.5
656
152
152
435
