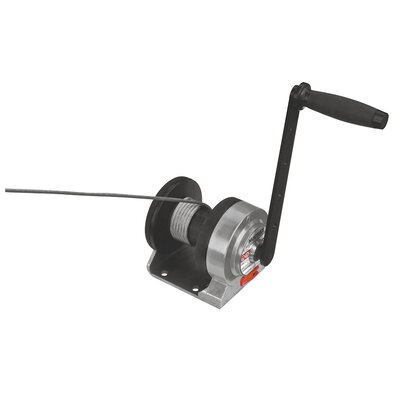

Hand spurgear winch in compact design available in 150 and 300 kg, standard model (with zinc-plated steel mounting plate) or stainless steel model (with stainless steel mounting plate).

Suitable for moderate use both indoor and outdoor.

Applications:

  • Lifting of doors
  • Opening of hatches
  • Moving a boat
  • Scenery handling
  • Lifting equipment

Technical properties:

  • Chassis made of an aluminum frame.
  • Composite drum.
  • Planetary reducer
  • Mounting plate in galvanised steel (standard model) or in 316L anti-corrosion stainless steel (stainless steel model).
  • Flat mounted.
  • 4 fixation points.
  • Removable crank.
  • Free spooling drum, only when not in load.
  • Automatic brake in composite material.
  • Failsafe system for correct rope winding direction (patented).

Options: Wire rope and hook.

  • Material: Aluminum chassi
  • Marking: According to standard, CE-marked
  • Temperature range: -10°C to +50°C
  • Standard: EN 13157
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Weight without wire rope
kg
Capacity 1st layer
kg
Number of layers Lift per crank revolution
mm
Max. crank effort
kg
Max. drum capacity
m
TIREX 150 0,25 4 3,7 250 6 40 8 24
TIREX 150 INOX 0,25 4 3,7 250 6 40 8 24
TIREX 300 0,4 5 3,7 400 3 41 14 8,5
TIREX 300 INOX 0,4 5 3,7 400 3 41 14 8,5
The wire rope diameter corresponds to the capacity on the top layer with a safety coefficient of (about) 5 when lifting with non-rotation wire rope.
