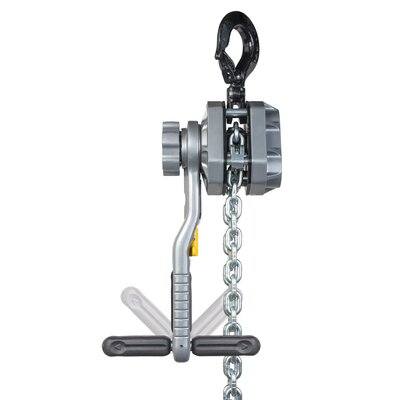

Redefining lever-operated hoists, the YaleERGO 360 features the revolutionary crank handle that allows for efficient operation in both lifting and pulling applications. Ergonomically designed for increased safety, the patent-pending YaleERGO 360 lets the operator to work up to 12 times faster and with as much as 30 % less pull force than with conventional ratchet lever tools.

Benefits & features:
- Crank handle.
- Convenient directional indicator.
- Easy & smooth free chaining.
- Built to last.
- Excellent corrosion protection.
- Easy-to-inspect swivel hooks.

Options:
- Internal load limiter.
- RFID.

Important:
Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.

  • Safety factor: 4:1

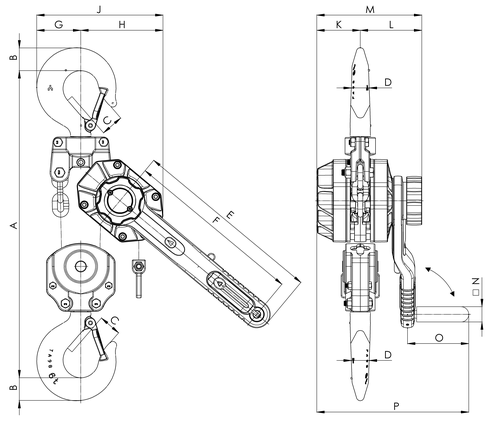

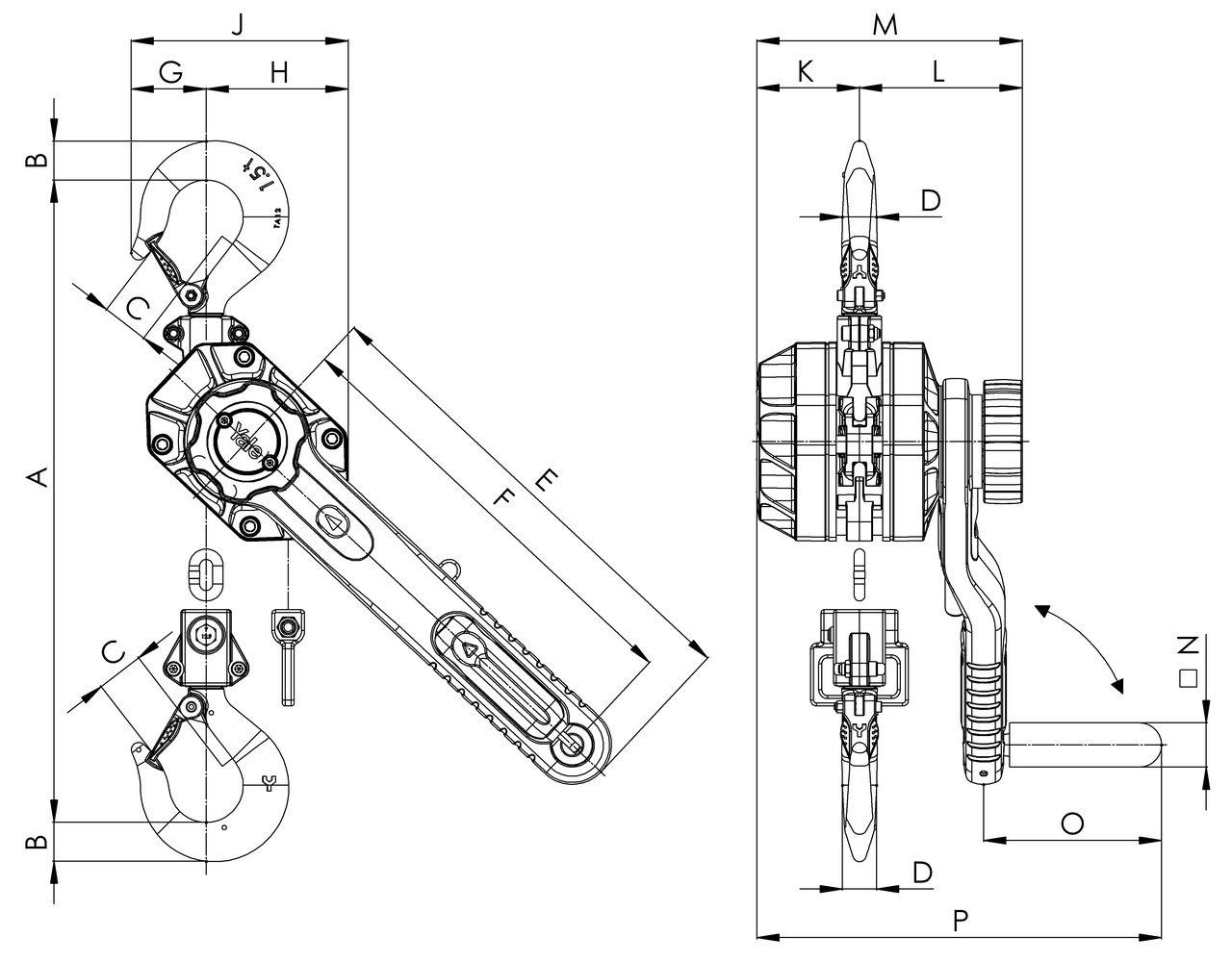

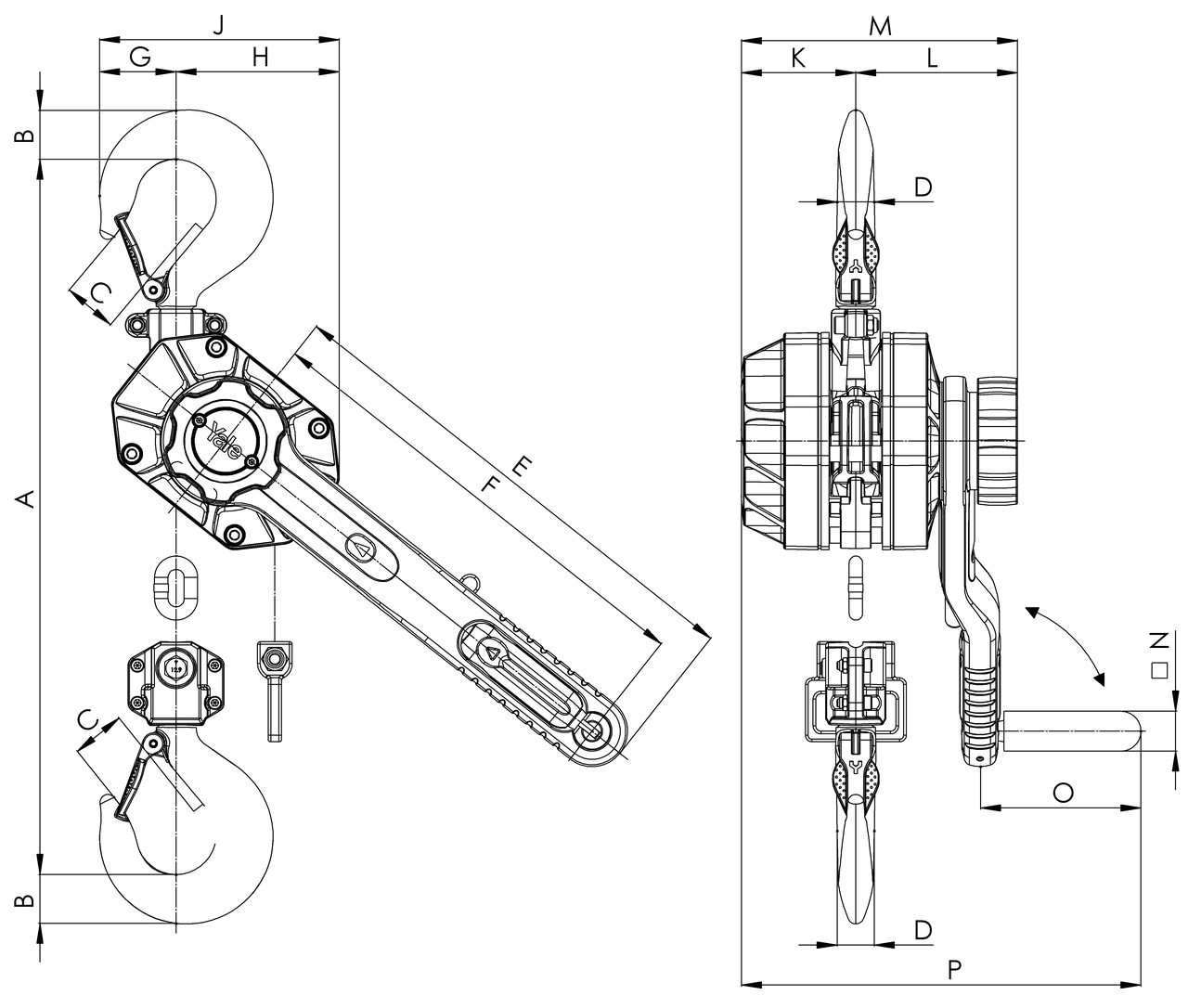

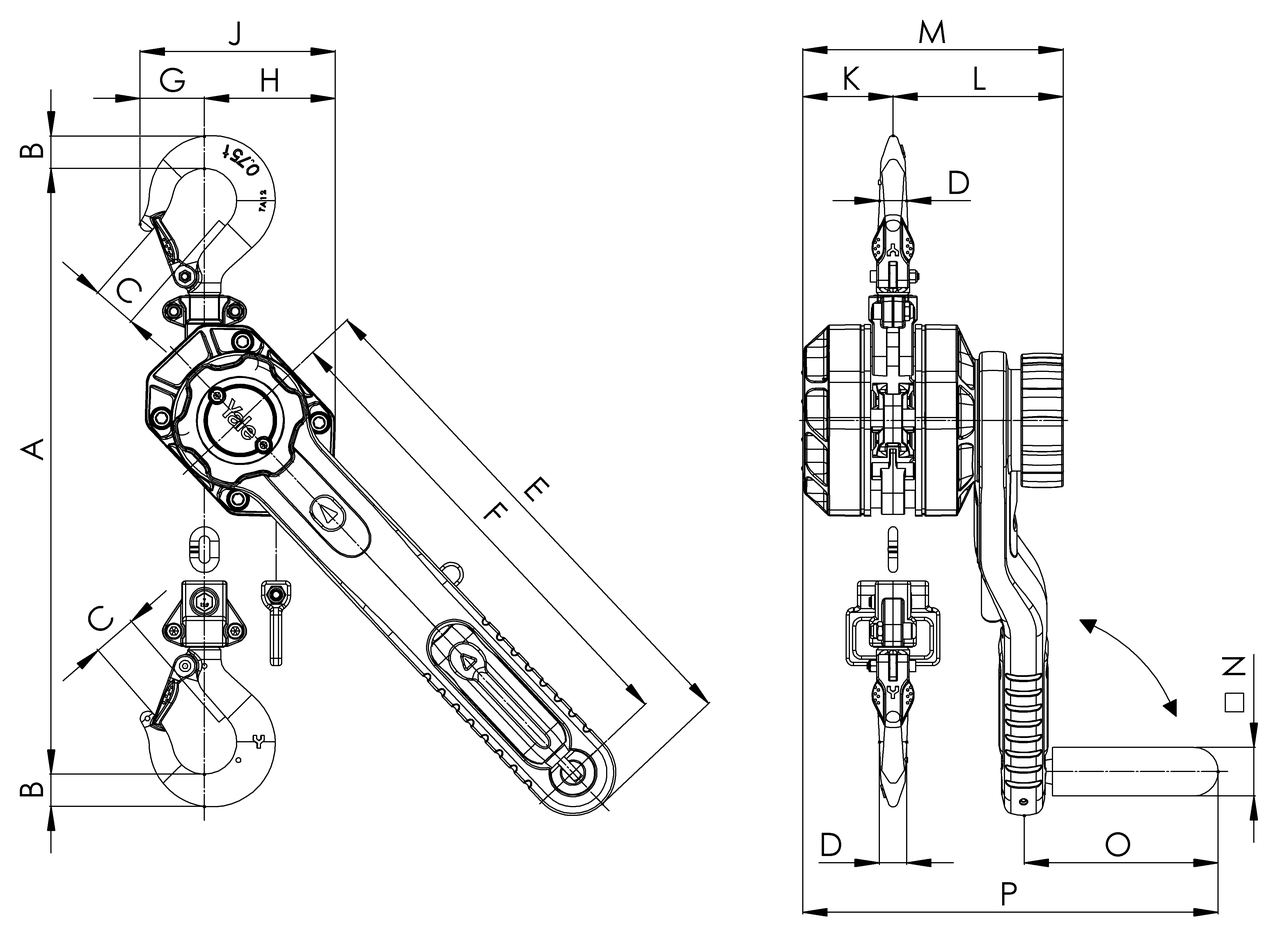

YaleErgo 0.75t drawing YaleErgo 1.5t drawing YaleErgo 3t drawing YaleErgo 6t drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Model Number of falls EAN-No. 4053981** Chain dimensions dxp
mm
Lift with one full lever turn
mm
Handle pull at WLL
daN
Weight at standard lift (1,5m)
kg
16.20979625 0,75 1,5 YaleERGO 360 750 1 **979625 5.6 x 17.1 27,2 20 6,6
16.20979632 1,5 1,5 YaleERGO 360 1500 1 **979632 7.1 x 21 21,7 26,5 9,5
16.20979649 3 1,5 YaleERGO 360 3000 1 **979649 10 x 28 20,1 36 16,8
16.20981055 6 1,5 YaleERGO 360 6000 2 **981055 10 x 28 10,1 38 28,6
16.20984995 9 1,5 YaleERGO 360 9000 3 **984995 10 x 28 6,7 40 49,5
