Manual Chain Hoist KITO CX Series - Traction Levage

Home / PRODUCTS / LIFTING DEVICES / HOISTS AND TROLLEYS / Manual Chain Hoist KITO CX Series

The KITO chain block CX has a light-weight aluminium housing, and is the size of a coaster. The hooks are suitable for a larger intake and its compact measures enables maximum lifting height. Flush-mounted screws at the housing reduce the injury risk. The standard chain block is equipped with an overload protection.

Material: High impact aluminium housing, nickel-plated load chain in grade 10.
Marking: Type plate with WLL, CE-marking and serial number.
Finish: Surface treated aluminium.

Safety factor: 4:1.

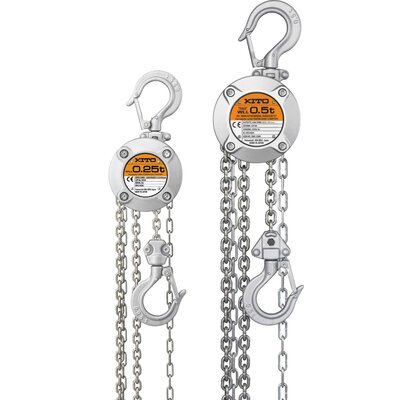

Kito CX 250 kg and 500 kg

Manual Chain Hoist KITO CX Series

Kito CX 250 kg and 500 kg

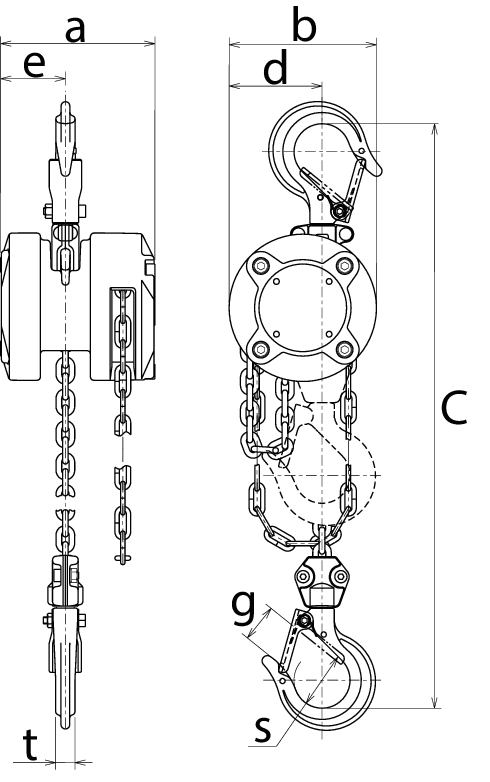

Kito CX003 drawing

Select a row from the table below, then click the add to quote button

	Part Code	Code	WLL ton	Lifting height m	Load chain Ø mm	Chain falls	Hand pull to lift full load in daN	A mm	B mm	C mm	D mm	e mm	g mm	t mm	s mm	Weight kg
	164112	CX003	0,25	2,5	3,2 x 9,0	1	14,7	88	84	217	53	37	21	11	32	2,4
	16.10CX005S025020	CX005	0,5	2,5	4,3 x 12,0	1	18,6	102	102	260	66	44	24,5	12	35,5	4,5

Weight with standard lift 2,5 m.
