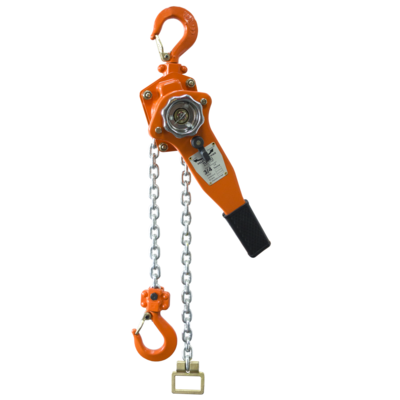

Lever Hoist Turbo HSH-616

  • Lifting capacity from 750 Kg to 3 tons
  • Double breaking pawl
  • Solid end chain
  • Hooks provided with safety latch

According to the Machinery Directive 2006/42/CE

  • Material: Made out of compact and light steel, for a minimum maintenance and a long-lasting lifespan.
  • Marking: CE-marked, Serial number, year of production, height, WLL
  • Finish: RAL 2004 painted
Lever Hoist Turbo HSH-616
Select a row from the table below, then click the add to quote button
Part Code WLL Lifting height
m		 Running test load
kN		 Strands of load chain Load chain Ø
mm		 Crank force to lift full load
N		 A
mm		 B
mm		 C
mm		 D
mm		 H
mm		 L
mm		 K
mm		 Weight CAD
143465 0.75 1.5 11.2 1 6 140 145 86 134 38 340 285 27 9.5
143467 1.5 1.5 22.5 1 8 220 175 100 150 48 380 410 36 11.5
143469 3 1.5 45 1 10 320 195 115 190 50 490 410 38 18.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
