Thern

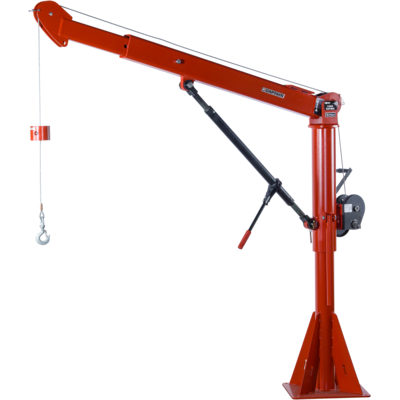

With electric, hydraulic or pneumatic operation, the Captain 2500 rotates 360 degrees and has a quick-disconnect anchor.

  • Load ratings up to 1000 kg
  • Rugged and affordable
  • Manual, drill drivable, electric, hydraulic or pneumatic operation
  • Rotates 360º, stops every 30 degrees
  • Flexibility due to telescopic arm and different angles of the boom
  • Available in 2 finishes, std. red enamel and epoxy finish
  • 2-Year Standard Warranty
  • Proof of load 125% of WLL (optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
Select a row from the table below, then click the add to quote button

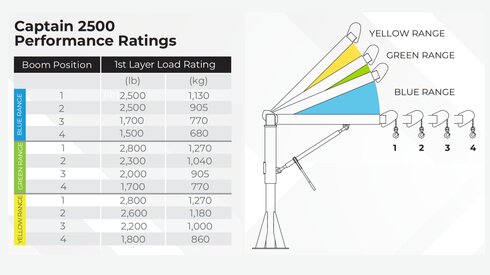

Part Code Capacity max. Reach
kg
Capacity min. Reach
kg
Max. Reach
mm
Min. Reach
mm
CAD
13.155FT25 680 1,000 3,098 1,346

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
