Thern
  • Load ratings up to 300 kg/500 kg
  • Portable, heaviest part 12.7 kg/16.3 kg/34 kg
  • Rugged and affordable
  • Manual or power winch operation
  • 360° rotation
  • Flexibility due to telescopic arm and different angles of the boom
  • Easy, No-Tools Assembly/Disassembly (all individual components less than 12,7 kg // 16.3 kg // 34 kg
  • Variety of bases
  • 2-Year warranty
  • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coated
Select a row from the table below, then click the add to quote button

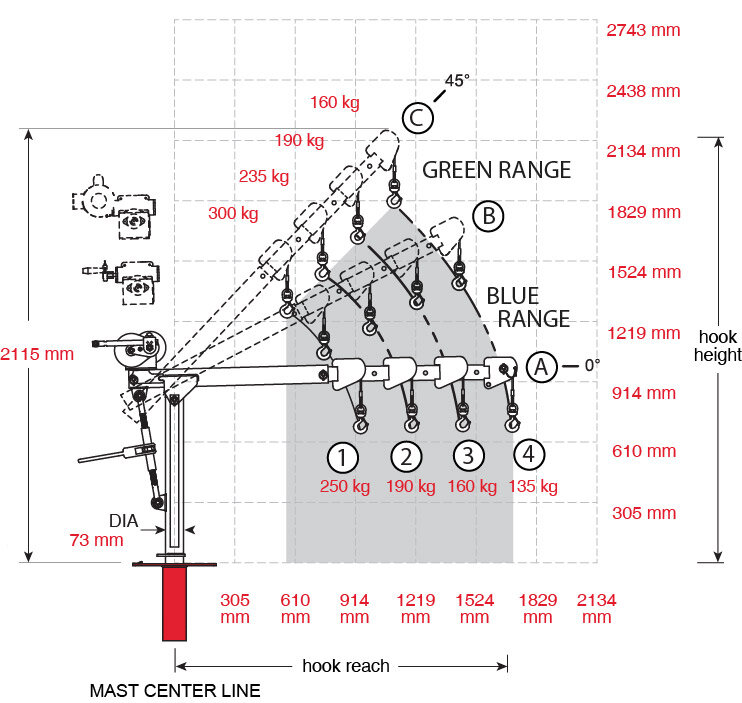

Part Code Capacity max. Reach
kg
Capacity min. Reach
kg
Max. Reach
mm
Min. Reach
mm
CAD

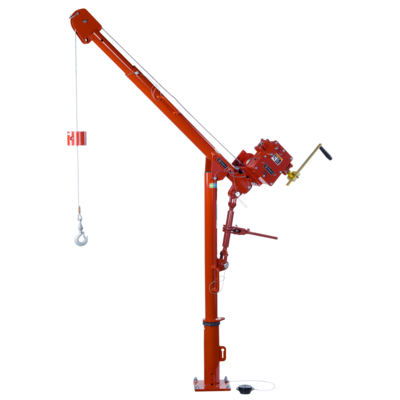

13.155PT5 135 300 1,676 584
13.15PTC10 250 500 1,676 558
13.15PTC20 500 500 2,082 711

Finish: galvanized, stainless 304 & 316 and three part epoxy can be ordered up on request
