General:

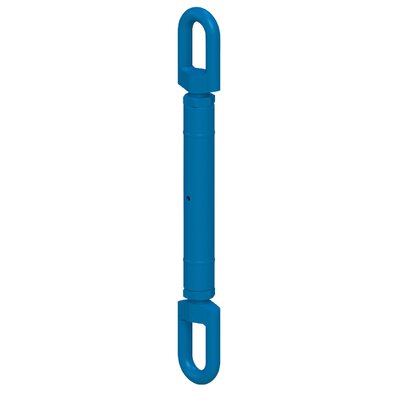

Closed body Turnbuckles oval eye/oval eye with trapezoid thread. Standard supplied with lock nuts.

Features:
- Standard painted blue, but can be supplied in any colour or galvanised.
- Available in all combinations of eyes, stud eyes and welding ends.
- Lock plates or special locking devices possible.
- Can be supplied with turning wheel or rachet.
- Other sizes possible.

  • Temperature range: -40°C t/m +110° C at 100% capacity rating. Higher temperature possible with reduction of WLL.
  • Warning: Straight or in-line pull only.
  • Safety factor: 5.1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Take up
mm
Thread trap. L min.
mm
L max.
mm

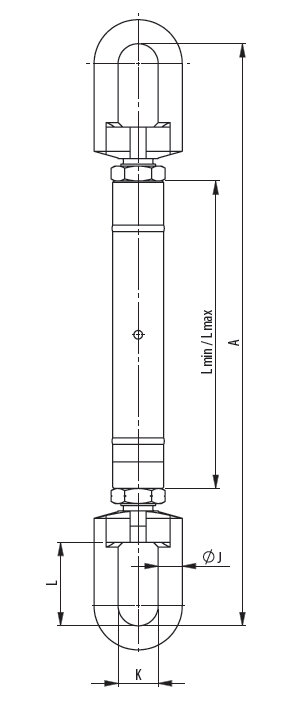

A
mm
J
mm
K
mm
L
mm
Weight
kg
11.55410016022 1,6 167 22 x 5 450 617 240 16 26 58 2
11.55410020022 2 181 24 x 5 470 651 260 16 26 58 3
11.55410025022 2,5 215 28 x 5 534 749 280 20 32 72 5
11.55410031022 3,1 225 30 x 6 554 779 300 20 32 72 6
11.5540040022 4 232 32 x 6 630 862 320 25 40 94 8
11.55410050022 5 242 36 x 6 658 900 340 25 40 94 13
11.55410063022 6,3 270 44 x 7 753 1 023 380 30 45 108 19
11.55410080022 8 296 48 x 8 813 1 109 420 32 50 115 27
11.55410100022 10 306 52 x 8 866 1 172 460 36 60 125 35
11.55410126022 12,6 352 55 x 9 988 1 340 500 40 65 144 46
11.55410160022 16 366 65 x 10 1 070 1 436 540 45 70 163 58
11.55410200022 20 380 70 x 10 1 156 1 536 580 55 75 168 65
11.55410250022 25 402 75 x 10 1 270 1 672 620 60 80 192 90
11.55410315022 31,5 438 80 x 10 1 358 1 796 660 60 90 216 94
