Jaw / Eye Crosby HG-227

Crosby

General:
End fittings are quenched and tempered, bodies heat treated by normalizing.
Turnbuckles eyes are forged and elongated, by design, to maximize easy attachment in system and minimize stress in the eye.
For turnbuckles size 6 mm through 64 mm, a shackle one size smaller can be reeved through eye.
Forged jaw ends are fitted with bolts and nuts for 6mm through 16mm, and pins and cotters on 19 mm through 70 mm sizes.
Modified UNJ thread on end fittings for improved fatigue properties.
Body has UNC threads.

Standard: According to Federal Specifications FF-T-791b.

  • Marking: Logo, size and type.
  • Finish: Hot dipped galvanized.
  • Note:  Turnbuckles recommended for straight or in-line pull only.
  • Safety factor: 5:1

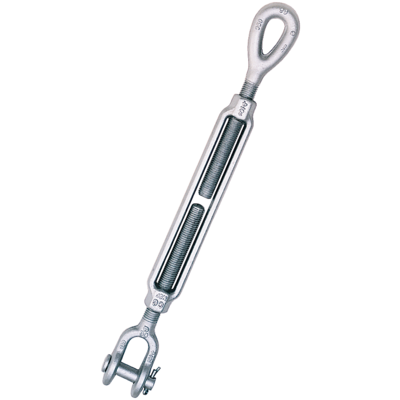

Crosby HG-227 Jaw & Eye Turnbuckle
Crosby HG-227 Jaw & Eye Turnbuckle

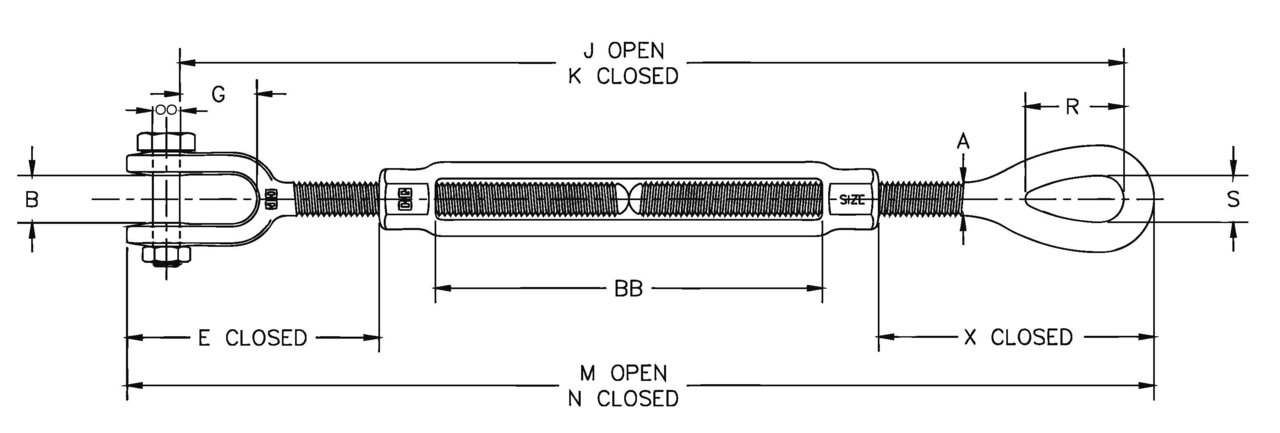

Crosby HG-227 Jaw & Eye Turnbuckle measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Thread dia. & take up
mm		 Thread dia. & take up
inch		 A
mm		 B
mm		 E closed G
mm		 J open K closed M open N closed R
mm		 S
mm		 X closed BB
mm		 Weight
kg		 CAD
1127 0,23 6,35 x 102 1/4 x 4 6,35 11,4 42 16,1 294 192 312 210 20,6 8,64 44,6 103 0,15 -
1128 0,36 7,94 x 114 5/16 x 4-1/2 7,94 12,7 51,2 22,0 343 228 363 249 24,1 11,2 55,8 116 0,24 -
1129 0,54 9,53 x 152 3/8 x 6 9,53 13,5 53,5 21,5 429 277 454 301 28,7 13,5 62,9 155 0,36 -
1130 1 12,7 x 152 1/2 x 6 12,7 16,3 81,8 27,1 490 338 520 368 35,8 18,0 90,4 153 0,8
1131 1 12,7 x 229 1/2 x 9 12,7 16,3 81,3 27,1 650 421 680 451 35,8 18,0 89,9 238 1,02 -
1132 1 12,7 x 305 1/2 x 12 12,7 16,3 81,3 27,1 802 497 832 528 35,8 18,0 89,9 314 1,21 -
1133 1,59 15,9 X 305 5/8 x 6 15,9 20,1 99,1 33,5 527 374 566 413 45,7 22,4 110 153 1,35 -
1134 1,59 15,9 X 229 5/8 x 9 15,9 20,1 98,8 33,5 688 459 727 498 45,7 22,4 110 239 1,69 -
1135 1,59 15,9 X 305 5/8 x 12 15,9 20,1 98,8 33,5 840 535 879 574 45,7 22,4 110 315 1,97 -
1136 2,36 19,1 X 152 3/4 x 6 19,1 24,6 120 38,5 563 411 612 459 53,1 25,4 130 156 2,05 -
1137 2,36 19,1 X 229 3/4 x 9 19,1 24,6 119 38,5 726 497 774 546 53,1 25,4 129 244 2,52 -
1138 2,36 19,1 X 305 3/4 x 12 19,1 24,6 119 38,5 878 573 927 622 53,1 25,4 129 320 2,91 -
1139 2,36 19,1 X 457 3/4 x 18 19,1 24,6 120 38,5 1 183 726 1 232 774 53,1 25,4 130 471 3,69 -
1140 3,27 22,2 X 305 7/8 x 12 22,2 29,5 140 44,8 906 601 963 658 60,5 31,8 147 309 4,13 -
1141 3,27 22,2 X 457 7/8 x 18 22,2 29,5 140 44,8 1 223 766 1 280 822 60,5 31,8 147 476 5,28 -
1142 4,54 25,4 X 152 1 x 6 25,4 34 155 52,1 636 483 701 548 76,2 36,3 165 157 4,55 -
1143 4,54 25,4 X 305 1 x 12 25,4 34 155 52,1 941 636 1 006 701 76,2 36,3 165 309 6,06 -
1144 4,54 25,4 X 457 1 x 18 25,4 34 155 52,1 1 245 788 1 310 853 76,2 36,3 165 462 7,58 -
1145 4,54 25,4 X 610 1 x 24 25,4 34 154 52,1 1 565 956 1 630 1 021 76,2 36,3 164 631 9,33 -
1146 6,89 31,8 X 305 1-1/4 x 12 31,8 46,7 205 71,5 1 035 730 1 117 812 91,2 46,2 216 306 9,48 -
1147 6,89 31,8 X 457 1-1/4 x 18 31,8 46,7 205 71,5 1 340 883 1 422 965 91,2 46,2 216 459 11,3 -
1148 6,89 31,8 X 610 1-1/4 x 24 31,8 46,7 205 71,5 1 659 1 050 1 741 1 131 91,2 46,2 216 625 13,1 -
1149 9,71 38,1 X 305 1-1/2 x 12 38,1 52,3 227 71,4 1 080 775 1 174 869 104 53,8 240 313 13,9
1150 9,71 38,1 X 457 1-1/2 x 18 38,1 52,3 227 71,4 1 384 927 1 479 1 021 104 53,8 240 465 16,3 -
166930 9,71 38,1 X 610 1-1/2 x 24 38,1 52,3 227 71,4 1 705 1 095 1 799 1 189 104 53,8 240 633 18,8 -
1152 12,7 44,5 X 457 1-3/4 x 18 44,5 66,0 238 85,0 1 406 949 1 518 1 061 118 60,5 253 467 23,6 -
1153 12,7 44,5 x 610 1-3/4 x 24 44,5 66,0 238 85,01 1 711 1 101 1 823 1 213 118 60,5 253 619 27,1 -
1154 16,8 51,0 x 610 2 x 24 50,8 66,5 300 95,0 1 846 1 236 1 980 1 370 148 68,3 331 622 40,8 -
1155 27,2 63,5 x 610 2-1/2 x 24 63,5 77,7 337 113 1 932 1 323 2 100 1 490 165 79,2 350 625 71,7 -
11.511032475 34 70,0 x 610 2-3/4 x 24 69,9 93,7 379 106 1 982 1 373 2 176 1 566 178 82,6 383 626 84,6 -

*Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
