Eye / Eye Crosby HG-226

Crosby

General:
End fittings are quenched and tempered, bodies heat treated by normalizing.
Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 6 mm through 64 mm, a shackle one size smaller can be reeved through eye.

Standard: According to Federal Specifications FF-T-791b.

  • Marking: Logo, size and type.
  • Finish: Hot dipped galvanized.
  • Note: Turnbuckles recommended for straight or in-line pull only.
  • Safety factor: 5:1
Crosby HG-226 Eye and Eye Turnbuckle
Crosby HG-226 Eye and Eye Turnbuckle

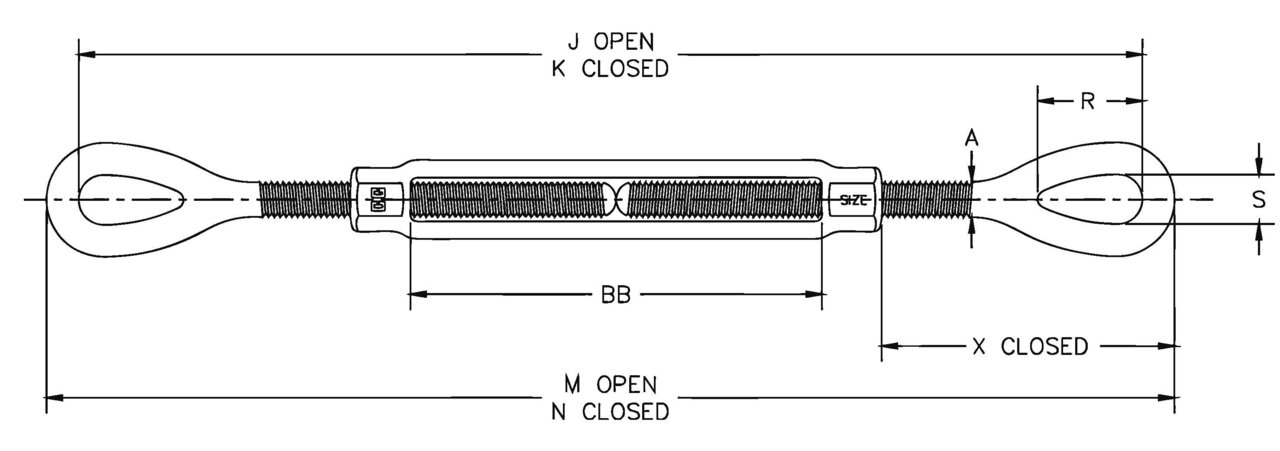

Crosby HG-226 Eye and Eye Turnbuckle measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Thread dia. & take up
mm		 Thread dia. & take up
inch		 A
mm		 J open K closed M open N closed R
mm		 S
mm		 X closed BB
mm		 Weight
kg		 CAD
1097 0,23 6,35 x 102 1/4 x 4 6,35 303 202 314 213 20,6 8,64 44,6 103 0,13 -
1098 0,36 7,94 x 114 5/16 x 4-1/2 7,94 354 239 368 253 24,1 11,2 55,8 116 0,22 -
1099 0,54 9,53 x 152 3/8 x 6 9,53 446 294 463 311 28,7 13,5 62,9 115 0,34 -
1100 1 12,7 x 152 1/2 x 6 12,7 506 354 529 376 35,8 18,0 90,4 153 0,78 -
1102 1 12,7 x 305 1/2 x 12 12,7 819 514 841 536 35,8 18,0 89,9 314 1,19 -
1103 1,59 15,9 x 152 5/8 x 6 15,9 552 399 577 425 45,7 22,4 110 153 1,25 -
1105 1,59 15,9 x 305 5/8 x 12 15,9 865 560 891 586 45,7 22,4 110 315 1,87 -
1106 2,36 19,1 x 152 3/4 x 6 19,1 590 438 622 470 53,1 25,4 130 156 1,91 -
1108 2,36 19,1 x 305 3/4 x 12 19,1 905 600 937 632 53,1 25,4 129 320 2,78 -
11.501031494 2,36 19,1 x 457 3/4 x 18 19,1 1 210 753 1 242 785 53,1 25,4 130 471 3,55 -
1110 3,27 22,2 x 305 7/8 x 12 22,2 932 627 970 665 60,5 31,8 147 309 4,01 -
1111 3,27 22,2 x 457 7/8 x 18 22,2 1 249 792 1 287 830 60,5 31,8 147 473 5,22 -
1112 4,54 25,4 x 152 1 x 6 25,4 666 514 711 559 76,2 36,3 165 157 4,36 -
1113 4,54 25,4 x 305 1 x 12 25,4 971 666 1 016 711 76,2 36,3 165 309 5,88 -
1114 4,54 25,4 x 457 1 x 18 25,4 1 276 819 1 321 864 76,2 36,3 165 462 7,4 -
1115 4,54 25,4 x 610 1 x 24 25,4 1 596 987 1 641 1 031 76,2 36,3 164 631 9,14 -
1116 6,89 31,8 x 305 1-1/4 x 12 31,8 1 070 766 1 127 822 91,2 46,2 216 306 9,01 -
1117 6,89 31,8 x 457 1-1/4 x 18 31,8 1 375 918 1 432 975 91,2 46,2 216 459 10,8 -
1118 6,89 31,8 x 610 1-1/4 x 24 31,8 1 694 1 085 1 751 1 141 91,2 46,2 216 625 12,6 -
1119 9,71 38,1 x 305 1-1/2 x 12 38,1 1 124 819 1 187 882 104 53,8 240 313 13 -
165411 9,71 38,1 x 457 1-1/2 x 18 38,1 1 428 971 1 492 1 035 104 53,8 240 465 15,4 -
11.501031733 9,71 38,1 x 610 1-1/2 x 24 38,1 1 749 1 139 1 813 1 203 104 53,8 240 633 17,9 -
1122 12,7 44,5 x 457 1-3/4 x 18 44,5 1 457 1 000 1 534 1 076 118 60,5 253 467 23 -
1123 12,7 44,5 x 610 1-3/4 x 24 44,5 1 762 1 153 1 838 1 229 118 60,5 253 619 26,4 -
165891 16,8 51,01 x 610 2 x 24 50,8 1 922 1 313 2 011 1 402 148 68,3 331 622 37,9 -
1125 27,2 63,5 x 610 2-1/2 x 24 63,5 2 011 1 402 2 113 1 503 165 79,2 350 625 67,4 -
11.501031859 34,01 70,0 x 610 2-3/4 x 24 69,9 2 066 1 456 2 180 1 571 178 82,6 383 626 79,1 -

*Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address
