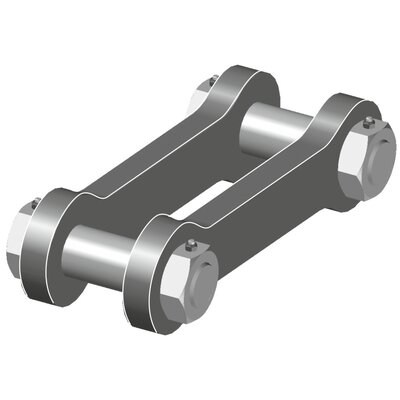

We deliver a quality GN H12 Shackle- Double Pin Connector. Body high tensile steel. Pin alloy steel quenched and tempered.

  • Material: Body high tensile steel. Pin alloy steel quenched and tempered.
  • Finish: Painted.
  • Safety factor: 5:1.
Select a row from the table below, then click the add to quote button
WLL
ton
MBL
ton
Thimble size
inch

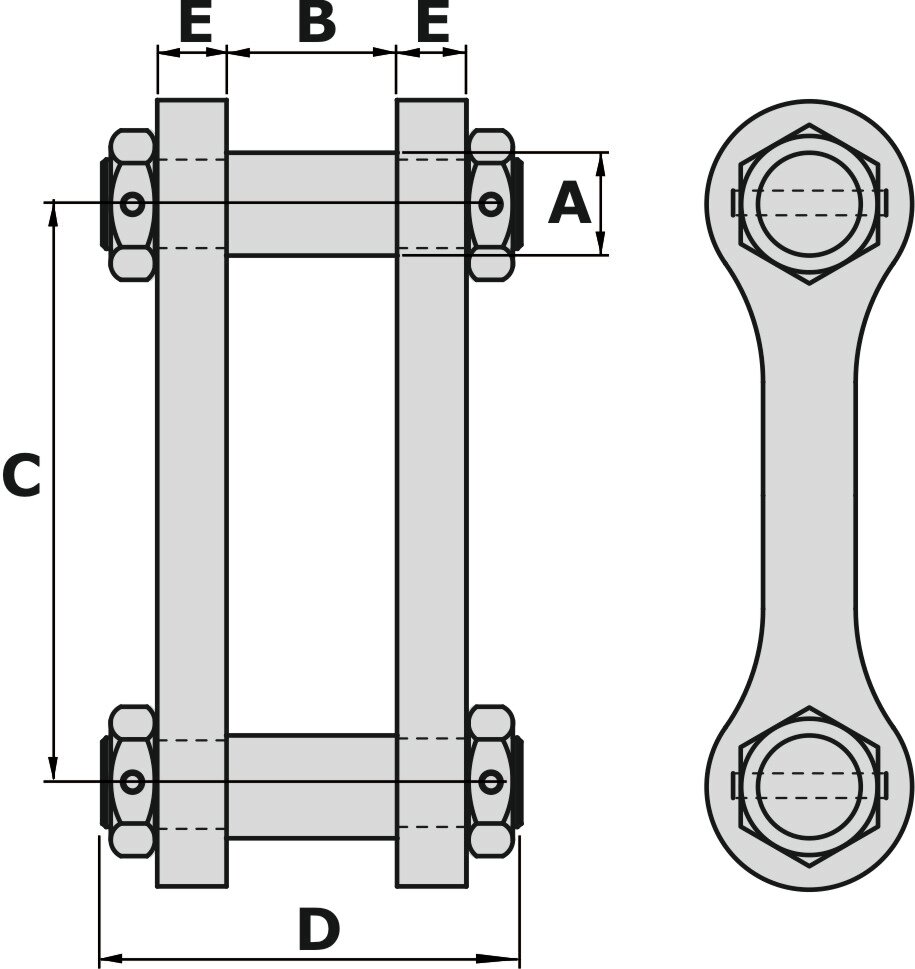

PL tons A
mm
B
mm
C
mm
D
mm
E
mm
Weight
kg
125 500 12" 300 110 170 540 510 90 211
125 500 15" 300 110 200 540 540 90 216
125 500 18" 300 110 225 710 565 90 244
125 500 21" 300 110 250 710 590 90 250
