Powertex
  • Cr6+ Free

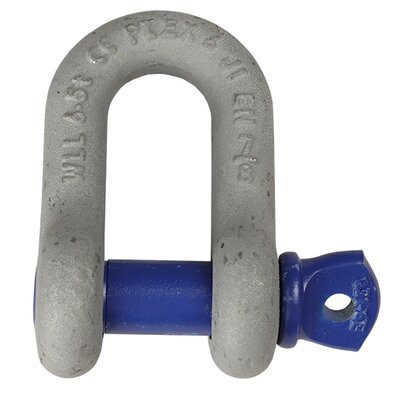

Dee type shackle PDSP is a high quality shackle intended to be used in demanding environments.

It is supplied with screw pin for quick and easy opening/closing.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVB Class 2, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and bolts marked with batch number for traceability
  • The body is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including screw pins are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Screw pins are additionally painted in blue for quick and easy detection as original POWERTEX parts
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with screw pin.
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized. Screw pin additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6
101_e_225mm
2929_lom.eps
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Nominal size
In.
Pin Ø d1 a*
mm
c*
mm
d
mm
d2
mm
H1
mm
Weight
kg
CAD
171319 1301 0.33 3/16 6,3 10 21,85 5 14,5 29 0.025
171261 1302 0.5 1/4 8 13 22 6,5 17,5 38 0.042
170700 1303 0.75 5/16 9,5 13,5 25,5 8 21 42,5 0.068
171262 1304 1 3/8 11,2 17 30,9 10 25 51,5 0.13
166649 1305 1.5 7/16 12,7 18,5 36,4 11 27 58 0.185
164065 1306 2 1/2 15,8 20,6 41,4 12,7 30,5 67 0.29
164060 1307 3.25 5/8 19 27 51 16 40 85 0.58
164066 1308 4.75 3/4 22 32 63 19 48 98,5 0.93
164485 1309 6.5 7/8 25 37 72 22 54 114 1.45
171263 1310 8.5 1 28 43,5 81,75 26,5 60 129,5 2.06
171264 1311 9.5 1-1/8 32 48 94 29 68 144 2.91
171265 1312 12 1-1/4 35 53 102 32 76 157 4.15
171266 1313 13.5 1-3/8 38 59 113,5 35 84 171 5.5
171267 1314 17 1-1/2 42 62 123 38 92 186 6.97
171268 1315 25 1-3/4 50 75 148 45 106 227 11.22
171269 1316 35 2 55 84 174,5 52 122 253 16.36
171320 1317 55 2-1/2 70 107 205,5 66 145 318 31
*Tolerance: +/- 5%
